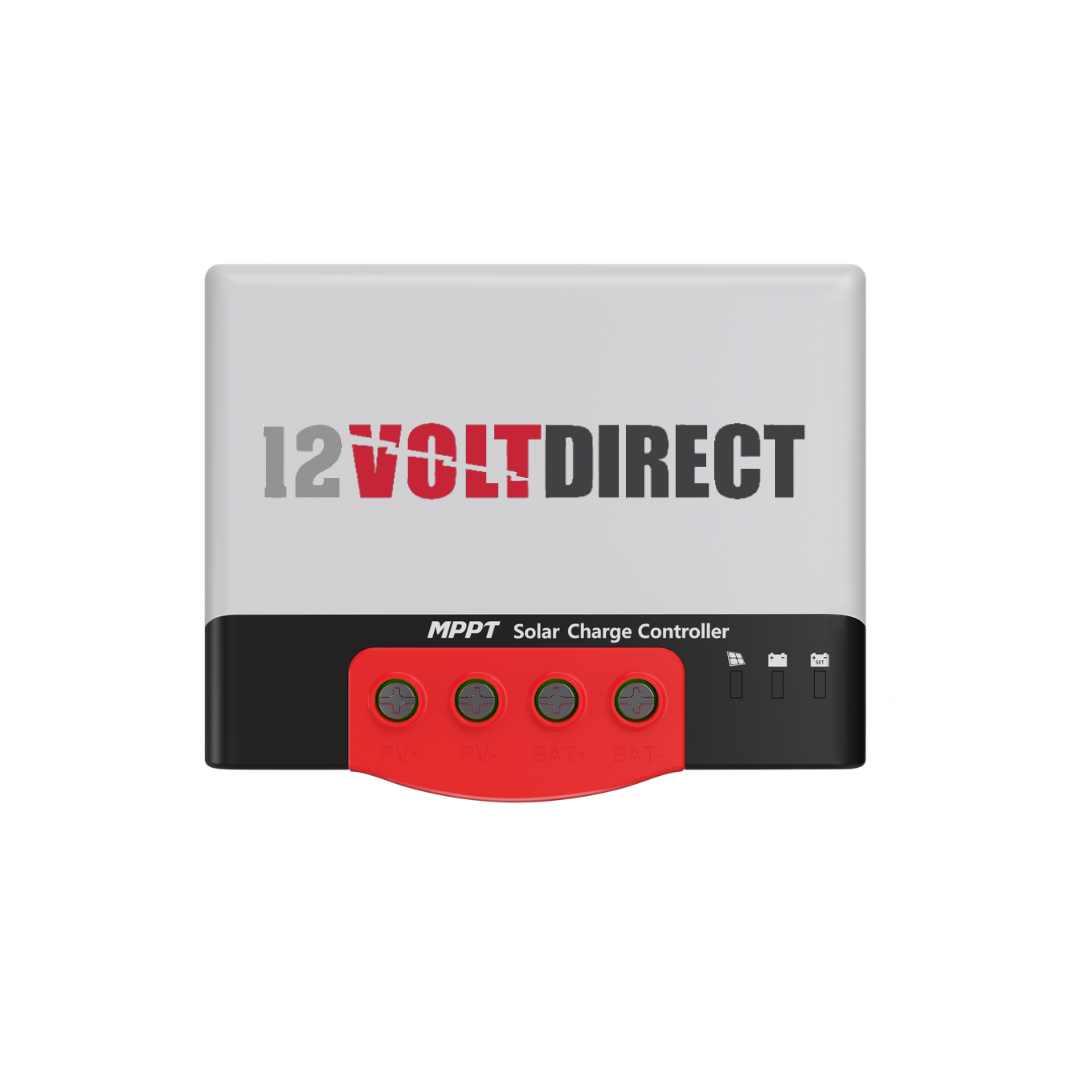

12 Volt Direct MPPT Solar Regulator 100V 20A Pro Series with Bluetooth

Brand: 12 Volt Direct

Part number: TVD-MPPT10020-PRO

Recommended retail price $169.00 inc GST

Login to see dealer pricing

DETAILS


Overview

Maximize Solar Efficiency With Cutting-Edge MPPT Technology!

The 12 Volt Direct MPPT Solar Regulator 100V 20A Pro Series w/ Bluetooth is a high-performance solar charge controller designed to maximize power efficiency in off-grid solar systems. With advanced Maximum Power Point Tracking (MPPT) technology, this regulator intelligently adjusts voltage and current levels to extract the highest possible energy from your solar panels, resulting in faster and more efficient battery charging.

Featuring a 100V input capacity and 20A output, this MPPT controller is perfect for RV solar systems, marine applications, off-grid cabins, and backup power solutions. Its Bluetooth connectivity allows seamless integration with a mobile app, giving users real-time access to system data, charging status, and performance optimization—all from their smartphone.

Designed with multi-stage charging algorithms, this unit extends battery lifespan and ensures stable power delivery to lithium, AGM, gel, and lead-acid batteries. Built-in safety features such as overvoltage, overcurrent, short-circuit, and overheating protection ensure reliable and secure operation. The rugged, weather-resistant construction makes it ideal for harsh outdoor environments.

Whether you're upgrading an existing solar setup or installing a new one, the 12 Volt Direct MPPT Solar Regulator 100V 20A Pro Series w/ Bluetooth is a smart, efficient, and durable choice for optimized solar energy management.

SPECIFICATIONS:

  • System Voltage: 12V/24V auto-select
  • Rated Charging Current: 20A
  • Max PV Open-Circuit Voltage: 100V (at 25°C); 92V (at -25°C)
  • Max PV Input Power: 260W (12V) / 520W (24V)
  • MPPT Efficiency: Up to 99.9%
  • Conversion Efficiency: ≤98%
  • Battery Compatibility: Sealed, gel, flooded, lithium
  • Communication Ports: TTL, CAN (RV-C), optional Bluetooth
  • Dimensions: 150 x 105.6 x 61.5 mm
  • Weight: 0.65 kg
  • Cooling: Natural air cooling
  • Safety Features: Overcharge, short-circuit, overheating protection

Features

12 Volt Direct MPPT Solar Regulator 100V 20A Pro Series w/ Bluetooth Brand: 12 Volt Direct SKU: TVD-MPPT10020-PRO

Product Details

SKU TVD-MPPT10020-PRO
Barcode # 9359968003525
Brand 12 Volt Direct
Type Solar Charger Controller
Current 50A
Input Voltage 100V
Shipping Weight 0.8000kg
Shipping Width 0.130m
Shipping Height 0.100m
Shipping Length 0.180m
Shipping Cubic 0.000150000m3

(TVD-MPPT10020-PRO)
