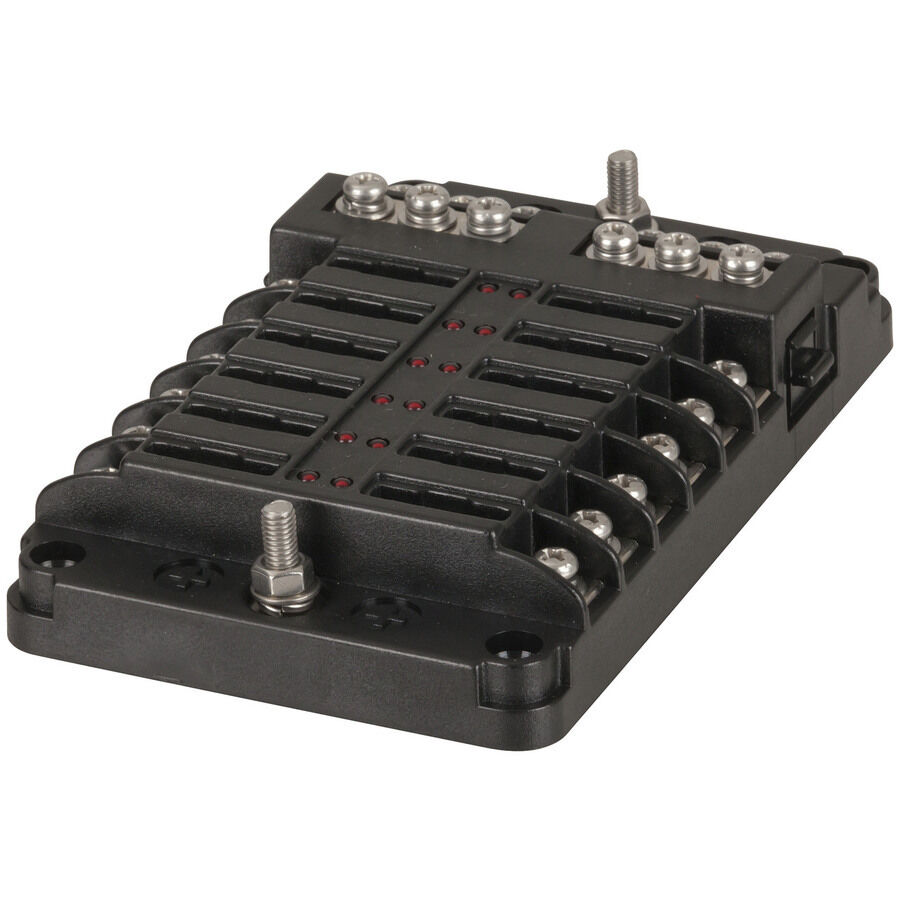

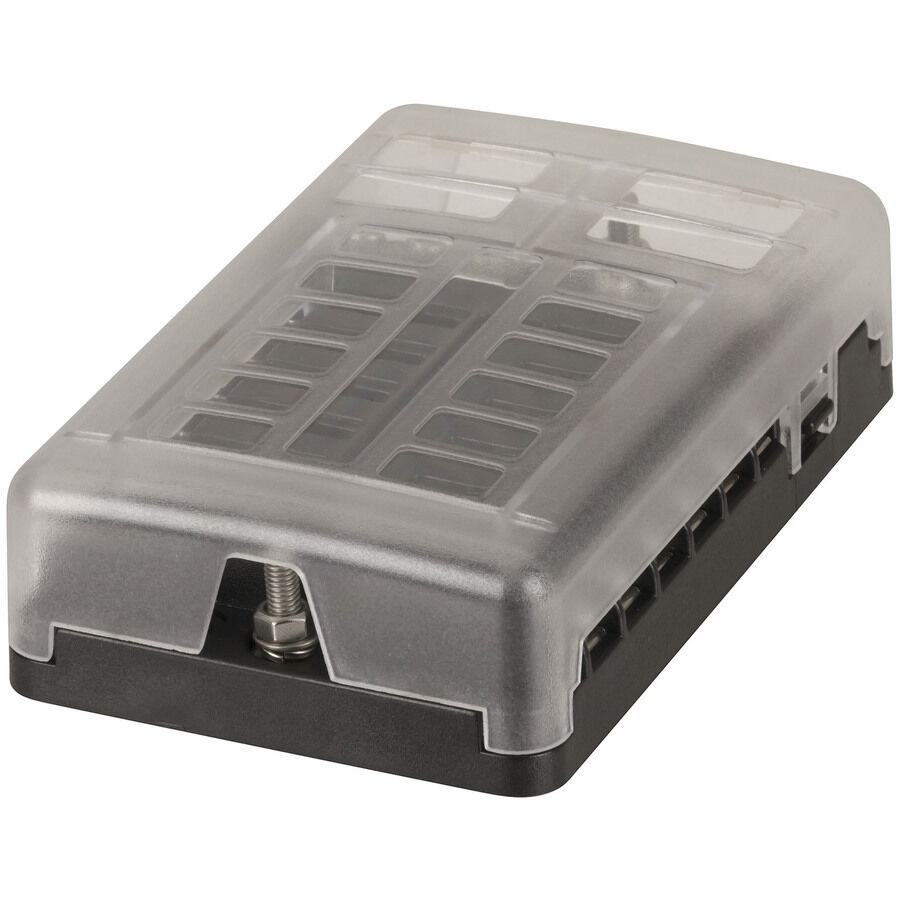

12 Way Fuse Block with Bus Bar

Please login or register to view pricing.


This versatile fuse block provides fused distribution of your positive terminals, as well as distribution for the negative wires. This is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30A, up to 100A combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.

Features:
- Up to 30A per output
- Red LED blown fuse indication
- Negative bus bar

Specifications:
Main Line:
 Terminal Rating: M5 Threaded Studs (32VDC, 100A Max.)
 Wire Size: #4-6 AWG
Single Line:
 Terminal Rating: M4 Threaded Studs (32VDC, 30A Max.)
 Wire Size: #12-16 AWG
Terminals: Nickel Plated Copper
Screws: Stainless Stee

(TVD-FB12B)

SKU TVD-FB12B
Barcode # 0744109316319
Brand 12 Volt Direct
Shipping Weight 0.1000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
