BLUETTI DC Hub for Charger 2 | 600W 12V/24V DC Outlets
Brand: Bluetti
Part number: A-SKB-HUBD1-0469
DETAILS
Overview
12V and 24V outlets for your Charger 2 setup

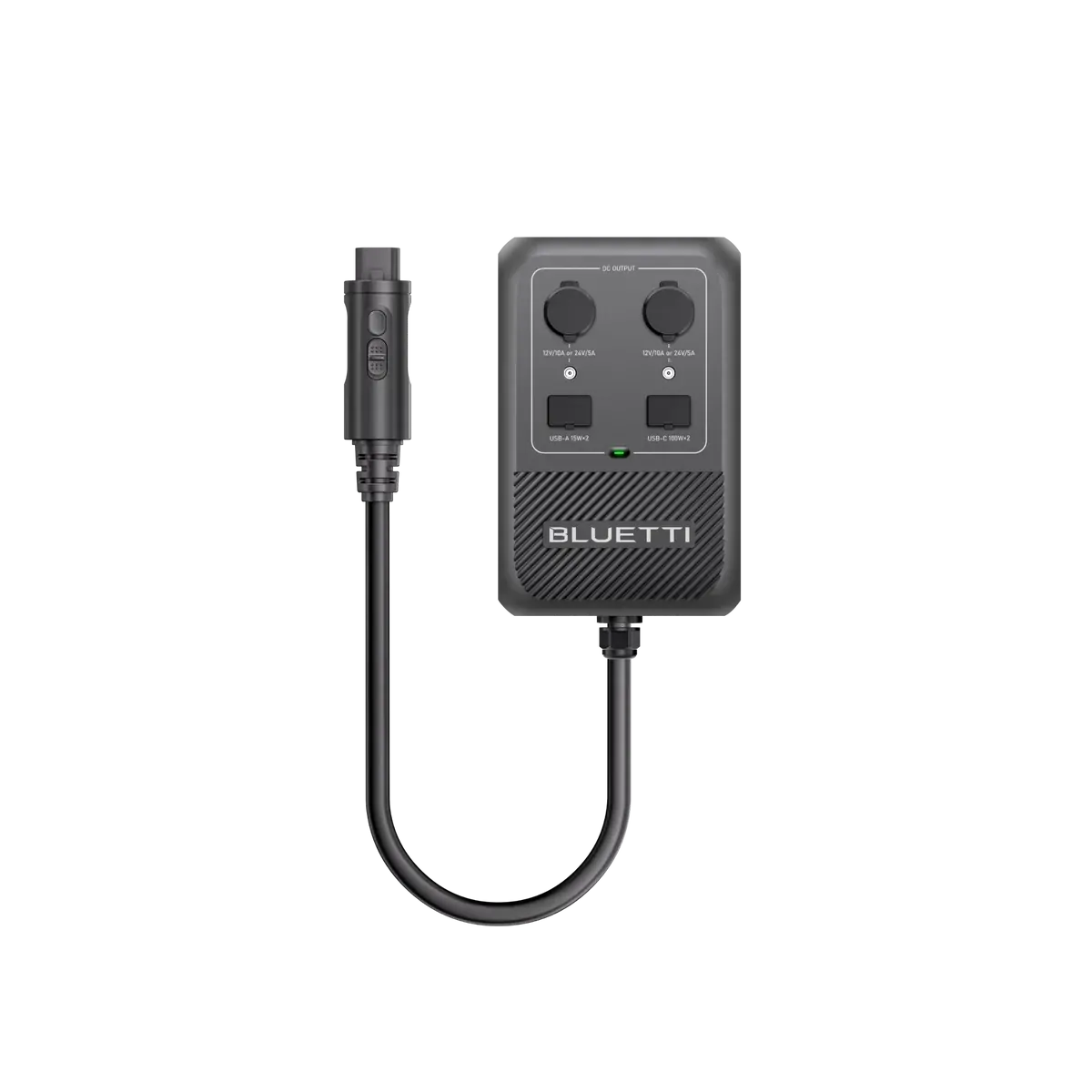

This DC Hub plugs into BLUETTI Charger 2 and gives you Anderson, cigarette lighter, DC5521, USB-C and USB-A outlets, up to 600W in total.
Flick the RV (Anderson), lighter and DC5521 outputs between 12V and 24V to suit your gear. Monitor voltage and power over Bluetooth in the BLUETTI app.
BLUETTI lists one compatible model: BLUETTI Charger 2. The hub runs from Charger 2, not from a power station directly. It is not the Hub D1 (that hub is for the Apex 300).
Why buy BLUETTI from us
Your local BLUETTI specialists
Buy your BLUETTI gear from a local team that knows what fits what.
✓A real shop in Sydney
We’re a bricks and mortar store, not a faceless online warehouse. You can visit us, or pick up your order from our Sydney shop.
✓Talk to a real person in Australia
Call or message our Sydney team (details on our contact page). You’ll speak to someone local who knows BLUETTI, not an overseas call centre.
✓Shipped Australia-wide
We send BLUETTI orders to every state and territory, from the city to the bush.
✓Checked to fit your unit
Tell us which BLUETTI you have and we’ll confirm this fits before it ships.
✓Local support after you buy
Questions about setting it up, charging or getting the most from your BLUETTI? Our team here in Australia is happy to help.
✓The whole setup in one place
We stock the BLUETTI power stations, panels, chargers, cables and mounting trays that work together, so you can get everything from one store.
Ask us a questionMake us your first stop for BLUETTI.
Outputs
Run the camp from one box
Bluetti says the hub powers RV appliances, diesel heaters, laptops and electronics.
- ✓50A Anderson (RV) port
- ✓Cigarette lighter outlet
- ✓DC5521 outlet
- ✓USB-C and USB-A charging
- ✓12V/24V switch on the RV, lighter and DC5521 ports
Engine off?
Keep it running when you park
With only the engine and solar feeding Charger 2, the hub depends on them. Connect a BLUETTI battery (such as a B300K) to Charger 2’s BAT port and the DC Hub keeps running with the engine off.
The 600W is shared across all the hub’s ports.
Which hub?
DC Hub vs Hub D1
BLUETTI makes two similar-looking hubs. This one is for Charger 2. Hub D1 is for the Apex 300 (and B300K/B500K) and does not connect directly to Charger 2.
Not sure which you need? contact our team.
Frequently asked questions
What does the DC Hub work with?
BLUETTI lists one compatible model: BLUETTI Charger 2. The hub runs from Charger 2, not from a power station directly. It is not the Hub D1 (that hub is for the Apex 300).
How much power can it supply?
600W in total, shared across its Anderson, lighter, DC5521, USB-C and USB-A ports.
Can I run 24V gear?
Yes. The RV (Anderson), cigarette lighter and DC5521 ports switch between 12V and 24V.
Will it work with the engine off?
Yes, if a BLUETTI battery pack is connected to Charger 2’s BAT port. Without one, it relies on the alternator and solar.
Is this the same as Hub D1?
No. Hub D1 is the Apex 300 hub. This DC Hub is made for Charger 2.
Still got a question? Our Sydney team is happy to help. Get in touch and you’ll talk to a real person in Australia.
Features
- ✓Made for BLUETTI Charger 2
- ✓600W total DC output
- ✓50A Anderson (RV) port
- ✓Cigarette lighter and DC5521 outlets
- ✓USB-C and USB-A charging
- ✓12V/24V switchable on RV, lighter and DC5521 ports
- ✓Bluetooth monitoring in the BLUETTI app
- ✓Keeps running engine-off with a battery on Charger 2’s BAT port
Make it a complete setup
Pairs well with
BLUETTI Charger 2: the 1,200W alternator and solar charger this hub runs from.
B300K: Bluetti sells Charger 2 + B300K + DC Hub so the hub runs with the engine off.
Specifications
Output
| Total DC output | 600W (shared across all ports) |
| Ports | 50A Anderson (RV), cigarette lighter, DC5521, USB-C (PD 3.0), USB-A |
| Voltage | 12V/24V switchable on RV, cigarette lighter and DC5521 ports |
General
| Compatible with | BLUETTI Charger 2 |
| App | Bluetooth, BLUETTI app |
Product Details
| SKU | A-SKB-HUBD1-0469 |
| Brand | Bluetti |
| Compatible With | BLUETTI Charger 2 |
| Total Dc Output | 600W |
| Output Voltage | 12V/24V switchable |
| Shipping Weight | 5.4300kg |
| Shipping Width | 0.220m |
| Shipping Height | 0.260m |
| Shipping Length | 0.380m |
