Mazda BT-50 MY21 August 2020 to 2024 High Beam Piggy Back Adapter

Brand: Perception Lighting

Part number: PIGGY-BT50-MY21

Recommended retail price $29.95 inc GST

Login to see dealer pricing

DETAILS


Overview

Made for the Mazda BT-50 TF,
plug in and go.

Gives your driving light or light bar harness a clean high beam signal, so your lights come on with your high beams. It plugs in line with the factory wiring, so there is no cutting, splicing or soldering, and it unplugs again whenever you like.

Designed to work with our Perception Lighting driving light wiring harnesses.

Mazda BT-50 TF

Vehicle shown for reference only. Photo: RL GNZLZ, CC BY-SA 2.0, via Wikimedia Commons, resized.

6-PinFactory Connector
2-PinHarness Plug
No CuttingPlug and Play
AdapterHarness Sold Separately

Connector check

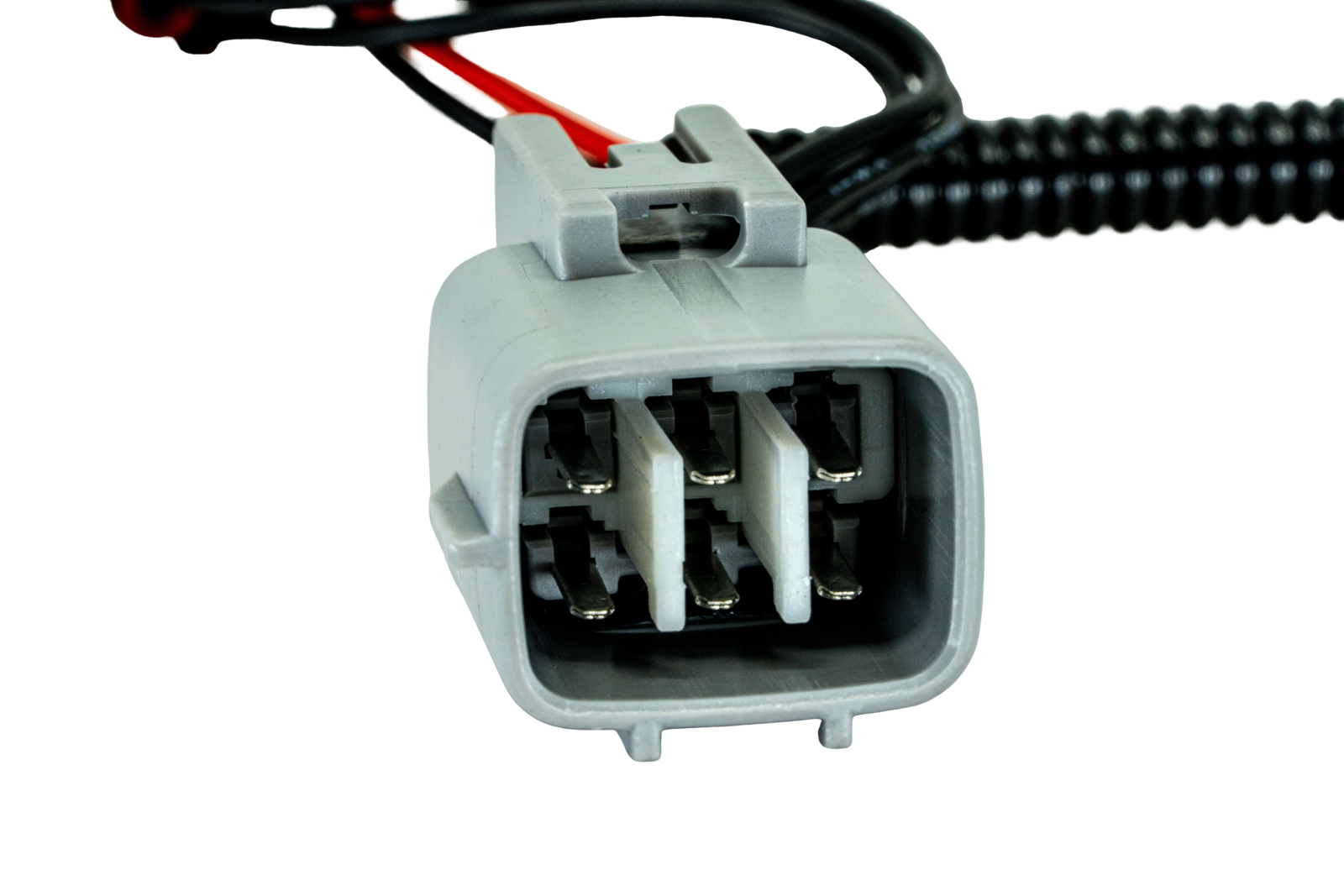

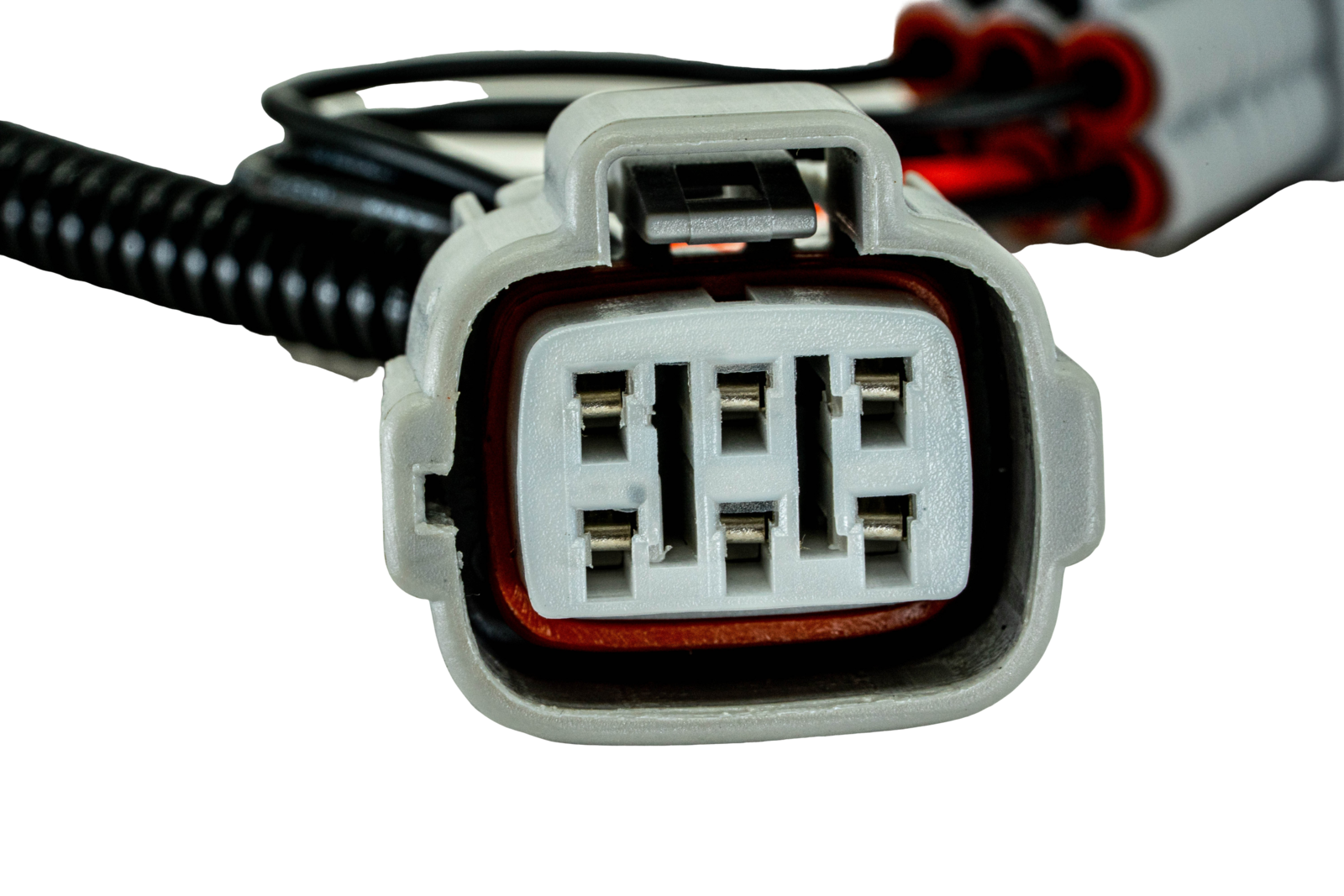

Plugs in line with the factory 6-pin headlight connector.

Check before you buy: Unplug the connector at the back of your headlight and count the pins. It should have 6 pins. Not sure? Ask our team.

Compatibility

  • ✓Mazda BT-50 (August 2020 to 2024)
  • ✓Factory LED headlights only

Not suitable for:

  • ✕BT-50 from 2025 (use PIGGY-DMAX-MY24)
  • ✕BT-50 before August 2020

Tech specs

Connection6-pin factory headlight connector

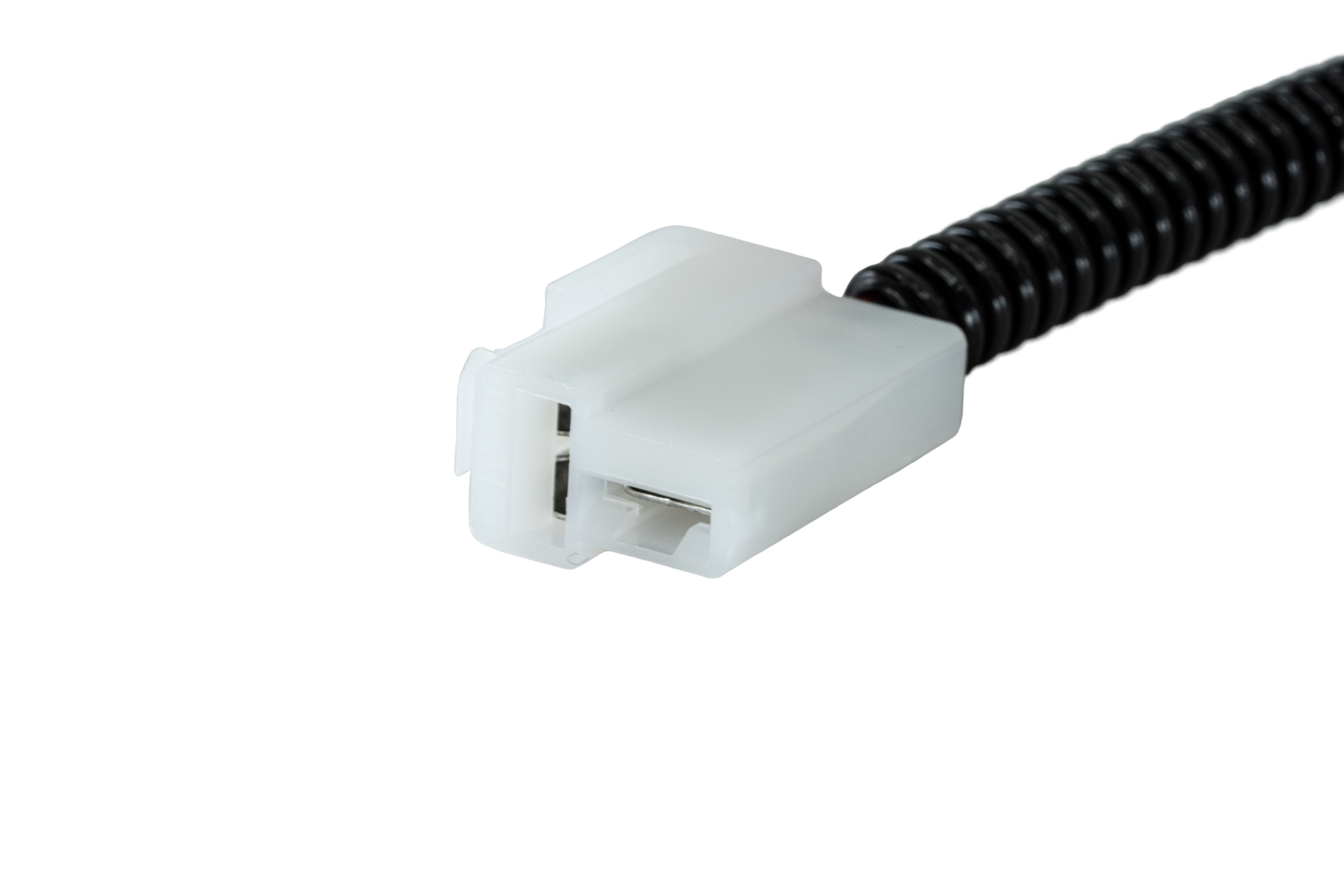

Harness Plug2-pin, suits our driving light harnesses
SuitsMazda BT-50 (August 2020 to 2024)
Factory LED headlights only
InstallPlug and play, no cutting or soldering
BrandPerception Lighting

What’s included

Mazda BT-50 MY21 August 2020 to April 2024 High Beam Piggy Back Adapter

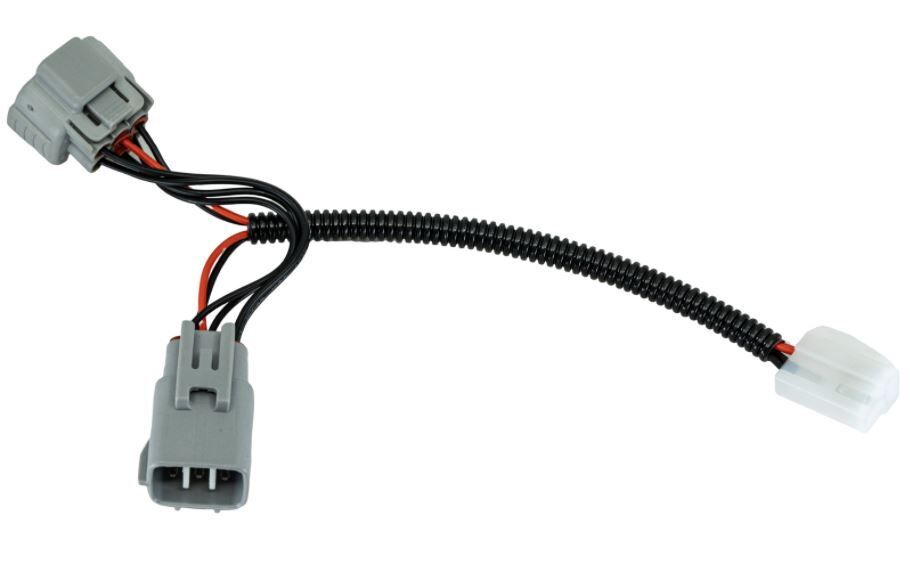

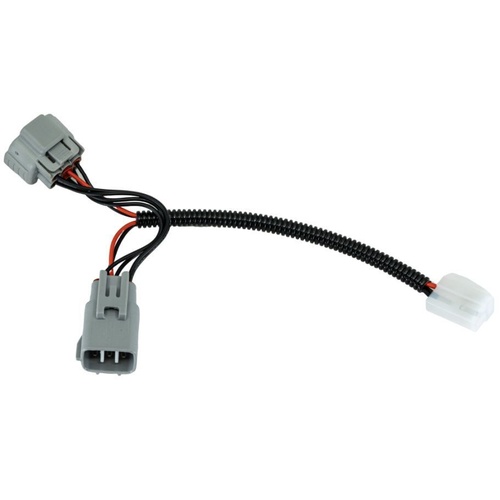

  • ✓1 x high beam piggy back adapter

Driving light wiring harness, lights and switch are not included.

Simple installation

1Unplug

Unplug the factory connector from the back of the headlight.

2Plug in

Plug the adapter in between the headlight and the factory plug.

3Connect

Plug your driving light harness into the adapter, then test with your high beams.

Not sure what you need?

Tell us your vehicle, build date and headlight type and we will check the right adapter with you before you buy.

Contact our team

Features

Mazda BT-50 MY21 August 2020 to 2024 High Beam Piggy Back Adapter Brand: Perception Lighting SKU: PIGGY-BT50-MY21

Product Details

SKU PIGGY-BT50-MY21
Barcode # 0769807742833
Brand Perception Lighting
Shipping Weight 0.1000kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.001235000m3

(PIGGY-BT50-MY21)

Perception Lighting has spent more than a decade focused on one thing: lighting and wiring that work properly on Australian 4WDs, caravans and campers. Its range is built around the problems installers actually face, with plug and play wiring harnesses and high beam piggy back adapters made for sp...
