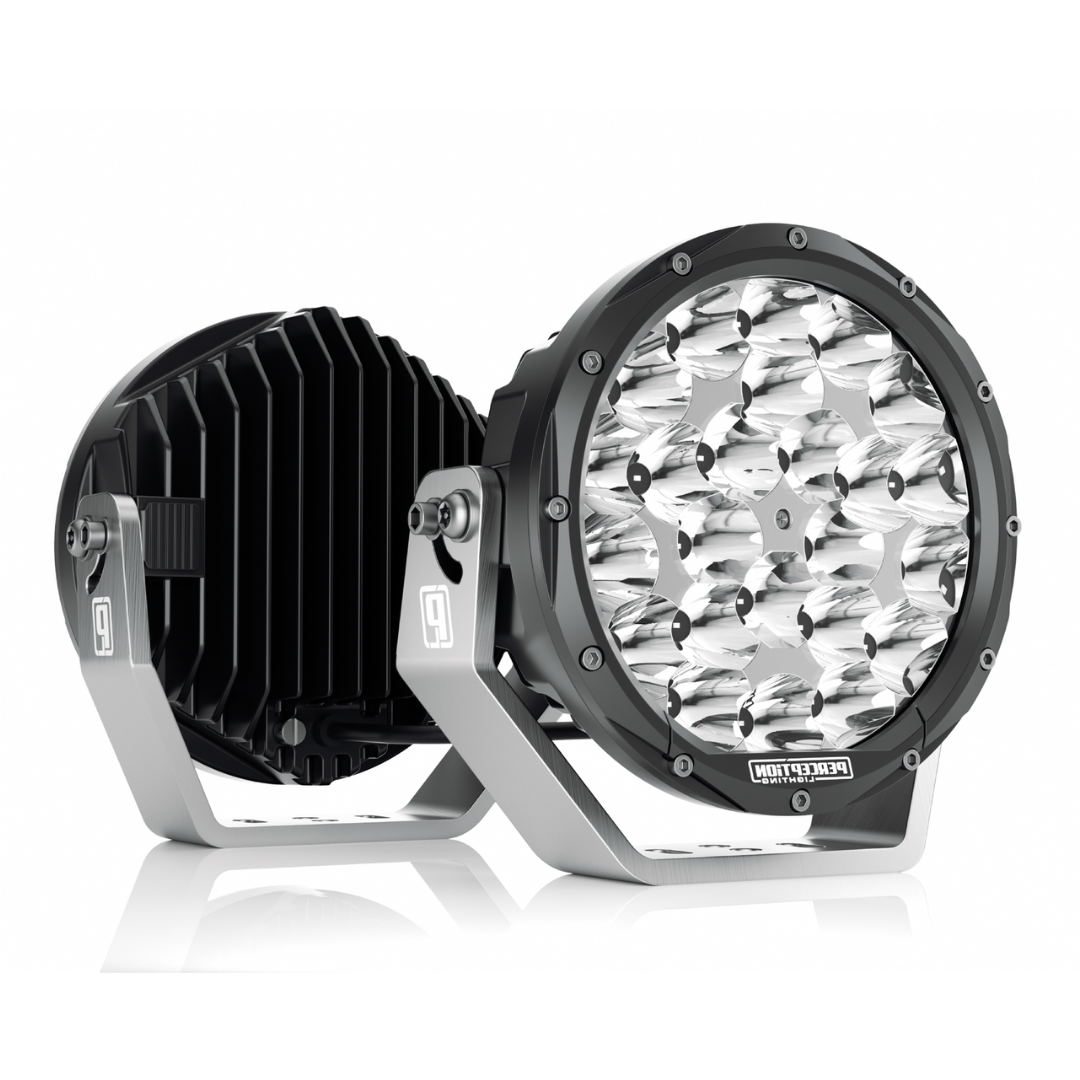

Perception Lighting Apex 7" Performance LED Driving Lights (Pair)

Brand: Perception Lighting

Part number: APEX-7

Recommended retail price $529.00 inc GST

Login to see dealer pricing

DETAILS


Overview

Long range light, built for Aussie tracks

The Apex 7" is a pair of 185 mm round LED driving lights tuned for distance. A hyper spot reflector puts 1 lux of light 1,480 m down the road, so you see roos, cattle and bends well before you reach them.

33 Osram high-output LEDs per light, a built-in backlit DRL, 9-32 V input, IP69K sealing and 316 stainless steel brackets make them a set-and-forget upgrade for touring rigs, work utes and trucks.

Perception Lighting Apex 7
25,660Raw Lumens Per Pair
1,480 mTo 1 Lux
IP69KDust and Water Sealed
185 mmBezel Diameter

High powered

1,480 m of usable light

The Apex 7" emits 25,660 raw lumens per pair, and the hyper spot reflector focuses it into a long, tight beam: 1 lux at 1,480 m and still 0.25 lux at 2,960 m.

  • ✓Reach: spot animals and road signs early at highway speed
  • ✓Colour: 5700K daylight white is easy on the eyes on long night drives
  • ✓Pair it: add a light bar for side spread on tighter tracks

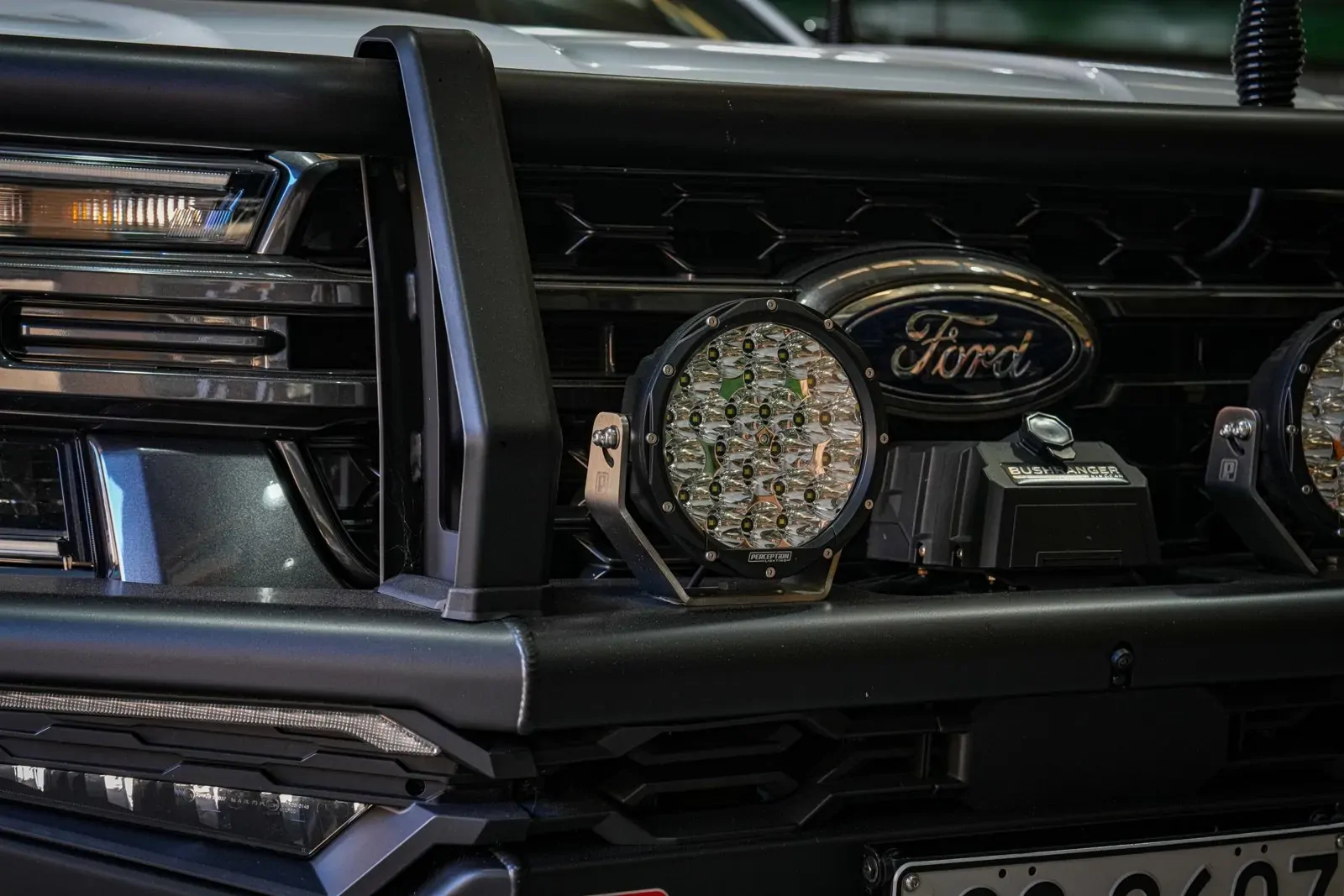

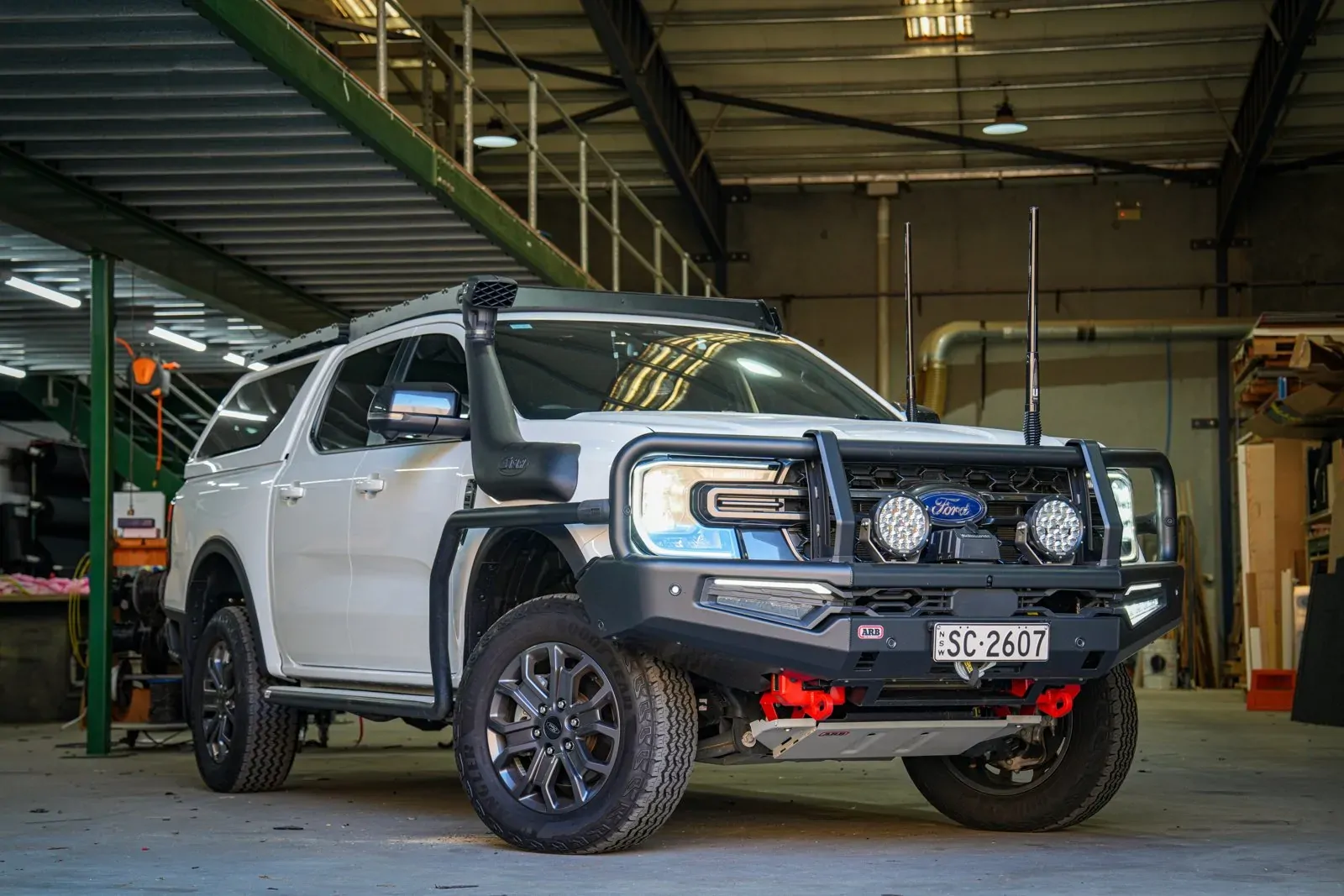

Ford Ranger with a pair of Apex 7 driving lights on an ARB bull bar

Built for the long haul

Apex 7 lux diagram: 1 lux at 1480 m and 0.25 lux at 2960 m

Sealed, quiet and tough

The Apex 7" is IP69K rated: fully dust tight, waterproof to 3 m and safe to clean with a high-pressure, high-temperature wash. A Gore breather stops condensation forming behind the lens, and CISPR Class 3 certification means no hiss on your UHF or radio.

  • ✓Lens: GE Lexan polycarbonate that will not crack or shatter
  • ✓Finish: Dupont powdercoat so the colour won’t fade
  • ✓Power: 9-32 V DC input suits 12 V and 24 V vehicles

Mounting

They're not going anywhere

Each light sits on an extra heavy-duty 5 mm 316 marine-grade stainless steel bracket with a three-point mount, so it holds its aim on rough roads. Torx anti-theft security bolts make them harder to pinch.

Size: 185 mm across, 196.5 mm tall and 97 mm deep including the bracket.

Apex 7 dimensions: 185 mm wide, 196.5 mm tall, 97 mm deep

Daytime running light

Backlit DRL built in

A backlit daytime running light glows around each Apex 7" reflector, so your vehicle is easier for other road users to see by day, without switching on the driving beams.

Want a different look? Interchangeable colour inserts are sold separately.

Frequently asked questions

Is the Apex 7" sold as a pair?

Yes. You get two lights, two 5 mm stainless brackets, two sets of Deutsch plugs and 316 stainless mounting hardware.

How far do they reach?

1 lux at 1,480 m and 0.25 lux at 2,960 m, measured for the pair.

Will they run on 24 V?

Yes. The 9-32 V DC input suits 12 V and 24 V vehicles, including trucks.

Do they have a daytime running light?

Yes. Each light has a backlit DRL built in.

Will they interfere with my UHF?

No. They are CISPR Class 3 certified for low radio interference.

Do I need a wiring harness?

Yes, a driving light harness with a relay and switch is needed and is sold separately. If you are unsure what suits your vehicle, please contact our team.

Which Apex should I choose?

For the longest reach, the round Apex 7" and 8.5" use a spot reflector. For the widest light on tight tracks, the Apex 180 spreads its beam across 180°. For a compact square light with daytime running lights, choose the Apex Quad. Also in the range: the Apex 8.5" (220 mm, 1,786 m), the Apex 180 (215 mm, 180° spread) and the Apex Quad (188 x 151 mm, DRL built in).

What warranty do they have?

10 years, backed by Perception Lighting in Australia. If you ever have a problem, please contact our team.

Do you supply fleet or bulk orders?

Yes. Please contact our team for a quote.

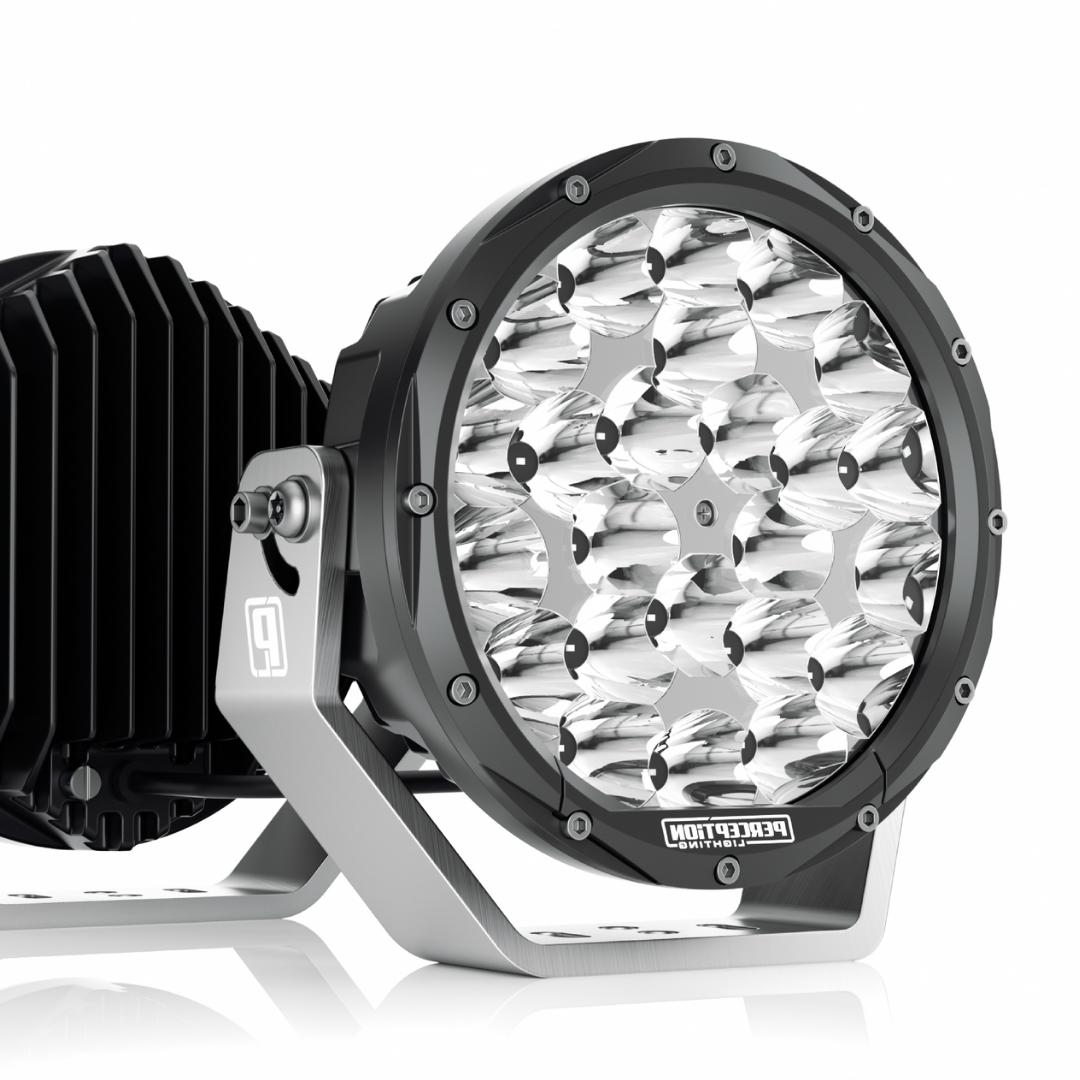

Close-up of an Apex 7 driving light on its stainless bracket



Features

  • ✓25,660 raw lumens (16,106 effective lumens) per pair
  • ✓1 lux at 1,480 m and 0.25 lux at 2,960 m
  • ✓33 genuine Osram high-output LEDs per light, 5700K
  • ✓Backlit daytime running light (DRL) built in
  • ✓Multi-volt 9-32 V DC input for cars and trucks
  • ✓IP69K: dust tight and high-pressure waterproof to 3 m
  • ✓Torx anti-theft security bolts on 5 mm 316 stainless brackets
  • ✓Gore breather, Dupont powdercoat and Deutsch plugs

Specifications

Performance

Light output 25,660 raw lumens / 16,106 effective lumens (pair)
Beam distance 1 lux at 1,480 m; 0.25 lux at 2,960 m
Beam pattern Spot (precision-engineered hyper spot reflector)
LEDs 33 x genuine Osram high-output LEDs per light
Colour temperature 5700K
Daytime running light Yes, backlit DRL built in
Power draw 134 W / 10.1 A at 13.2 V DC
Input voltage 9-32 V DC (12 V and 24 V vehicles)

Build

Diameter 185 mm bezel (180 mm face)
Height 196.5 mm including bracket
Depth 97 mm including bracket (75 mm housing)
Housing Aluminium with Dupont powdercoat (no colour fade)
Lens GE Lexan polycarbonate (will not crack or shatter)
Bracket 5 mm 316 marine-grade stainless steel, three-point mount, Torx anti-theft security bolts
Waterproof rating IP69K, waterproof to 3 m
Breather Gore breather against condensation
Thermal Inbuilt thermal management
EMC CISPR Class 3
Connector Deutsch
Colour inserts Interchangeable, sold separately
Sold as Pair
Warranty 10 years (Perception Lighting Australian warranty)

What's Included

  • 2 x Perception Lighting Apex 7" Performance LED driving lights
  • 2 x 5 mm 316 stainless steel brackets
  • 2 x sets of Deutsch plugs
  • 316 stainless steel mounting hardware

Product Details

SKU APEX-7
Barcode # 9359968000111
Brand Perception Lighting
Type Lightbars
Type Driving Lights
Shipping Weight 5.8000kg
Shipping Width 0.300m
Shipping Height 0.120m
Shipping Length 0.480m
Shipping Cubic 0.017280000m3

(APEX-7)
