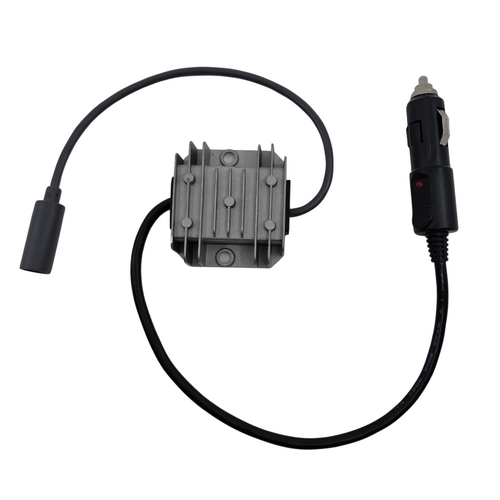

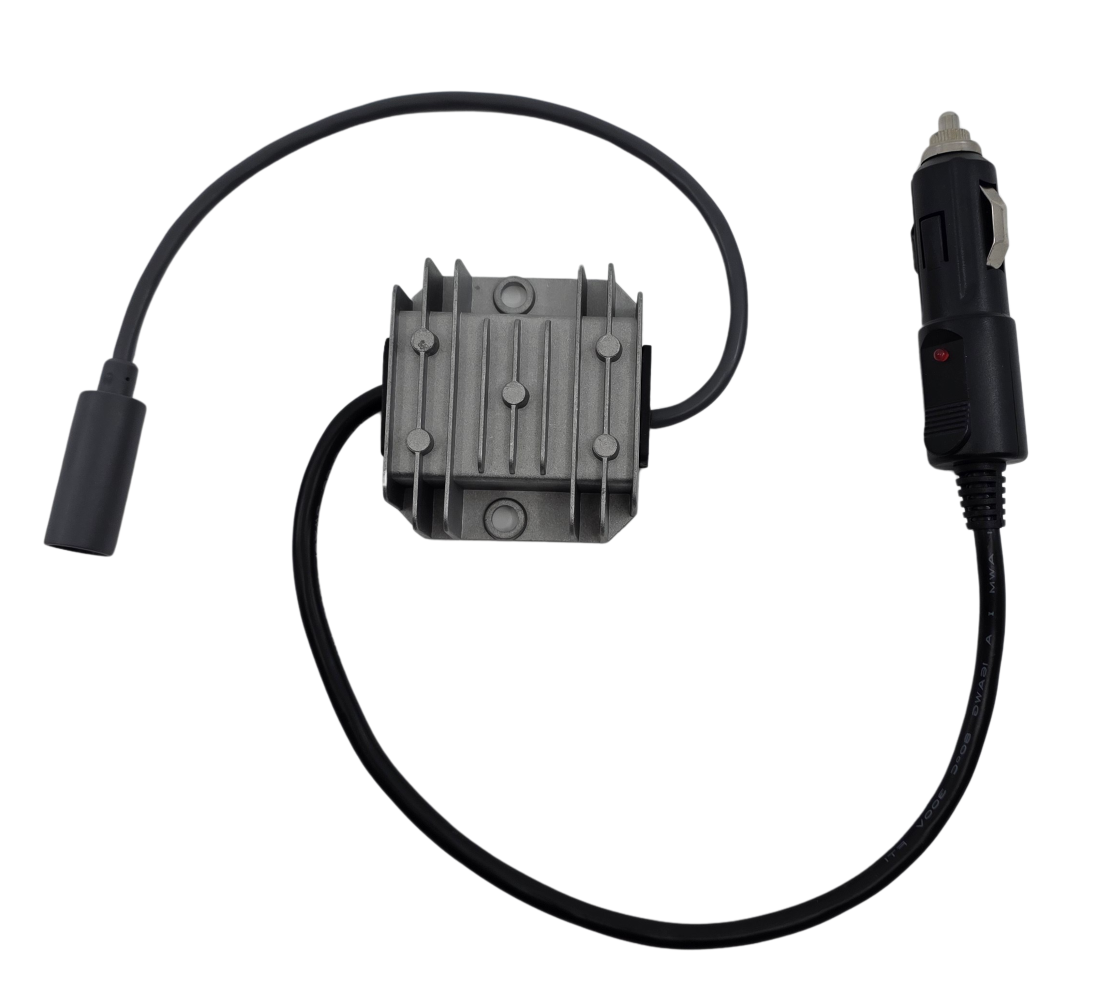

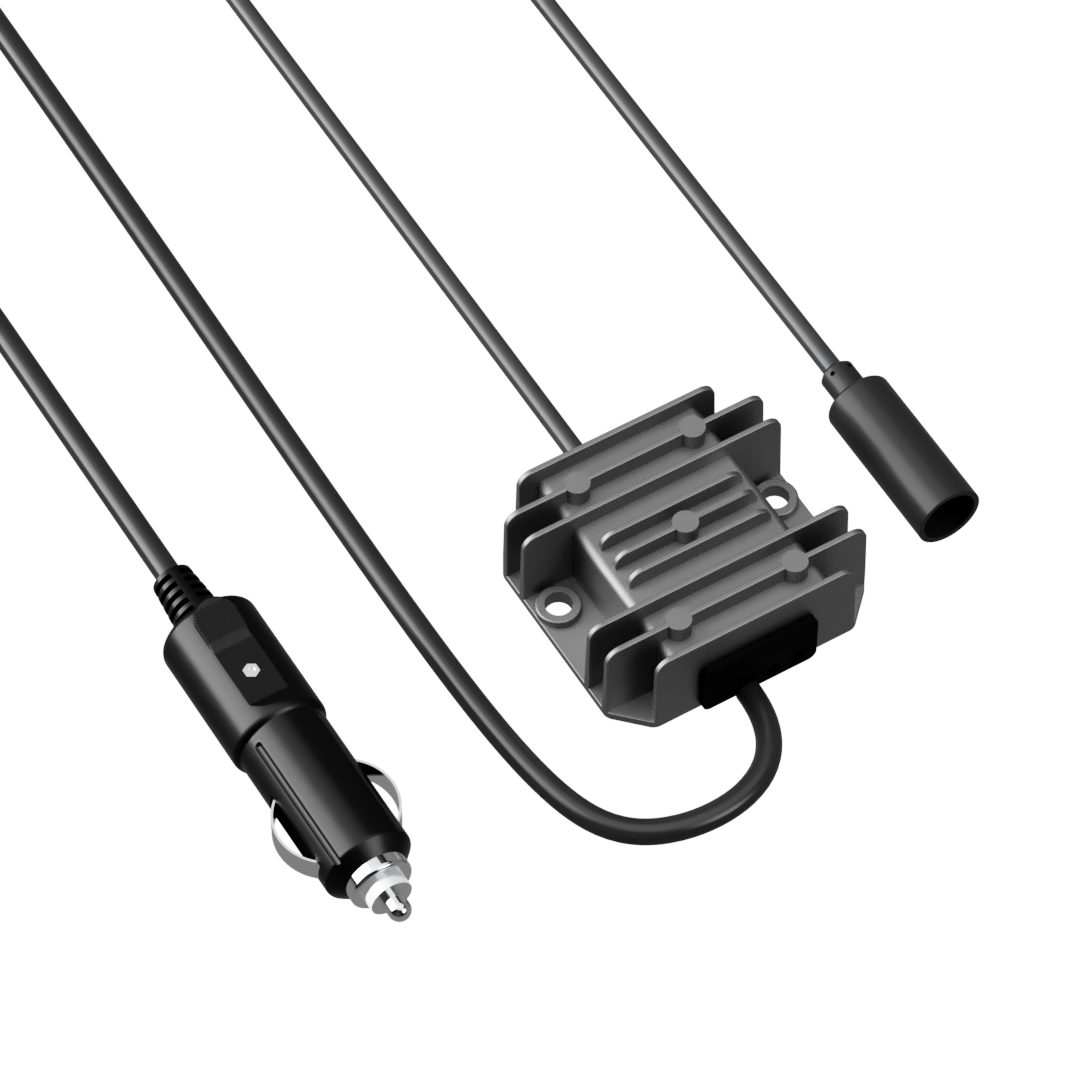

Starlink Mini 12V to 30V Step Up Voltage Booster with Cigarette Plug
Brand: 12 Volt Direct
Part number: TVD-SL29
DETAILS
Overview
Run it from any 12V socket
Plug into the cigarette socket in your car, ute or caravan and get a steady 30V to your Starlink Mini, even when the socket voltage sags.
No wiring, no soldering. Just plug in and get online.
Video
Why you need it
Car sockets sag. This fixes it
Starlink Mini needs at least 12V to run. A 12V system can easily sag below that on a long cable run, with a flat-ish battery, in the cold or under load, and the Mini drops out or will not start. A step-up booster turns that 9–15V into a steady 30V, so the Mini always gets what it needs.
Cigarette sockets are especially prone to this, because of thin factory wiring and long runs from the battery.

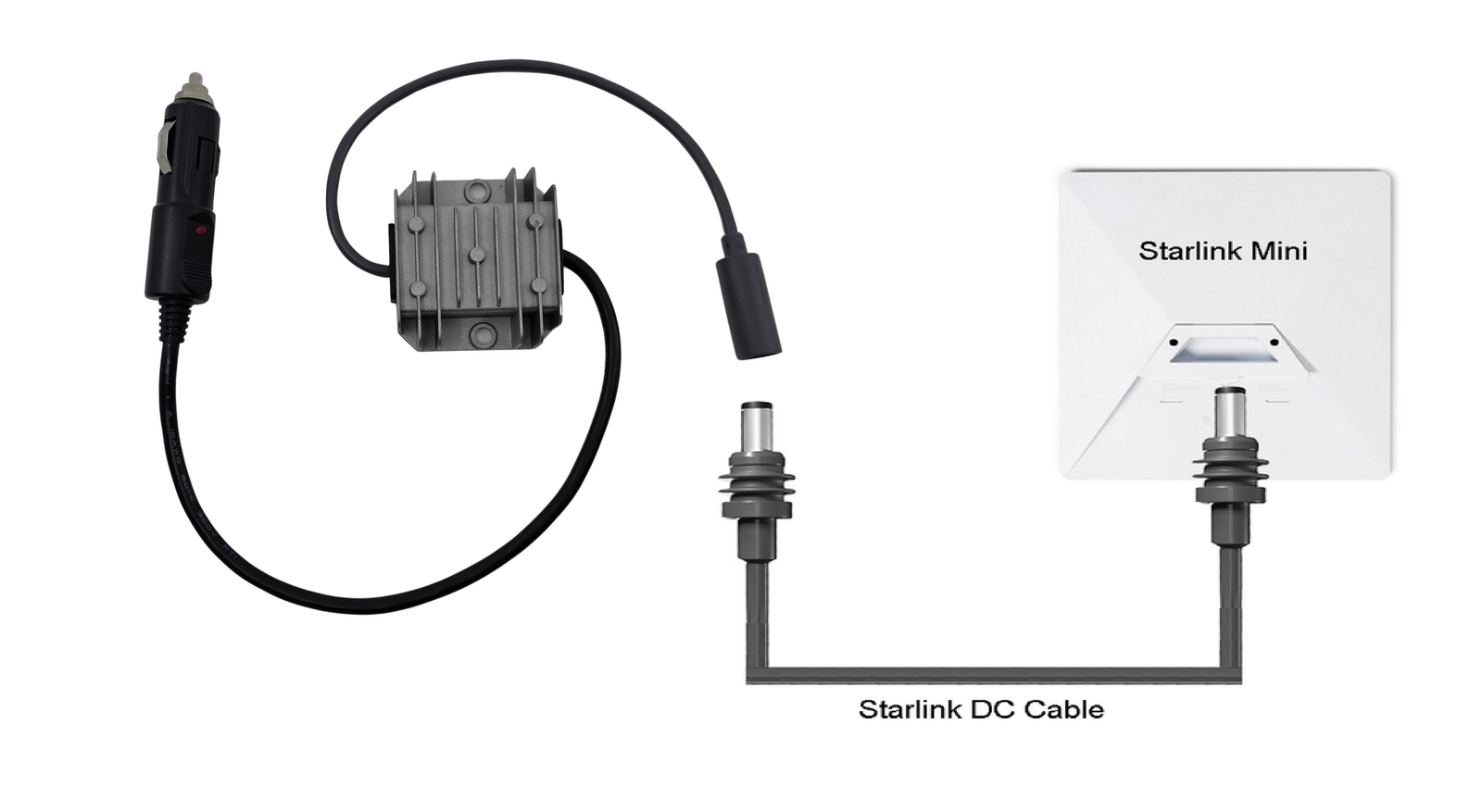

Plug and play
Online in three steps
- ✓Plug the booster into any 12V accessory socket
- ✓Plug the Mini's DC cable into the booster's barrel socket
- ✓Tuck the booster somewhere ventilated and get online
Swap the Mini's 15m cable for our 3m DC cable for a neat in-car setup.
Complete your setup
Frequently asked questions
Does it work in a 24V truck?
No. The input is 9–15V DC, so it suits 12V sockets only.
Can I hardwire it instead?
For a fixed install we recommend TVD-SL28, which has an Anderson plug input.
Which cable connects it to the Mini?
The Mini's own DC cable, or our 3m or 5m DC cable for a shorter run.
Will it drain my car battery?
The Mini uses about 25–40W. Unplug it when the engine is off for long periods, unless you have a second battery.
Is it waterproof?
Yes. The aluminium case is fully silicone potted and rated IP67.
What's the warranty?
12 months against manufacturing faults. Contact our team if you have any trouble.
Features
- ✓Steps 9–15V up to a regulated 30V DC
- ✓90W (3A) output, preset for Starlink Mini
- ✓12V cigarette plug with inline 10A fuse
- ✓Barrel socket output for the Mini's DC cable
- ✓IP67 silicone-potted die-cast aluminium case
- ✓Reverse polarity, over-current, short circuit and thermal protection
Specifications
Booster
| Input voltage | 9–15V DC |
| Output voltage | 30V DC regulated |
| Output power | 90W (3A) |
| Efficiency | 92% or better at full load |
| Input connector | 12V cigarette plug with inline 10A fuse |
| Output connector | Barrel socket to suit the Starlink Mini DC cable |

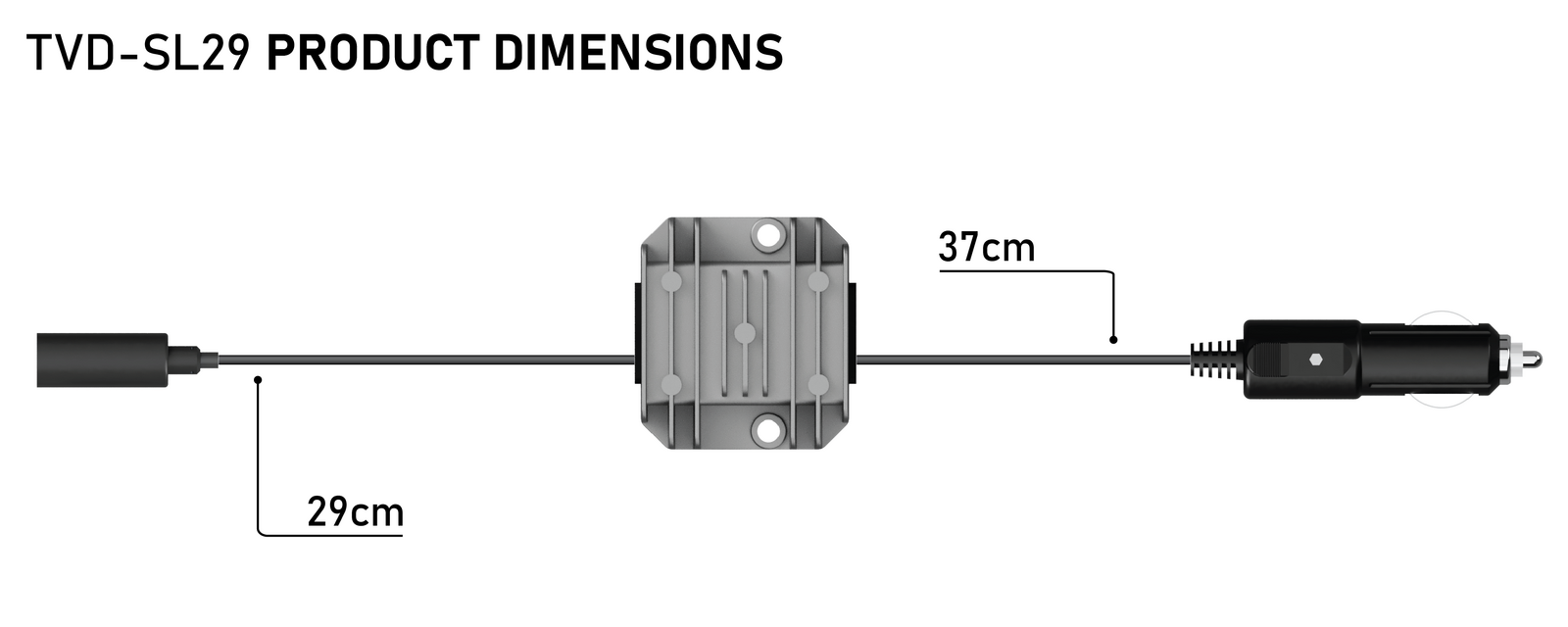

| Lead lengths | Input approx. 37cm, output approx. 29cm |
| Housing | Die-cast aluminium, 60 x 60mm, silicone potted |
| Rating | IP67 |
| Protection | Reverse polarity, over-current, short circuit, thermal shutdown |
| Warranty | 12 months |
What's Included
- 1 x 12V to 30V step-up booster with cigarette plug lead and inline 10A fuse
- 1 x Output lead with barrel socket
Product Details
| SKU | TVD-SL29 |
| Barcode # | 9359968003204 |
| Brand | 12 Volt Direct |
| Shipping Weight | 0.1900kg |
| Shipping Width | 0.140m |
| Shipping Height | 0.050m |
| Shipping Length | 0.190m |
| Shipping Cubic | 0.001547000m3 |
(TVD-SL29)
