Starlink Mini Waterproof Boosted Power Outlet - 12V/24V to 30V
Part number: TVD-SL63
DETAILS
Boosted outlet
A 30V Starlink Mini outlet, built in
This waterproof outlet has a 30V booster built into its body. Wire it to your 12V or 24V battery system, mount it through a panel and plug in your Starlink Mini.
No 240V inverter, no AC power supply, no separate booster box. Ideal for caravans, motorhomes and canopies.
Why 30V
Steady power, long cable or not
Standard DC sockets can sag on long cables or when the battery voltage moves around, and the Starlink Mini drops out. This outlet boosts your 12V or 24V supply to a regulated 30V right at the panel, so the Mini gets what it needs.
- ✓Works with the Mini's cable, up to 15m
- ✓Runs on 12V or 24V systems
- ✓Fewer conversion losses than an inverter
Installation
Drill, mount, wire
- ✓Drill a 27mm hole in the panel
- ✓Fit the threaded body and tighten it firmly
- ✓Wire it to a fused 12V or 24V supply, with correct polarity and suitable cable
- ✓Seal around it with exterior-grade sealant for outside installs
Always use a suitably rated fuse. The IP67 rating applies with the cap fitted and the panel properly sealed. If you are unsure about cable size or fusing, use a professional installer.
Complete your setup
Goes well with
10m DC5521 lead for longer camp and caravan runs.
$49.95 · View
Neat external DC socket for the caravan wall.
$49.95 · View
For battery boxes and Anderson outlets. Steady 30V, no dropouts.
$99.95 · View
Not sure what your setup needs? Contact our team and we will check it with you.
Frequently asked questions
Does it work on 24V?
Yes. It takes a 12V or 24V DC input and outputs a regulated 30V.
Do I still need a booster?
No. The booster is built into the outlet.
Which cable plugs into it?
The Starlink Mini DC cable, including the standard 15m cable, or one of our shorter DC cables.
Is it waterproof?
It is rated IP67 with the protective cap fitted and the panel properly sealed.
Is a fuse included?
Wire it through a suitably rated fuse for your cable size and run. Contact our team if you are not sure what you need.
What's the warranty?
12 months against manufacturing faults. Contact our team if you have any trouble.
FEATURES
- ✓Built-in booster, 12V or 24V in, regulated 30V out
- ✓More than 100W maximum output
- ✓No inverter or AC power supply needed
- ✓Aluminium housing with copper contacts
- ✓Threaded body for a 27mm hole, panels up to 55mm thick
- ✓IP67 with the protective cap fitted
WHAT'S INCLUDED?

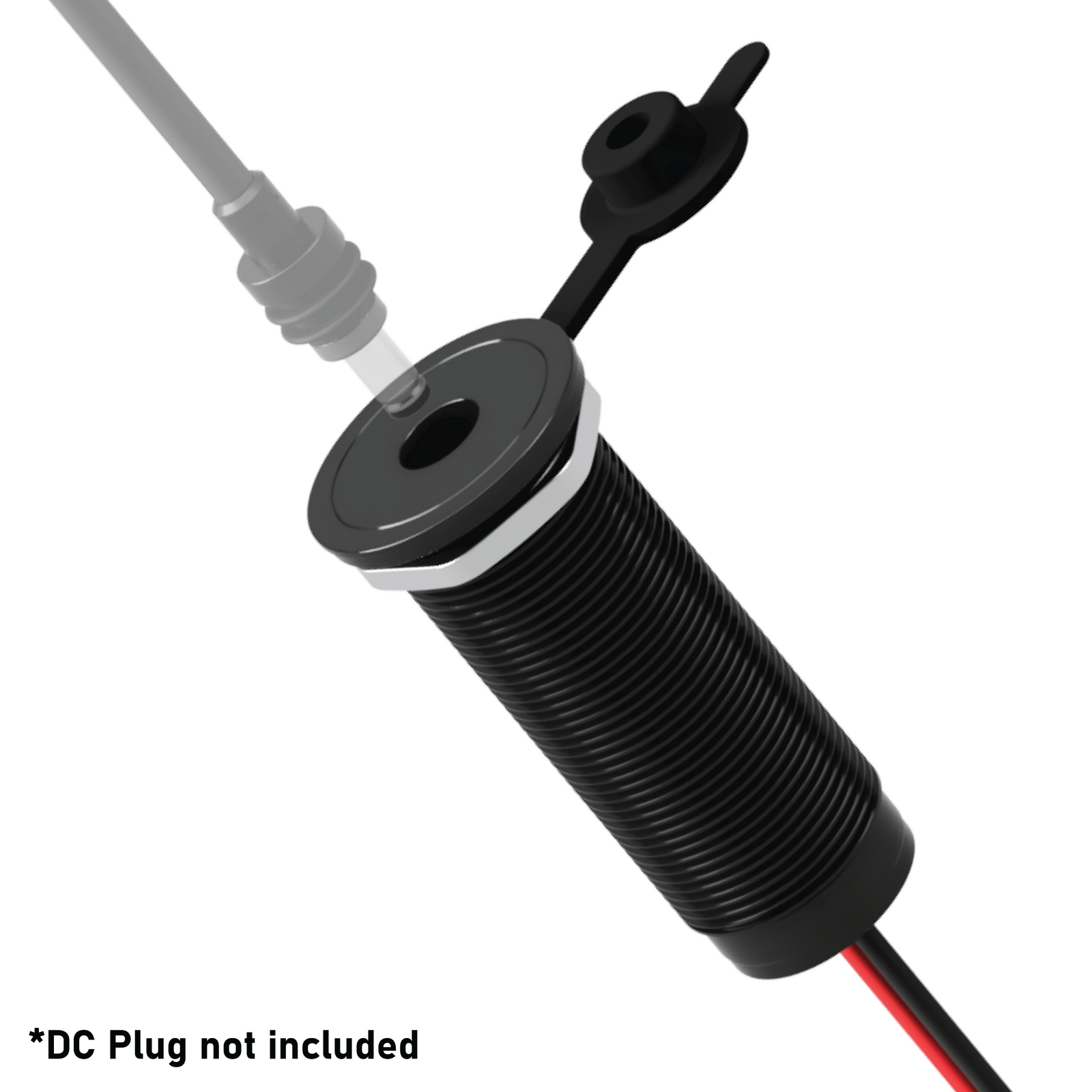

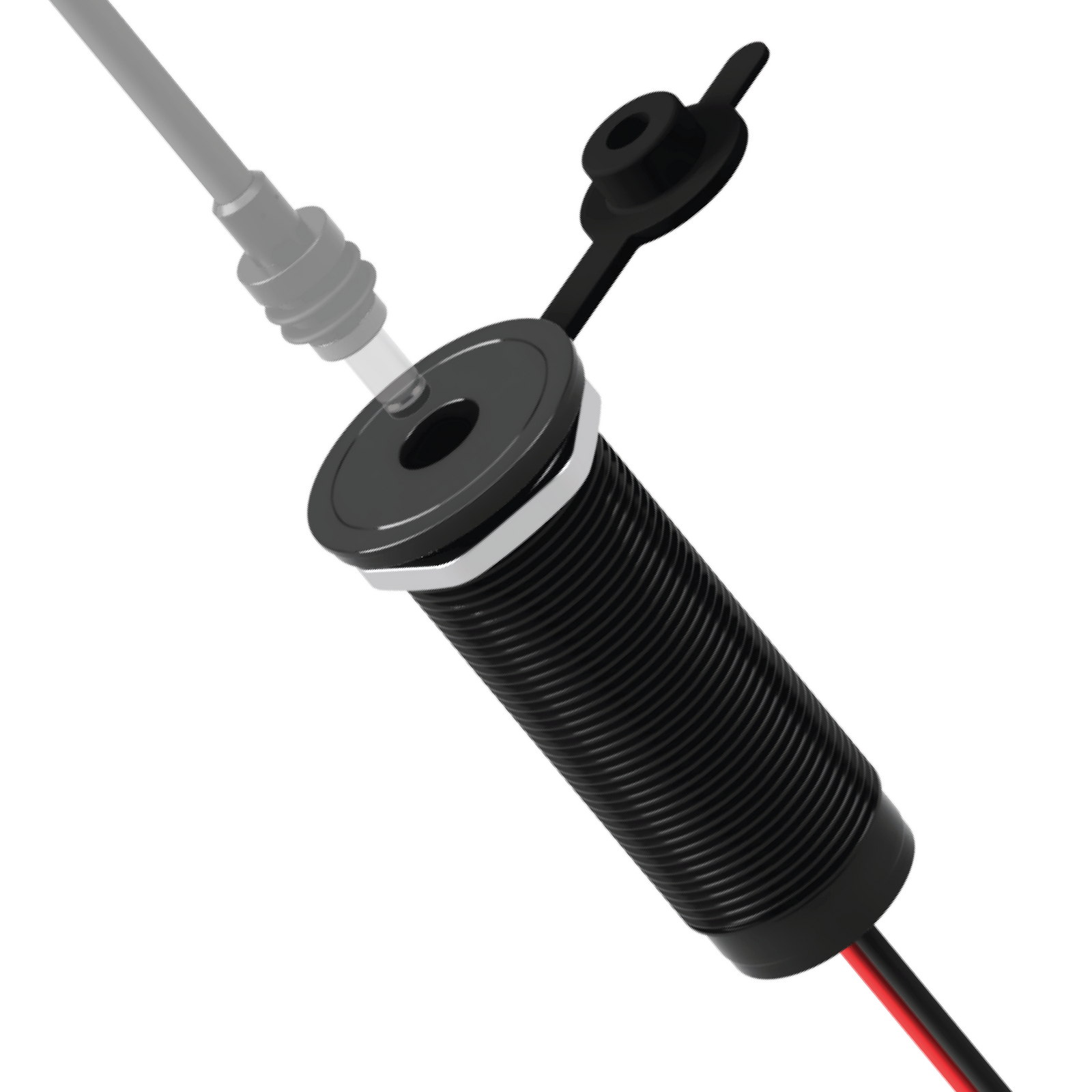

- 1 x Starlink Mini boosted power outlet with protective cap (DC plug not included)
SPECIFICATIONS
Outlet
| Input voltage | 12V or 24V DC |
| Output voltage | 30V DC regulated |
| Maximum output | More than 100W |
| Mounting hole | 27mm |
| Maximum wall thickness | 55mm |

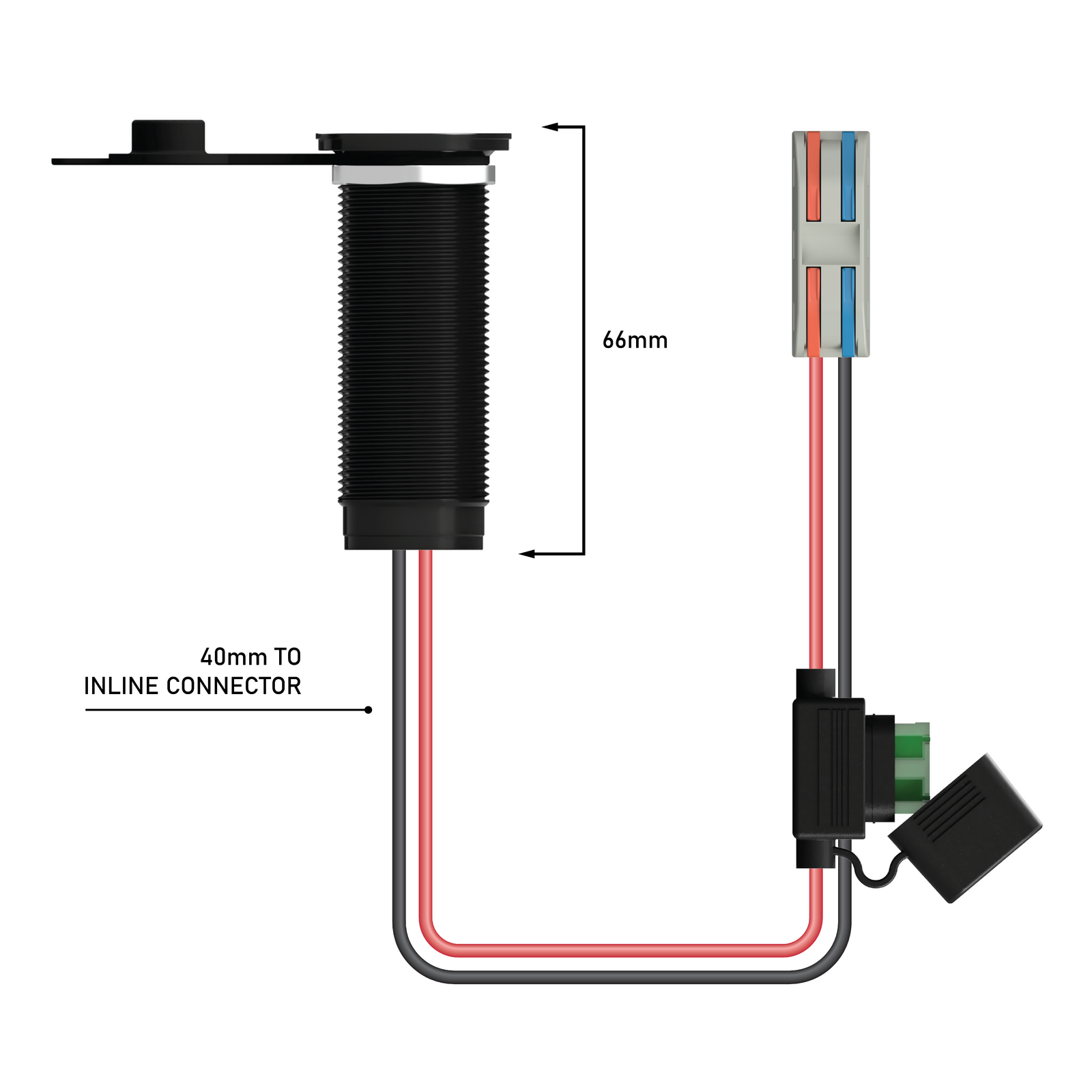

| Body length | 66mm |
| Wiring length | Approx. 170mm |
| Housing | Aluminium |
| Contacts | Copper |
| Rating | IP67 with protective cap fitted |
| Suits | Starlink Mini DC cable, up to 15m |
| Warranty | 12 months |
| SKU | TVD-SL63 |
| Barcode # | 9359968004157 |
