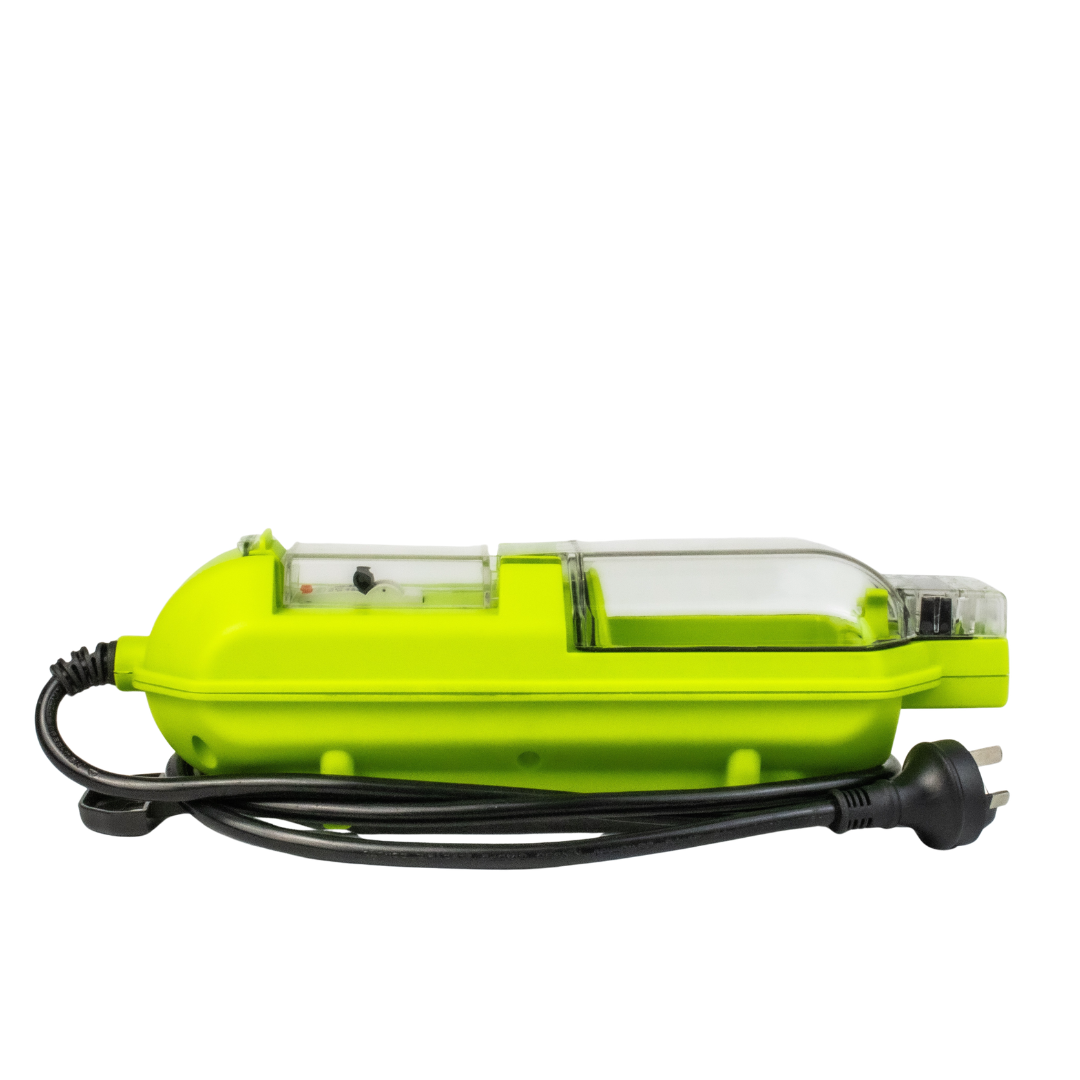

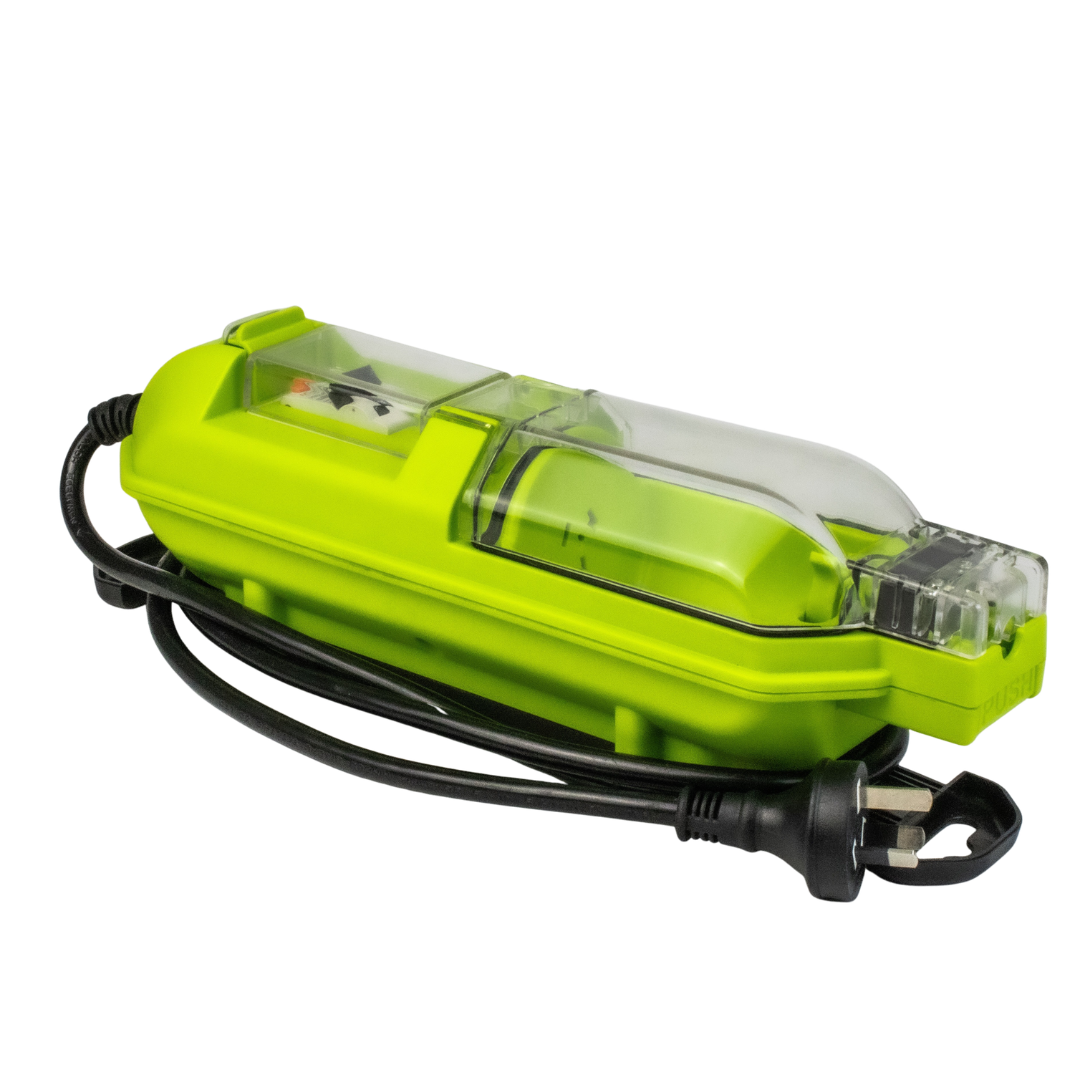

Supex 15A To 10A Caravan Power Adaptor | RCBO Protected
Part number: PA1510-RCD
DETAILS
Supex caravan power
Plug your 15A lead into a 10A outlet, safely
Connect a 15A caravan lead to a standard 10A power outlet. Built-in 30mA Type A RCBO protection and an IP55 rating keep you covered on site.
The integrated RCBO combines overload and residual current protection in one device, with visible status and easy-to-reach test and reset buttons. The bright casing is easy to find on site, and the hanging hook keeps it up off the ground. It suits 15A caravan leads up to 11mm in diameter and complies with AS/NZS 3190.
Connect

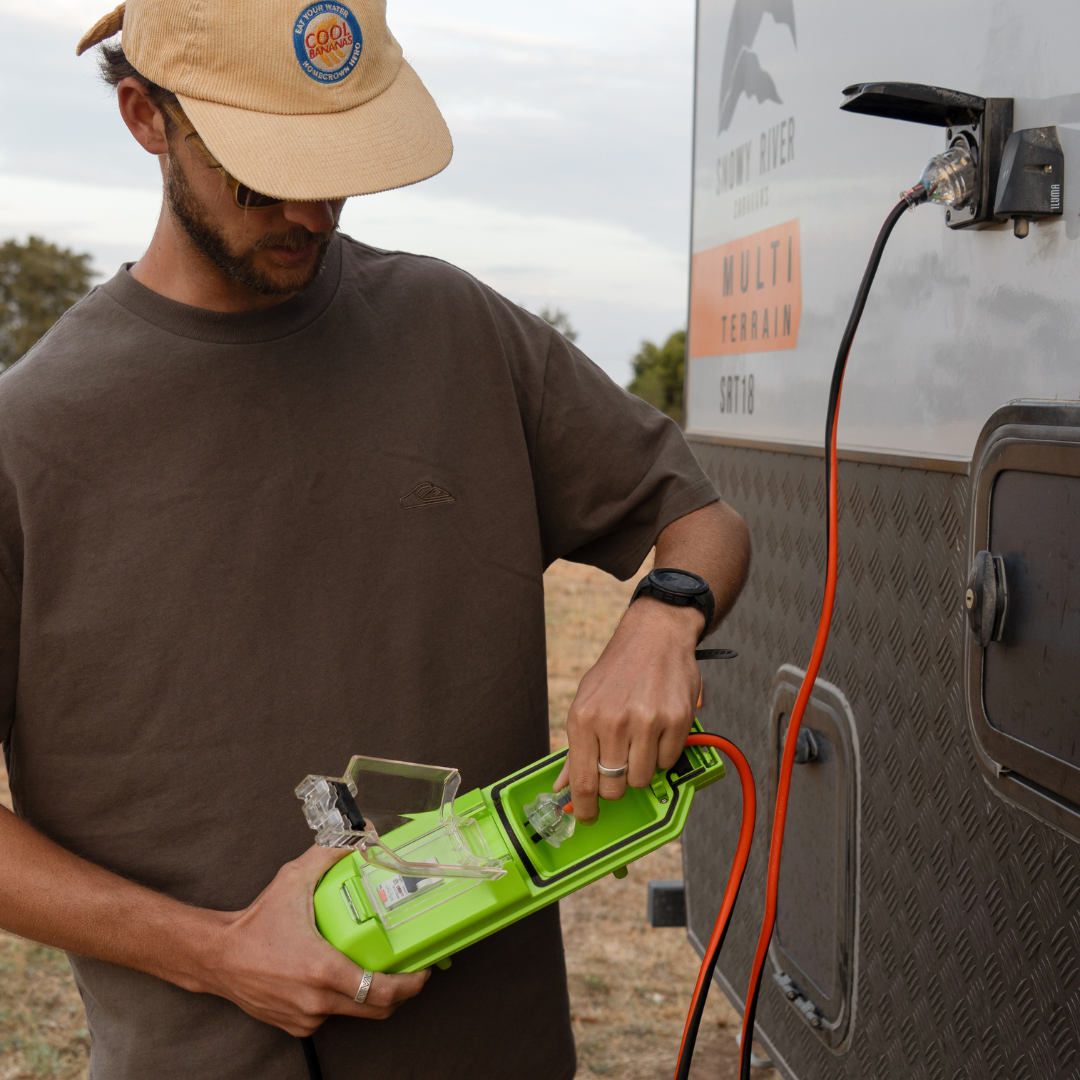

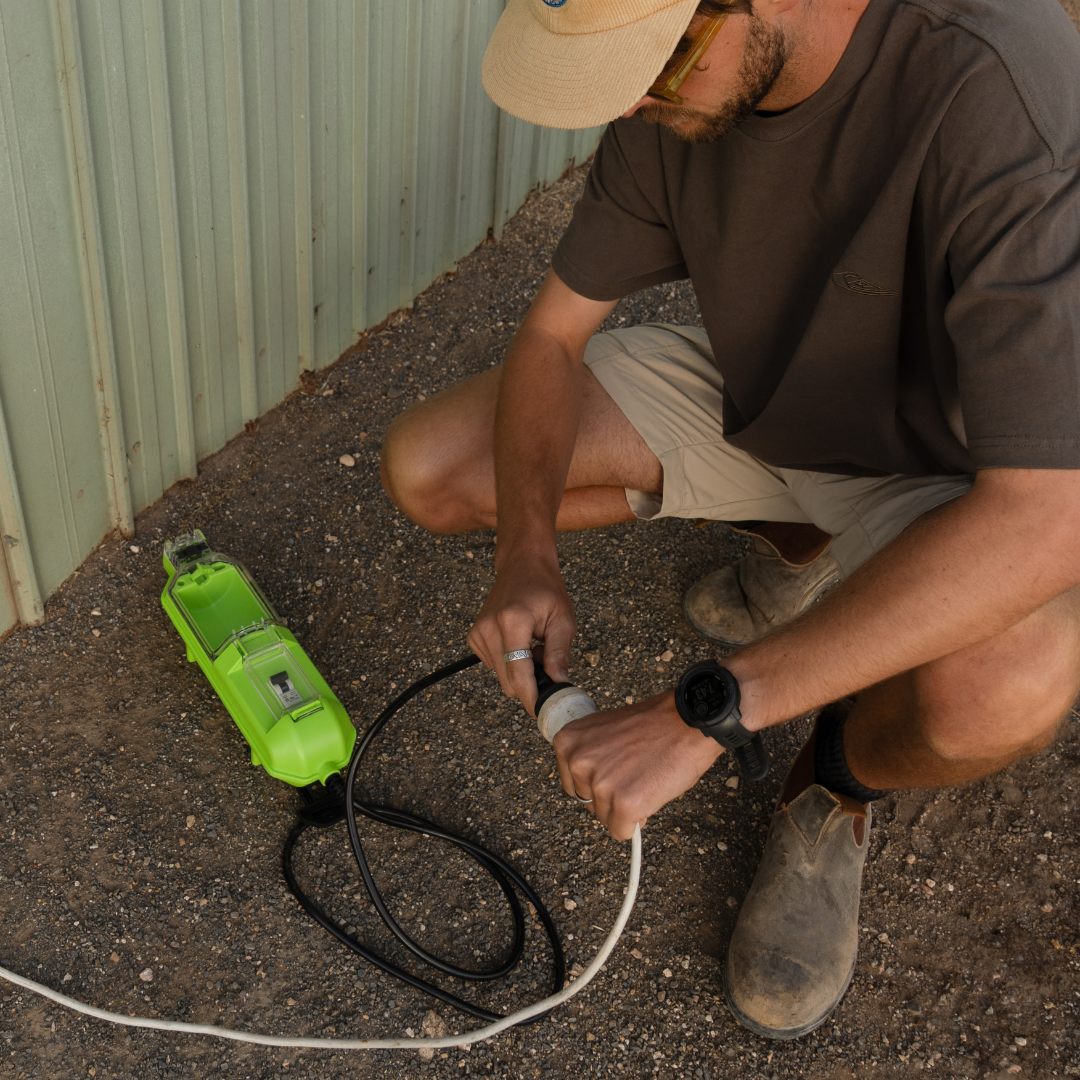

Run your 15A lead from a 10A outlet
Plug the adaptor into a standard 10A power outlet, then plug your 15A caravan lead into its socket. It suits 15A caravan leads up to 11mm in diameter, and the 1.5m supply lead gives you some reach from the outlet.
- ✓15A socket, 10A plug
- ✓Suits leads up to 11mm dia.
- ✓1.5m supply lead
Protection

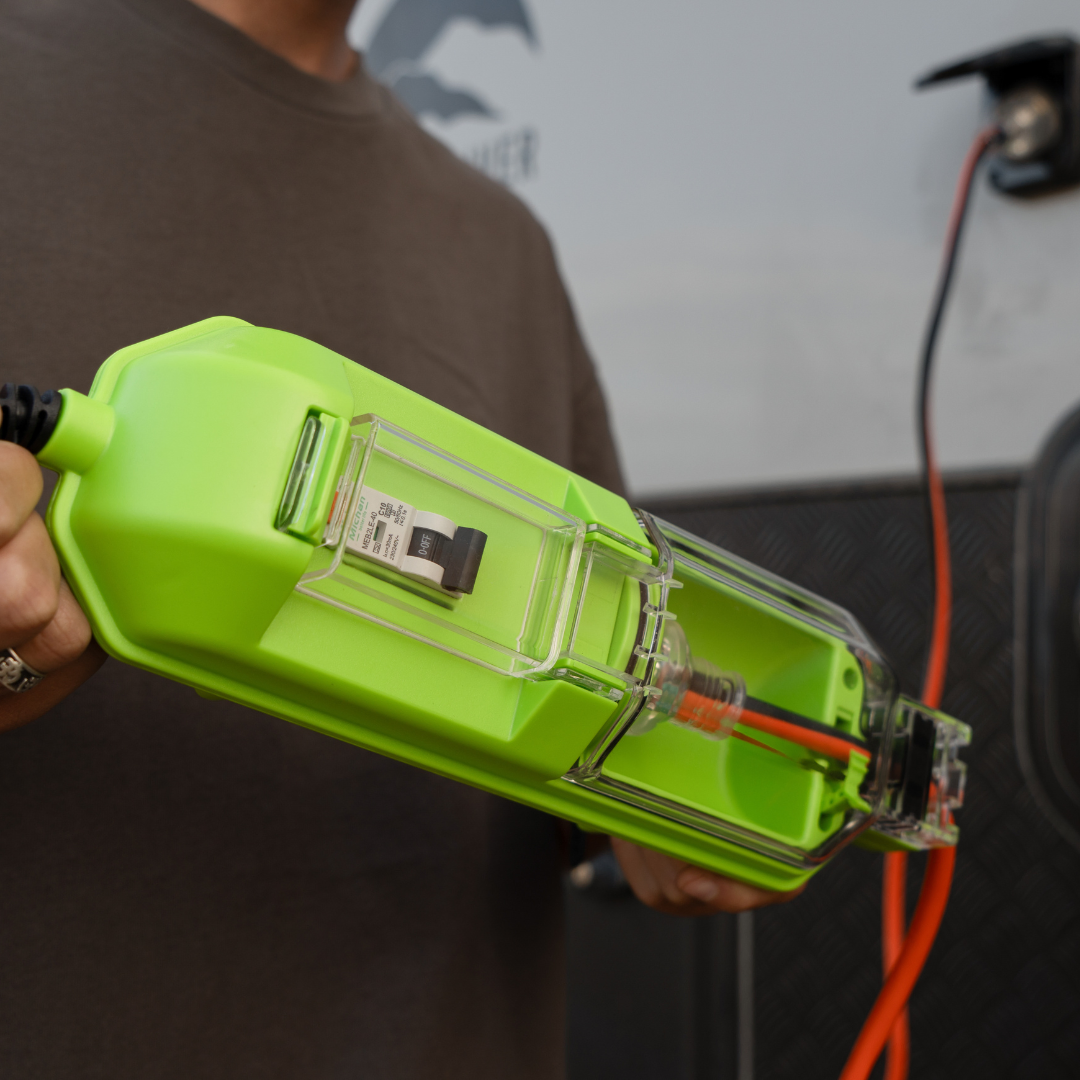

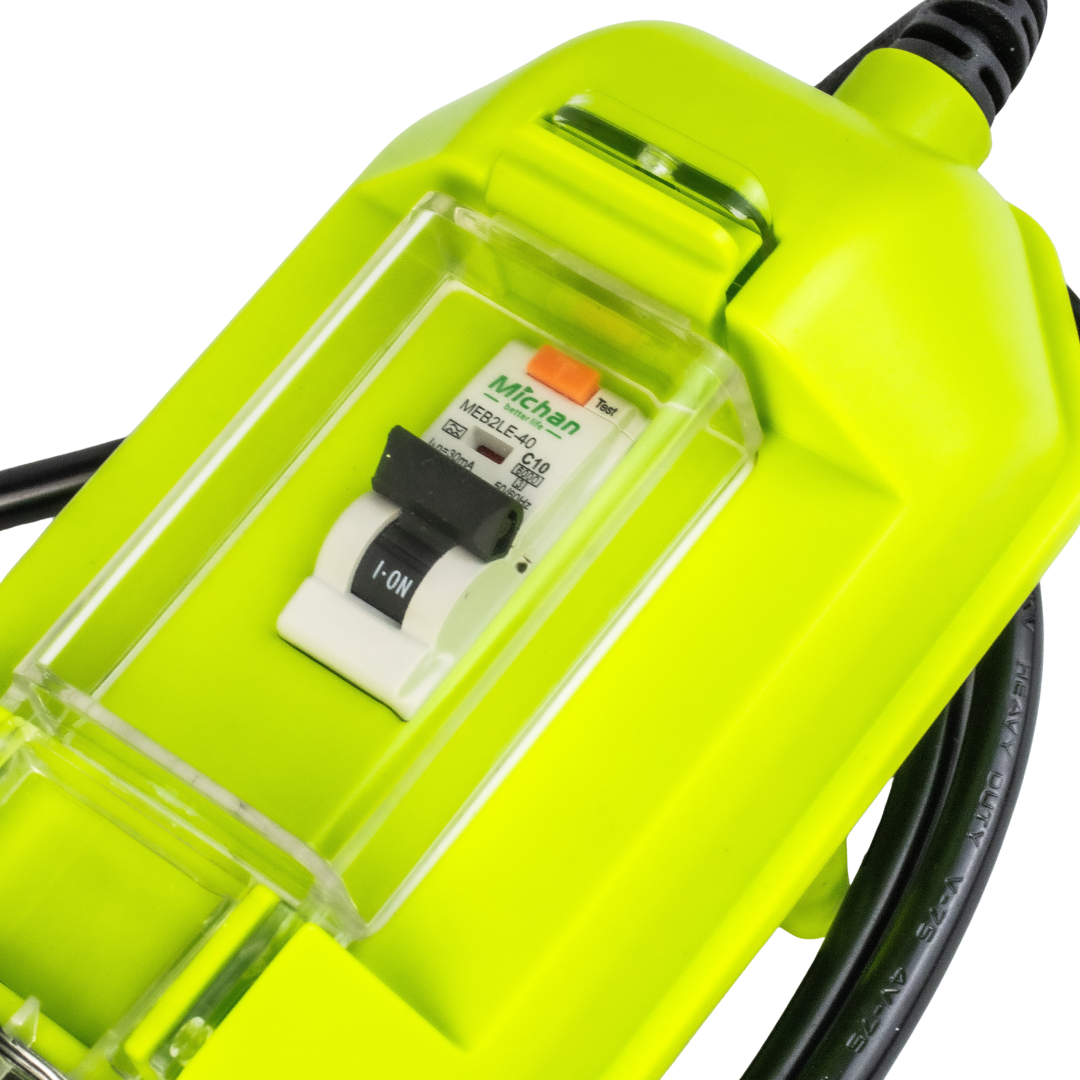

RCBO built in
An integrated 30mA Type A RCBO combines overload and residual current protection in one device. The status is easy to see and the test and reset buttons are easy to reach. It's rated to 240V, 10A and 2400W maximum.
- ✓30mA Type A RCBO
- ✓Visible status, easy test and reset
- ✓2400W max
On site
Weather resistant and easy to find

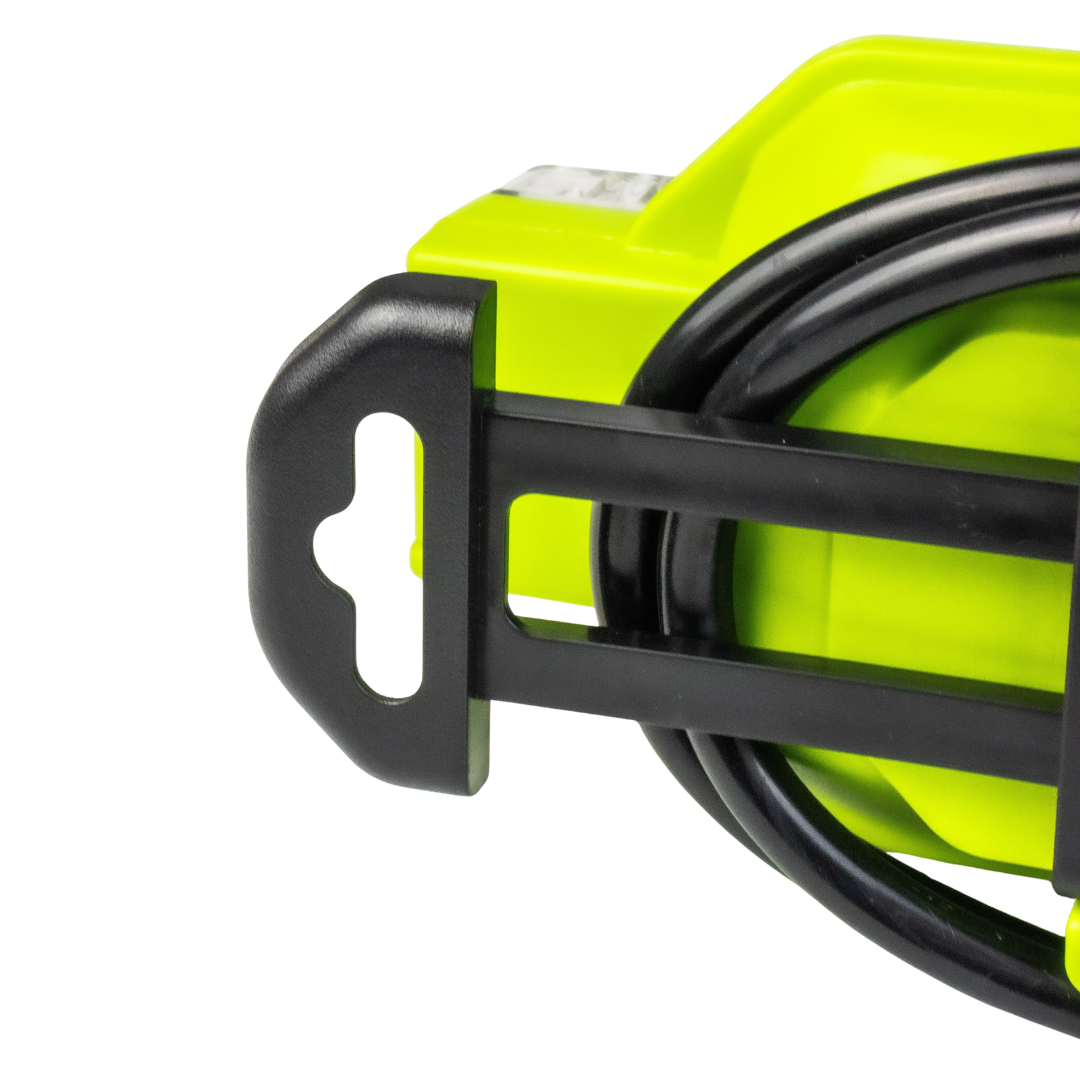

With the lid closed it's rated IP55 against dust and water. The bright casing stands out on a campsite or driveway, and the integrated hook lets you hang it up off the ground.
- ✓IP55 with lid closed
- ✓Bright, high-visibility casing
- ✓Integrated hanging hook
Goes well with
Complete your setup
Storage bag that holds up to 45m of caravan power lead.
Matching bag for the water hose, stacks with the lead bag.
Frequently asked questions
What does it do?
It lets you connect a 15A caravan lead to a standard 10A power outlet, with built-in RCBO protection.
How much power can I draw?
It's rated to 10A and 2400W maximum at 240V. Keep your total load under that.
Can I leave it out in the rain?
It's rated IP55 against dust and water when the lid is closed. Hang it up off the ground with the integrated hook.
Does it meet Australian standards?
Yes. It complies with AS/NZS 3190, the 15A socket complies with AS/NZS 3112 and the supply cord with AS/NZS 3191. It's not suitable for sale or use in New Zealand.
How big is it?
99mm wide, 102mm high and 360mm long, and it weighs 0.86kg.
FEATURES
- ✓Connects a 15A caravan lead to a standard 10A outlet
- ✓Integrated 30mA Type A RCBO
- ✓Combined overload and residual current protection
- ✓IP55 dust and water protection with the lid closed
- ✓Visible status with easy test and reset access
- ✓Bright casing and integrated hanging hook
- ✓Suits 15A caravan leads up to 11mm dia.
WHAT'S INCLUDED?
- 1 x 15A to 10A caravan power adaptor
SPECIFICATIONS
| Voltage | 240V ~ 50Hz |
| Rated current | 10A max |
| Rated power | 2400W max |
| Residual current | 30mA, Type A RCBO |
| Ingress protection | IP55 (lid closed) |
| Lead length | 1.5m |
| Lead diameter supported | Up to 11mm |
| Product weight | 0.86kg |
| Dimensions | 99mm (w) x 102mm (h) x 360mm (l) |
| Standards | AS/NZS 3190; 15A socket AS/NZS 3112; supply cord AS/NZS 3191 |
| Not for use in | New Zealand |
| Brand | Supex |
| SKU | PA1510-RCD |
| Barcode # | 9343087010472 |
| Brand | Supex |
(PA1510-RCD)
