Supex Caravan Digital Weight Scales | 1500kg
Part number: CDWT-15
DETAILS
Supex towing accessories
Know your weights before you tow
High-precision digital weigh scales with a drive-on ramp. Check wheel and load weights on your caravan or trailer for safer towing and better balance.
Five evenly spread gravity sensors give readings within ±2.5% from 20kg up to 1500kg. The scales are made from PA66 reinforced with 35% glass fibre, carry an IPX4 rating for outdoor use and run on a built-in 600mAh rechargeable battery with Type-C charging. They suit caravans, camper trailers, RVs and off-road trailers.
Set-up
Lay it down, roll on

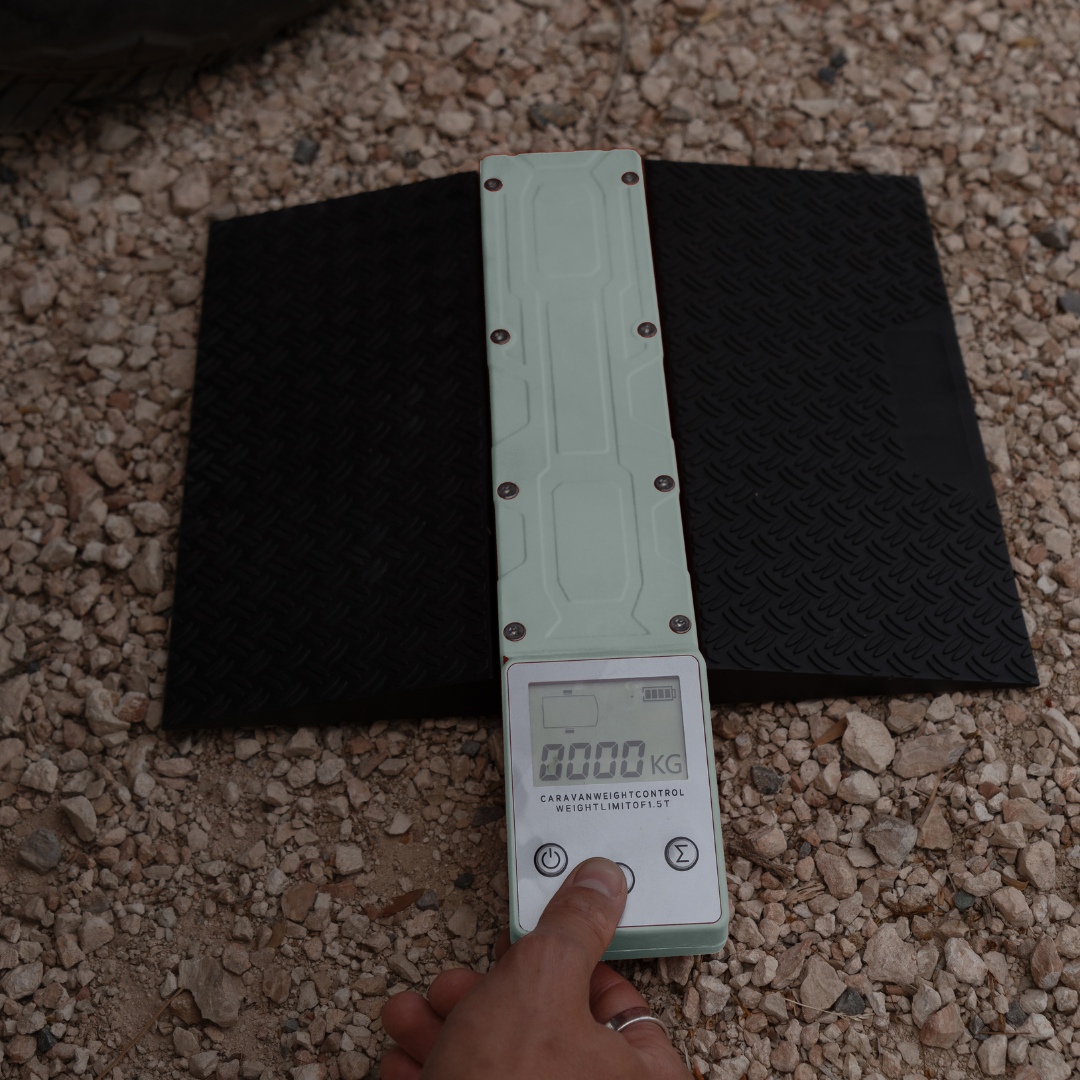

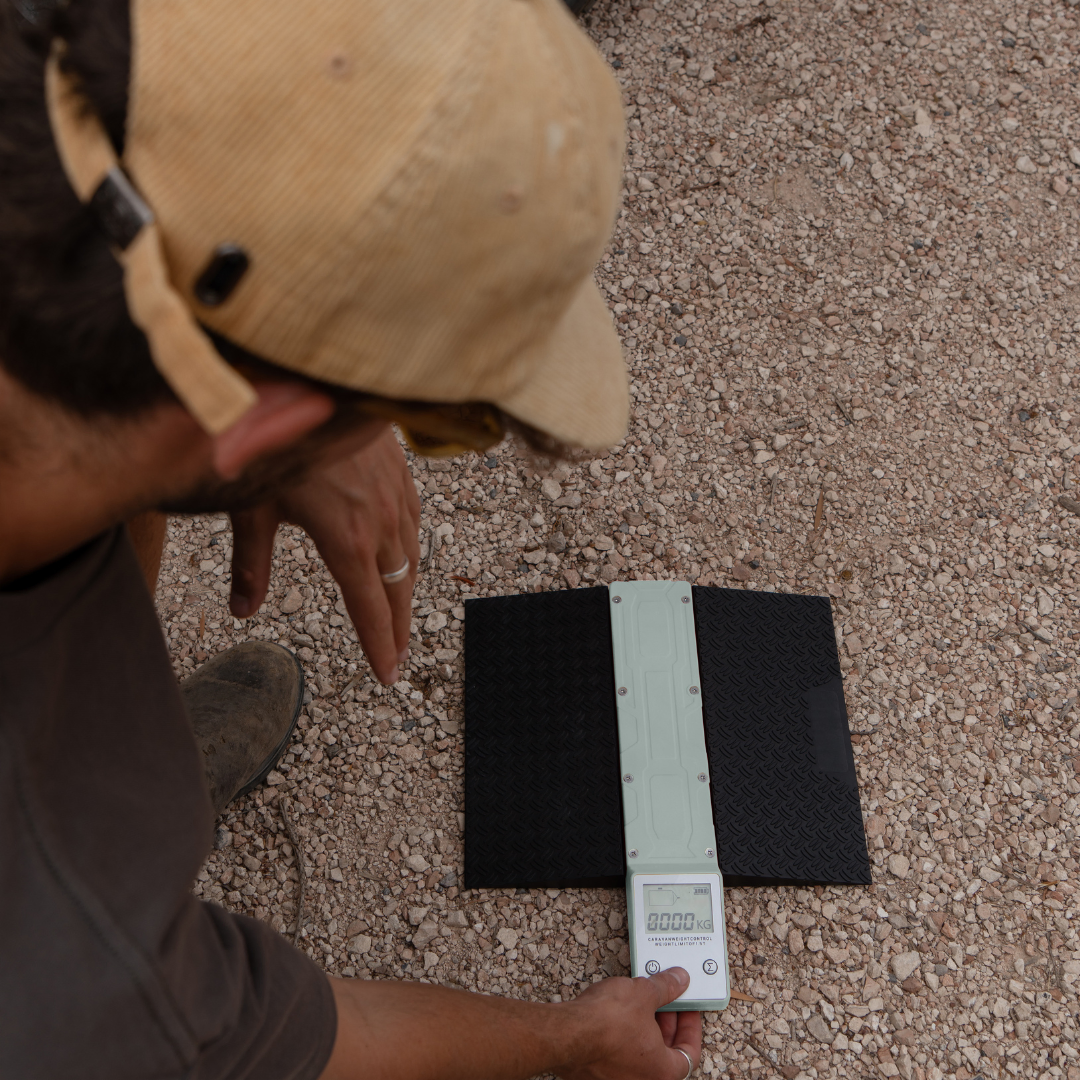

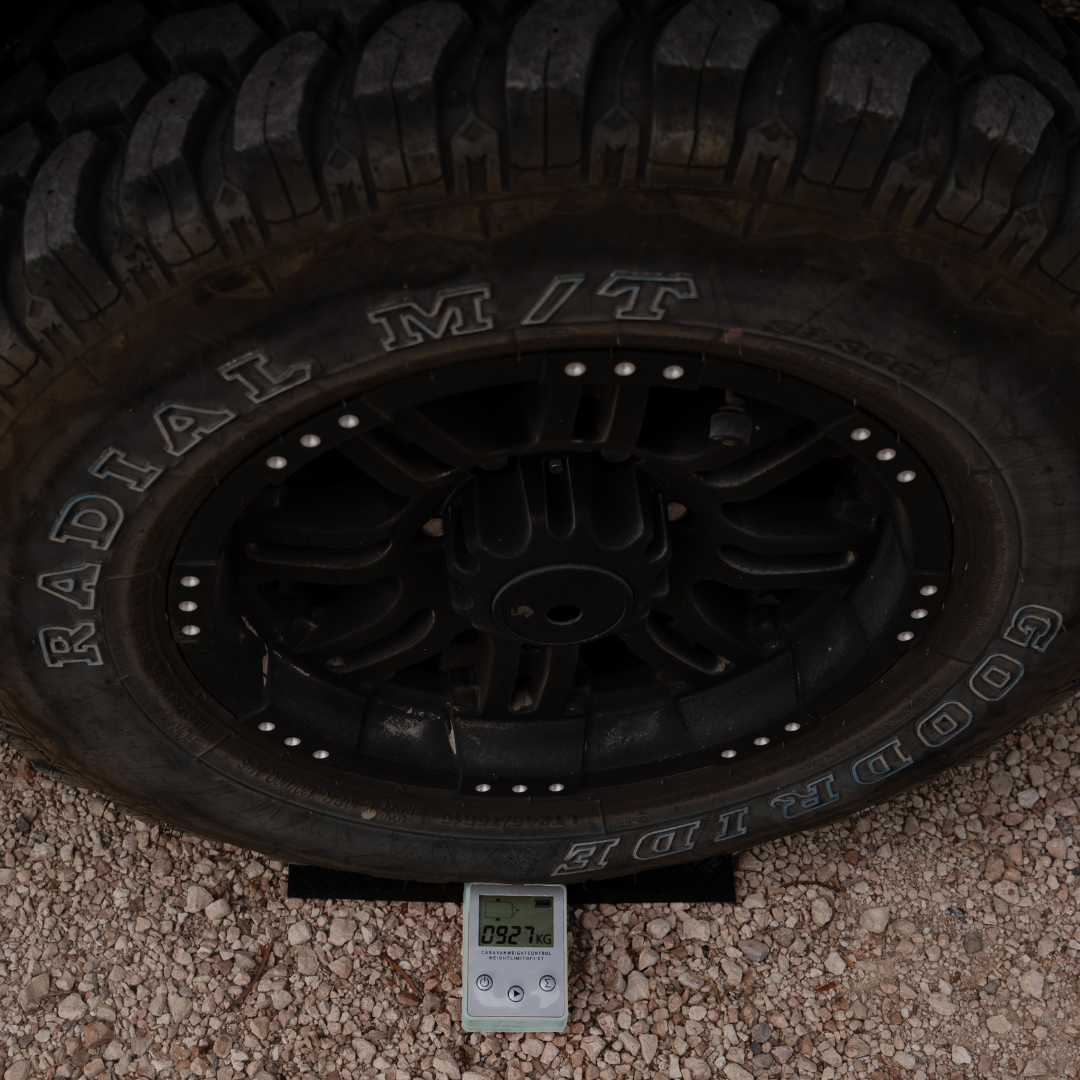

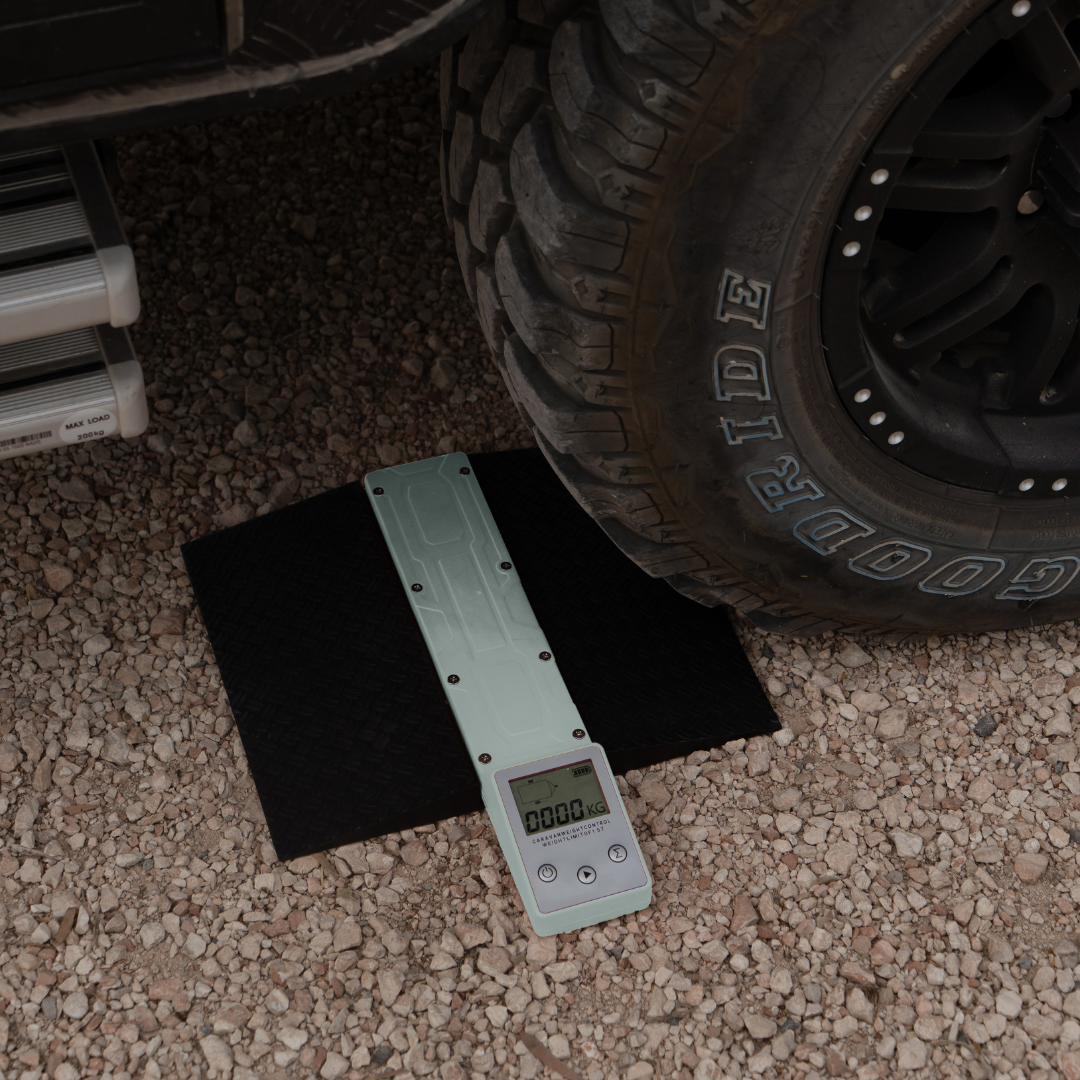

Place the scale on firm ground and roll the tyre up the ramp onto the sensor strip. The ramp is 300mm wide and 260mm deep, so it's easy to line up the wheel.
- ✓Built-in ramp for easy positioning
- ✓Ramp 300mm x 260mm
- ✓Scale 70mm x 360mm
Accuracy
Readings you can rely on
Five evenly spread gravity sensors read within ±2.5%, from 20kg up to 1500kg. Use it to check wheel and load weights on caravans, camper trailers, RVs and off-road trailers before you tow.
- ✓20kg to 1500kg range
- ✓Deviation within ±2.5%
- ✓5 gravity sensors
Built for outdoors
Tough, rechargeable, IPX4
The body is PA66 reinforced with 35% glass fibre, and it carries an IPX4 rating for outdoor conditions. A built-in 600mAh lithium battery charges via Type-C, so there are no disposable batteries to carry.
- ✓PA66 + 35% glass fibre
- ✓IPX4 water rating
- ✓600mAh battery, Type-C charging
Goes well with
Complete your setup
Jockey wheel block for a firm base under the jockey wheel.
Frequently asked questions
How much can it weigh?
From 20kg up to 1500kg.
How accurate is it?
Supex states a deviation within ±2.5%, using five gravity sensors.
How do I use it?
Lay it on firm ground and drive or roll the tyre up the ramp onto the scale, then read the display.
How is it powered?
A built-in 600mAh rechargeable lithium battery with Type-C charging.
Can I use it outside in the wet?
It has an IPX4 rating, so it handles typical outdoor and camping conditions.
FEATURES
- ✓Weighs from 20kg up to 1500kg
- ✓Five gravity sensors for accurate readings
- ✓Deviation within ±2.5%
- ✓Ramp for easy tyre positioning
- ✓PA66 with 35% glass fibre construction
- ✓IPX4 rated for outdoor conditions
- ✓Built-in 600mAh battery with Type-C charging
WHAT'S INCLUDED?
- 1 x caravan digital weight scales with ramp
SPECIFICATIONS
| Weight range | 20kg to 1500kg |
| Accuracy | Deviation within ±2.5% |
| Sensors | 5 gravity sensors |
| Material | PA66 + 35% glass fibre |
| Battery | 600mAh rechargeable lithium |
| Charging | Type-C |
| Water rating | IPX4 |
| Ramp size | 300mm (w) x 260mm (d) |
| Scale size | 70mm (w) x 360mm (l) |
| Brand | Supex |
| SKU | CDWT-15 |
| Barcode # | 9343087010373 |
| Brand | Supex |
(CDWT-15)
