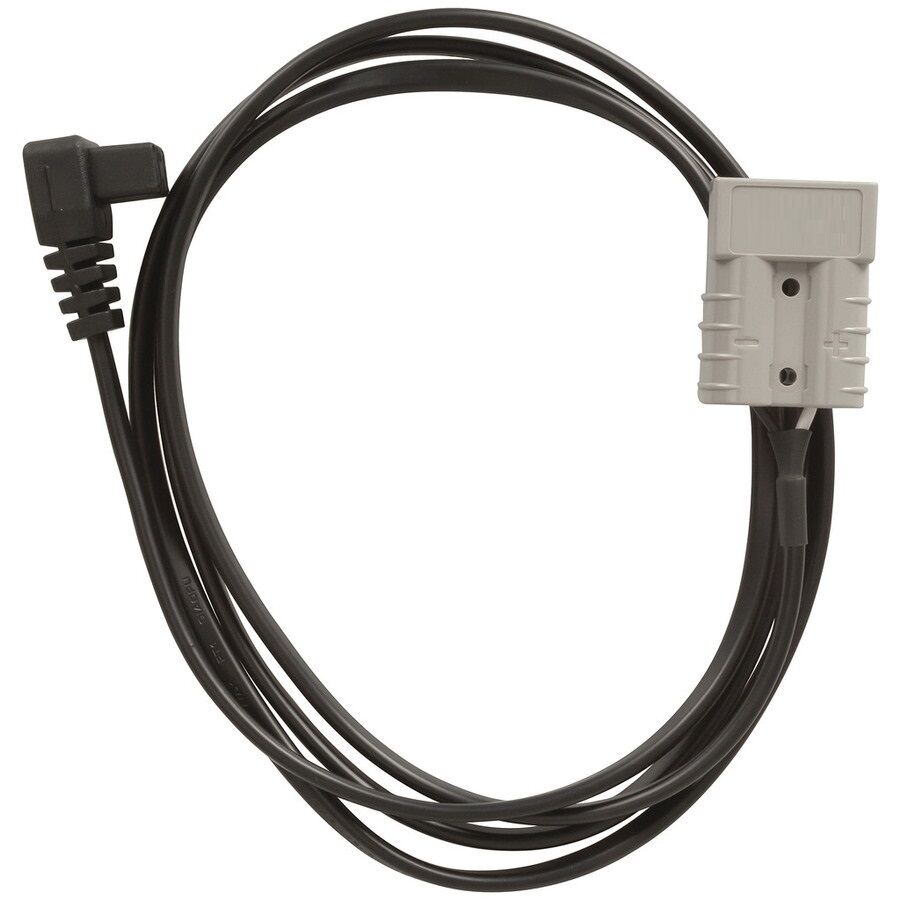

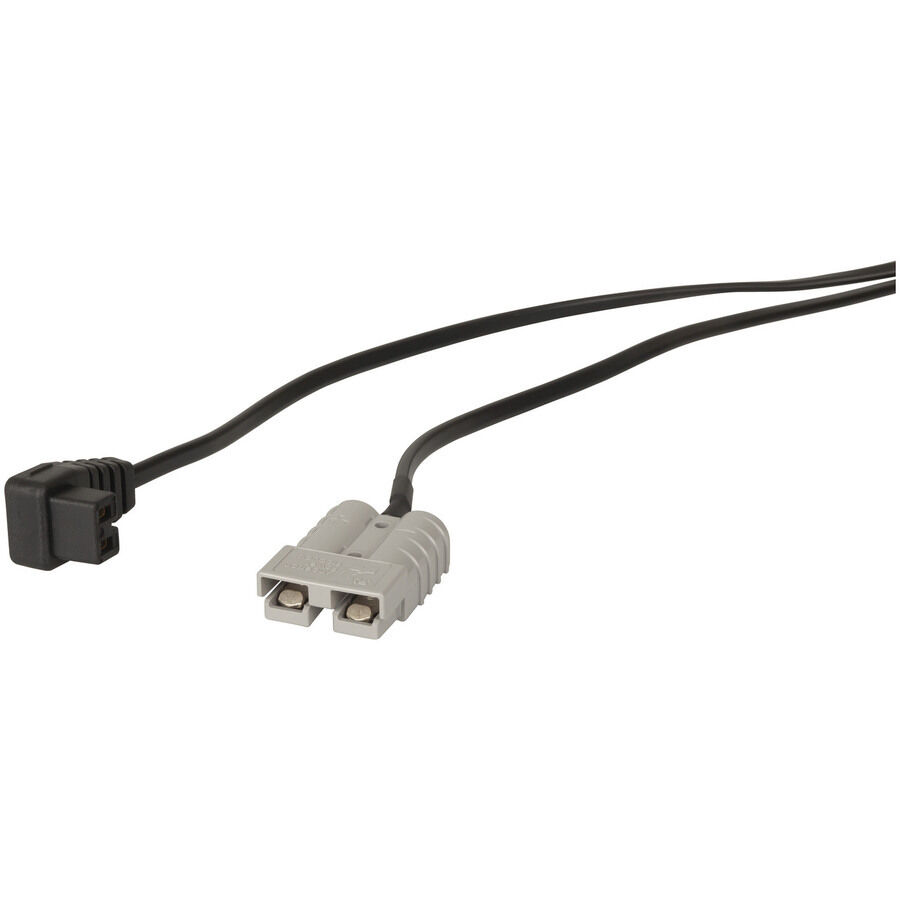

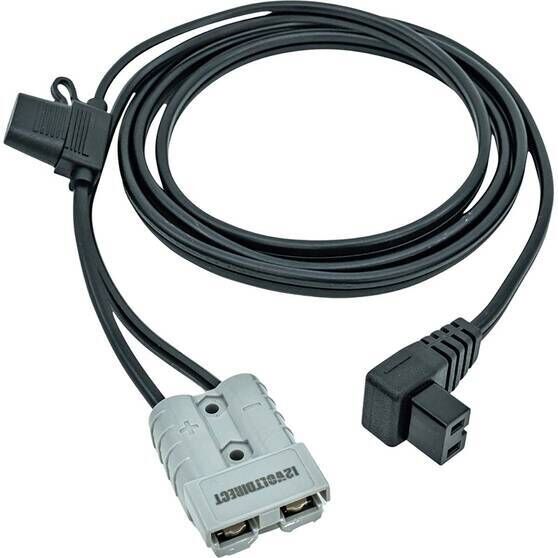

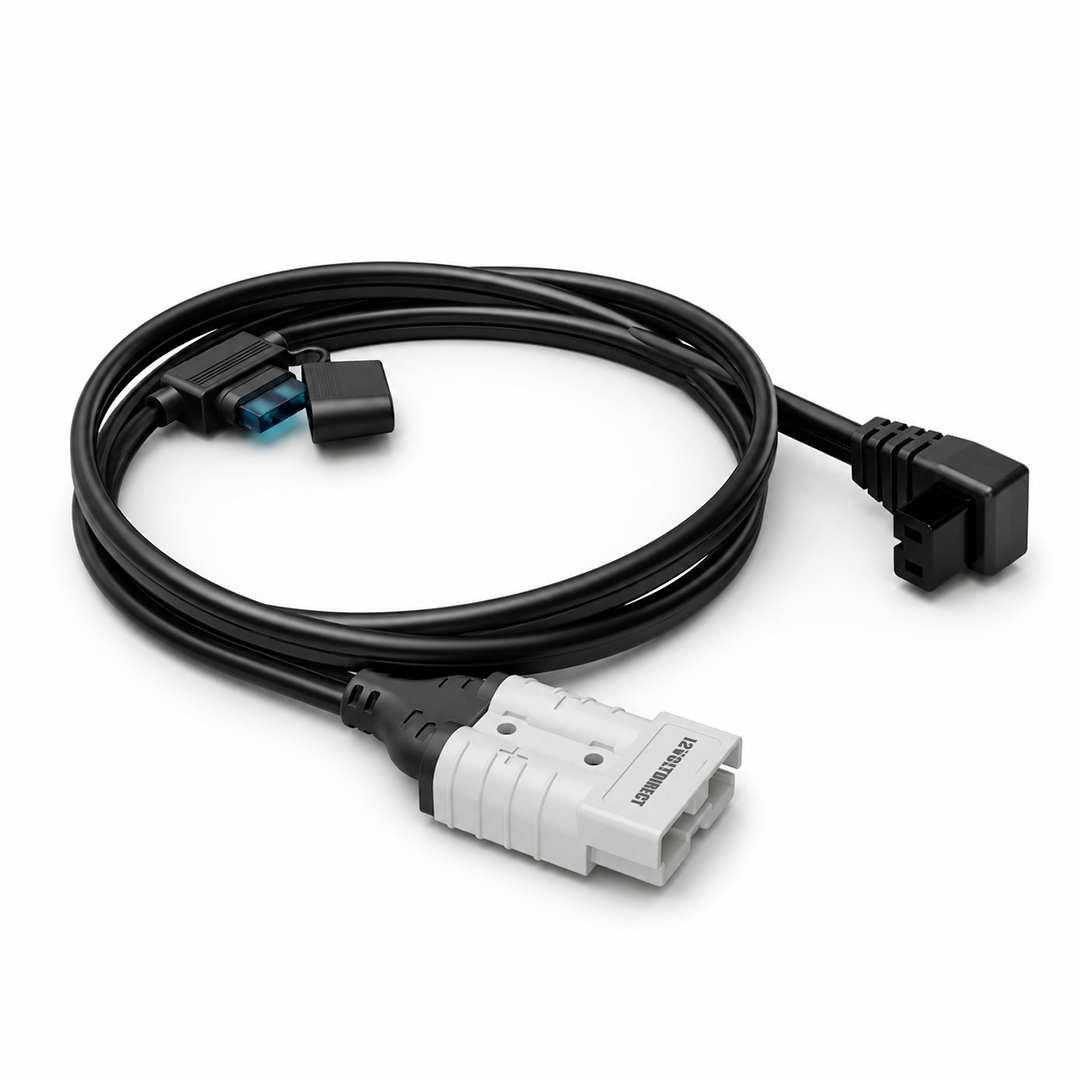

TVDA01 – Anderson Style Plug to 2-Pin Fridge Cable (1.8 m, 14 AWG, 15 A Fused)

Premium Replacement Lead for Most 12V Fridges

The 12 Volt Direct TVD-A01 is built to reliably power most major 12V compressor fridges using a rugged SB50 Anderson style connector. Designed to overcome the limitations of cigarette lighter sockets, this cable provides a secure, vibration-proof power connection suitable for 4WDs, caravans, campers, boats and portable battery systems.

Manufactured using 14 AWG twin-core copper cable (2 x 2.08 mm²), the TVD-A01 offers over 60% more copper than standard 16 AWG leads. This reduces voltage drop and helps prevent common low-voltage faults that can cause fridges to shut down unexpectedly.

Featuring a moulded 2-pin fridge plug and an inline 15 A fuse, this lead is built to last in harsh Australian conditions—making it the perfect replacement or upgrade for your 12V fridge setup.

Compatibility

• Suitable for all Waeco fridges
• Suitable for all Kings fridges
• Suitable for all Brass Monkey fridges
• Compatible with selected Evakool models including:
– TMX series
– TMDZ series
– Glacier series
– XTM series
– Early RV, DC & SCA models
• Compatible with most 12V fridges using a 2-pin fridge plug
• Ideal as a replacement lead or upgrade over cigarette lighter plugs
• 1.8 m in length

Key Features

• SB50 Anderson-style connector for strong, vibration-proof power delivery
• Heavy-duty 14 AWG twin-core cable improves voltage stability
• 60% more copper than 16 AWG leads

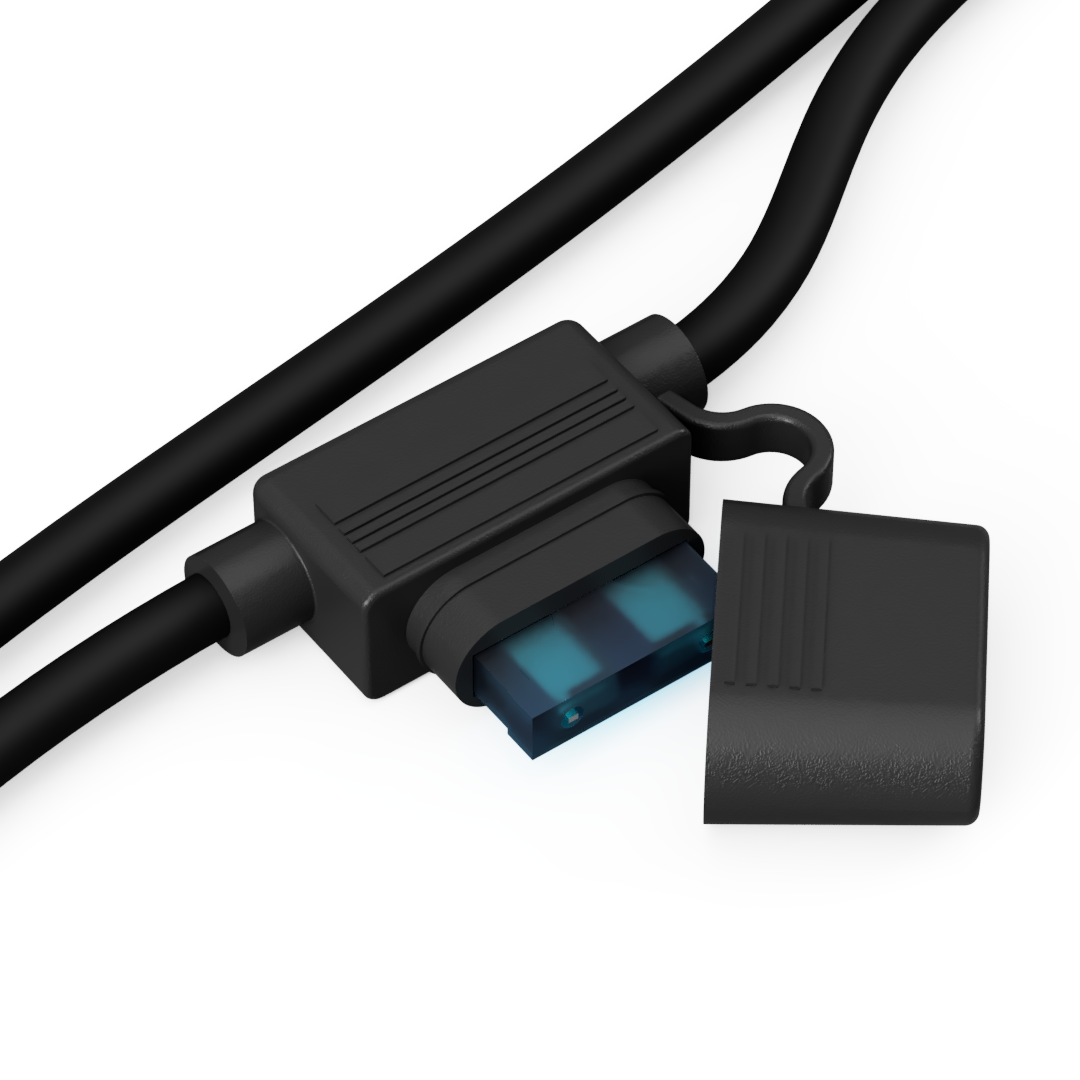

• Inline 15 A fuse for added protection

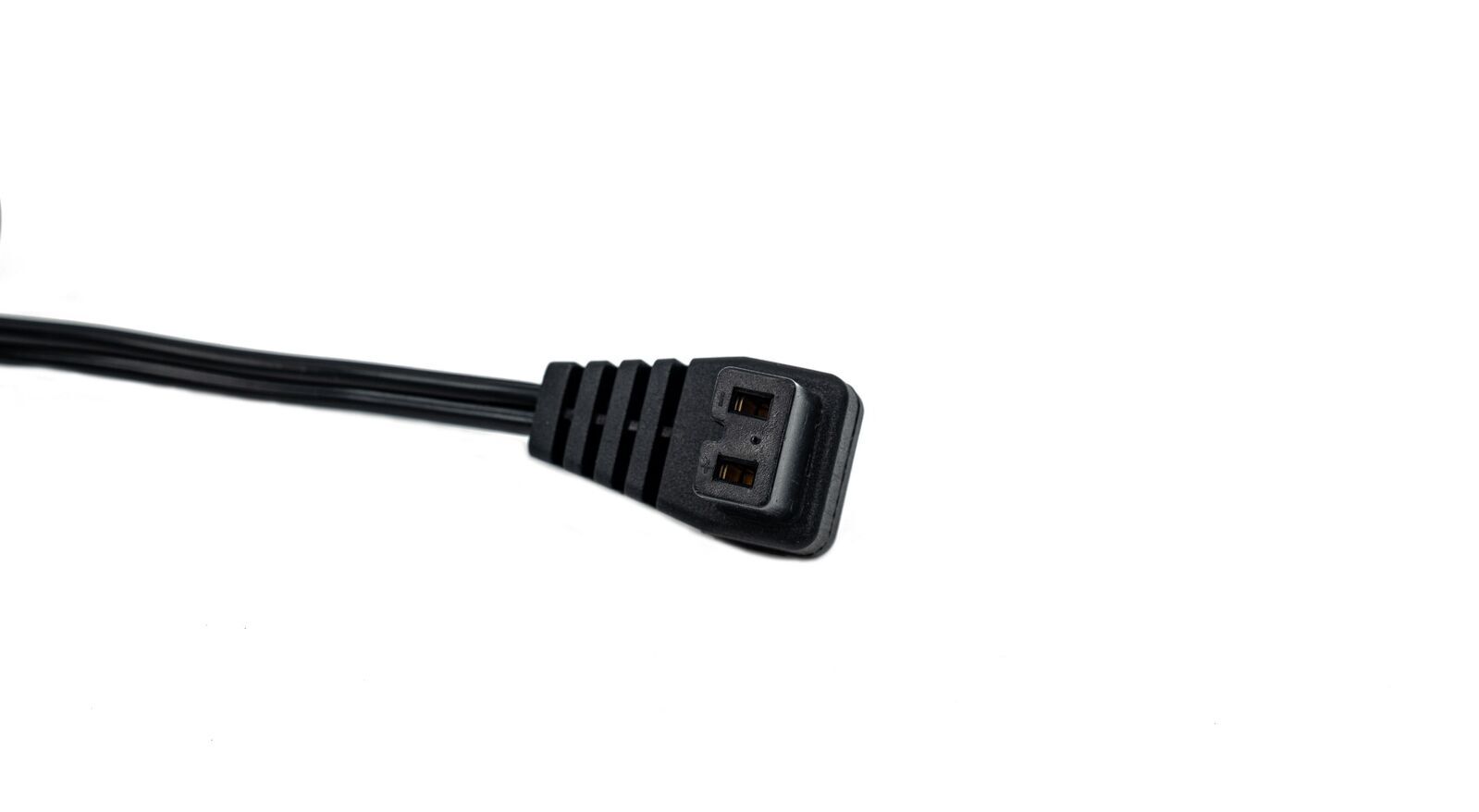

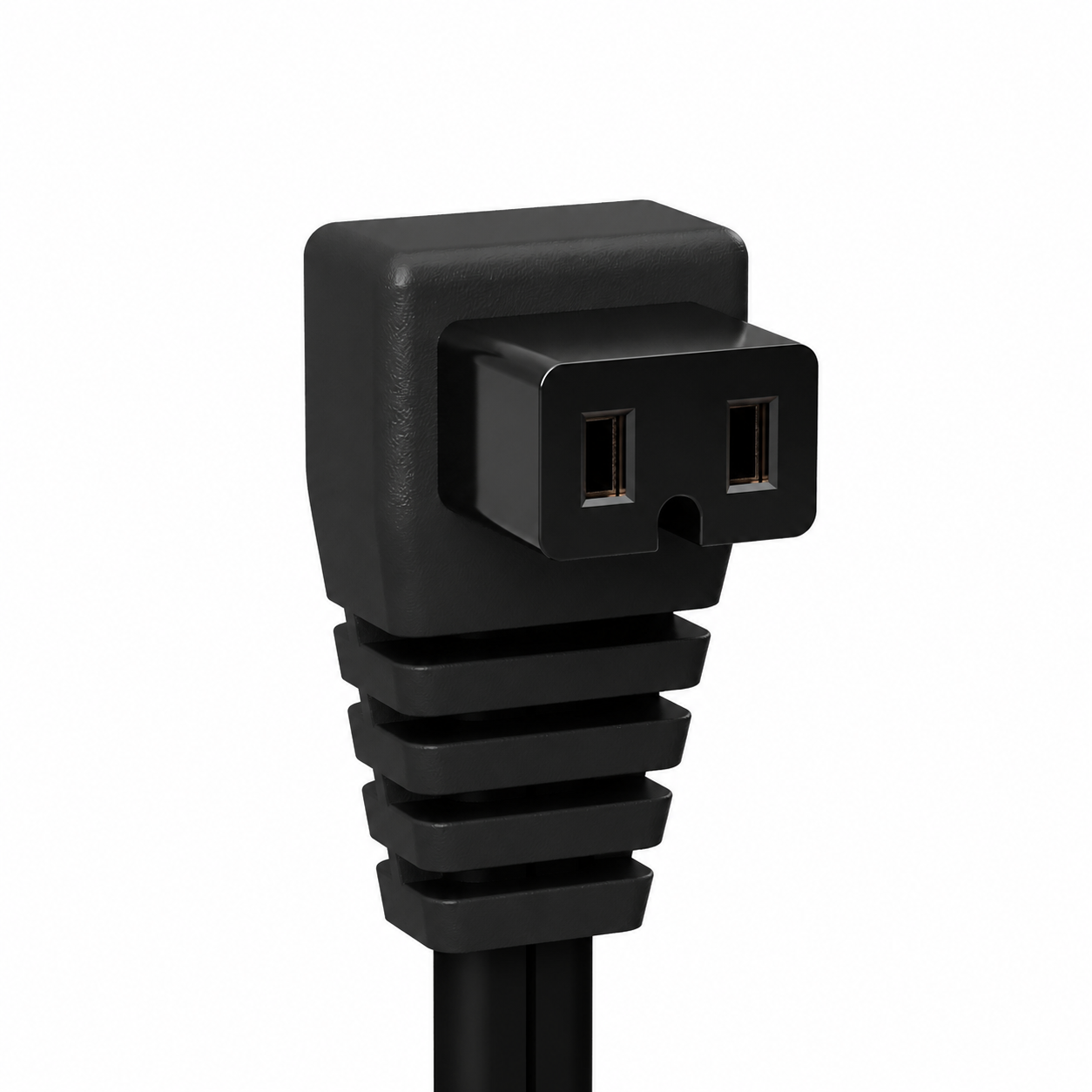

• Moulded 2-pin fridge plug for secure fitment
• Allows your fridge to run from any standard 12V Anderson socket
• Durable construction designed for Australian conditions
• Three-year warranty for peace of mind

Added Flexibility

No spare cigarette socket? No problem.
The TVD-A01 allows you to plug your fridge directly into any 12V Anderson outlet—perfect for battery boxes, canopy setups, power stations, and dual-battery systems.

Specifications

• Model: TVDA01
• Cable Length: 1.8 m
• Cable Size: 14 AWG (2 x 2.08 mm²)
• Fuse: 15 A inline blade
• Connection: SB50 Anderson style → 2-pin fridge plug
• Applications: 12V fridges, dual battery systems, camping, caravans, 4WD, marine
• Warranty: 3 Years
