12 Volt Direct 130W Low Profile Solar Panel Kit 1000 x 670 x 17mm Black with Optional Mounting Brackets

12 Volt Direct

130W low-profile solar panel kit, 1000 x 670 mm

Build your 130W low-profile solar setup in one order. The panel is included, and our low-profile mounting brackets are optional. This panel takes one pair (2 brackets). Add them above if you need them.

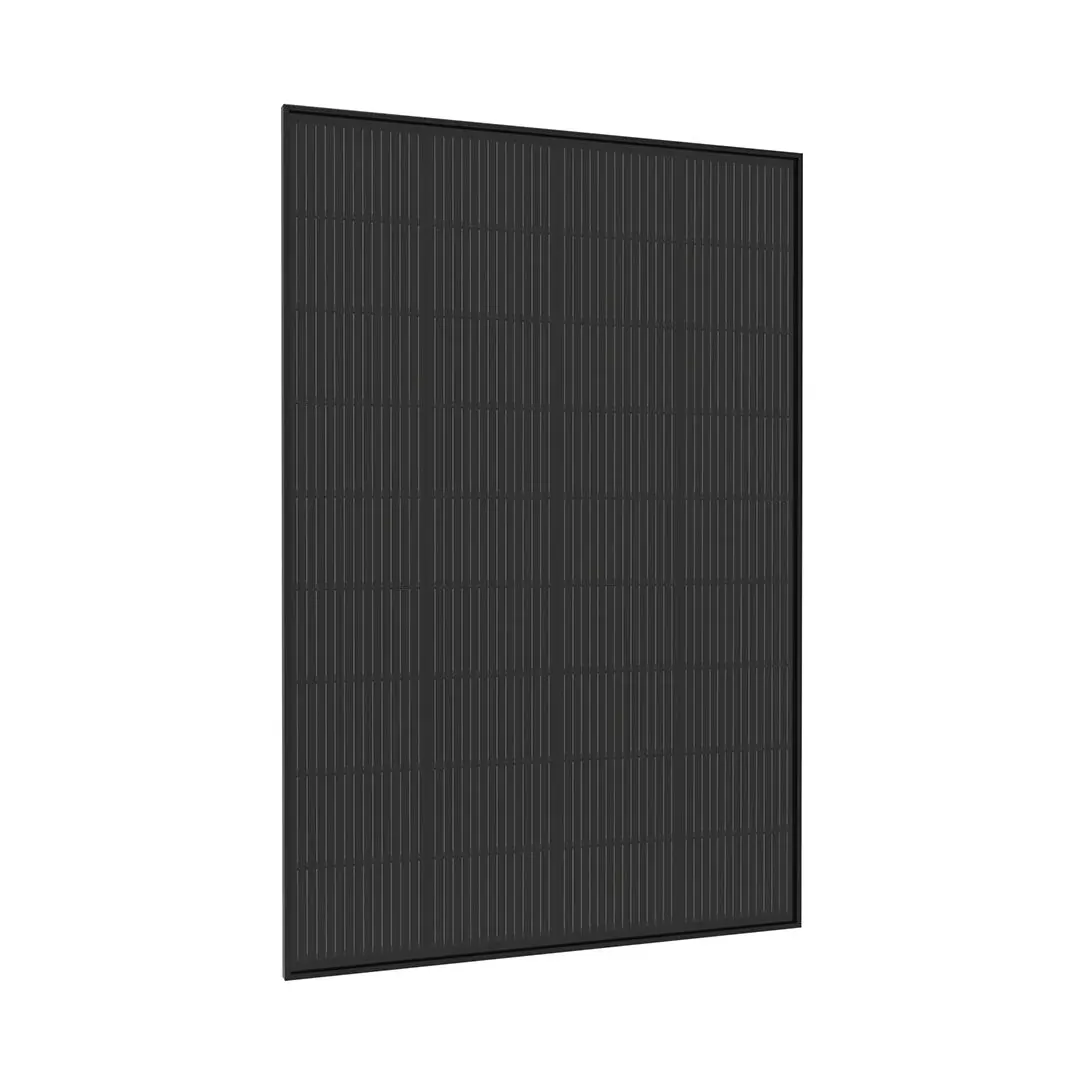

A compact 130W panel for smaller roofs, canopies and the gaps around hatches and air conditioners. At 1000 x 670 mm and only 17 mm thick, all black, it matches the clean look of our 200W low-profile panels.

Lower and cleaner than a standard panel

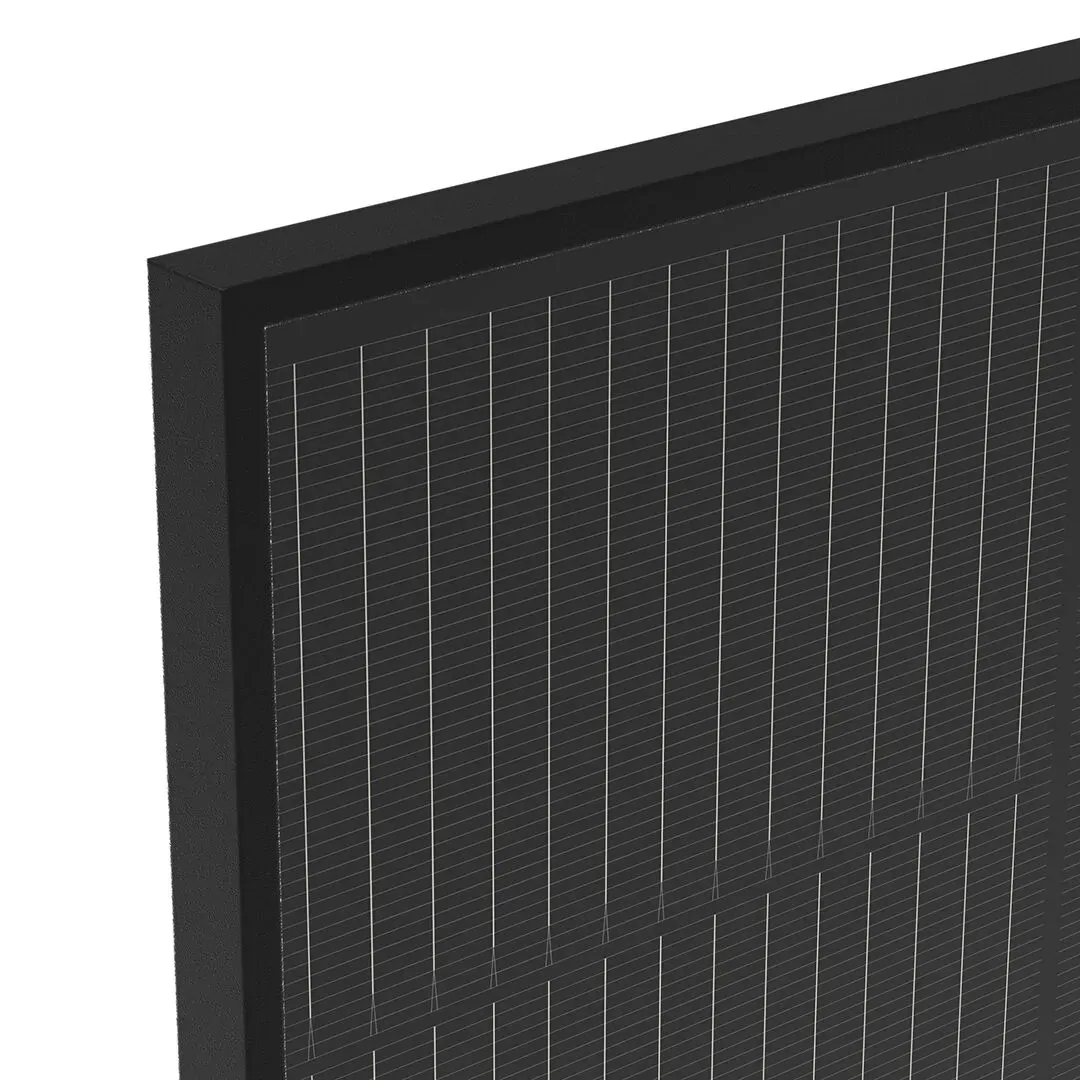

Most framed solar panels are 25 to 35 mm thick. Ours are 17 mm, with black cells, a black frame and a black backsheet, so the panel sits low and almost disappears on a black roof, rack or tent. Pair it with our low-profile brackets for the lowest-profile fixed panel setup you can get.

Built for the road

• 3.2 mm tempered glass with high light transmission, in an anodised aluminium frame
• IP65 junction box keeps out dust and rain

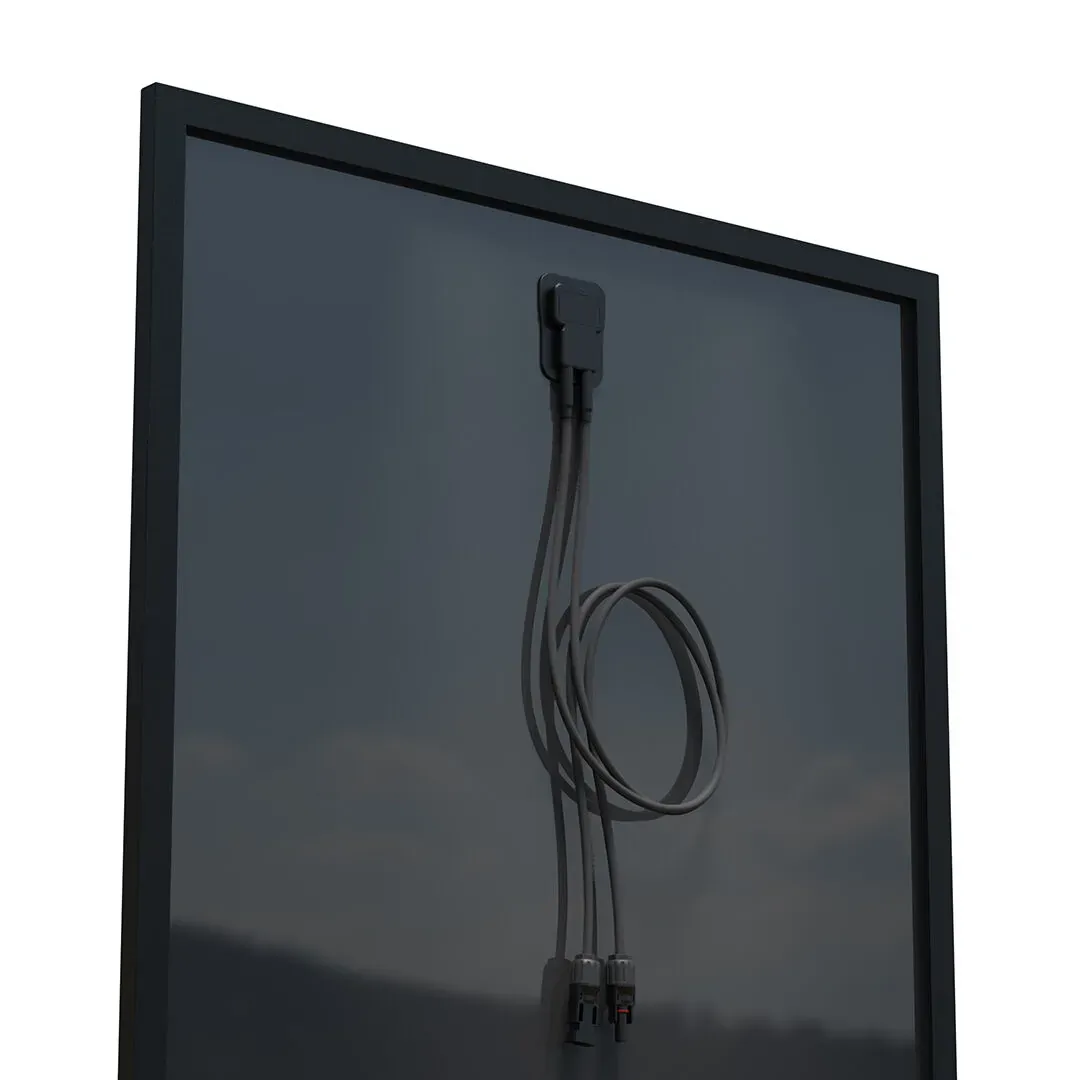

• 90 cm of 4 mm² cable with MC4 connectors, ready for your solar regulator or power station lead
• 10-year warranty

Mounting: brackets are optional

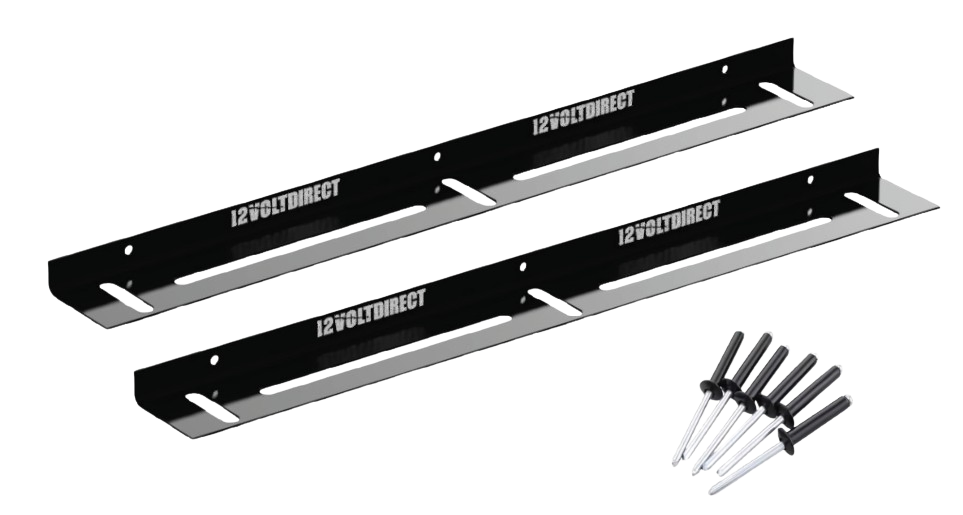

The panel is pre-drilled for our low-profile mounting brackets. Add them in the kit builder above: this 130W panel needs one pair (2 brackets). Brackets come in pairs with black pop rivets.

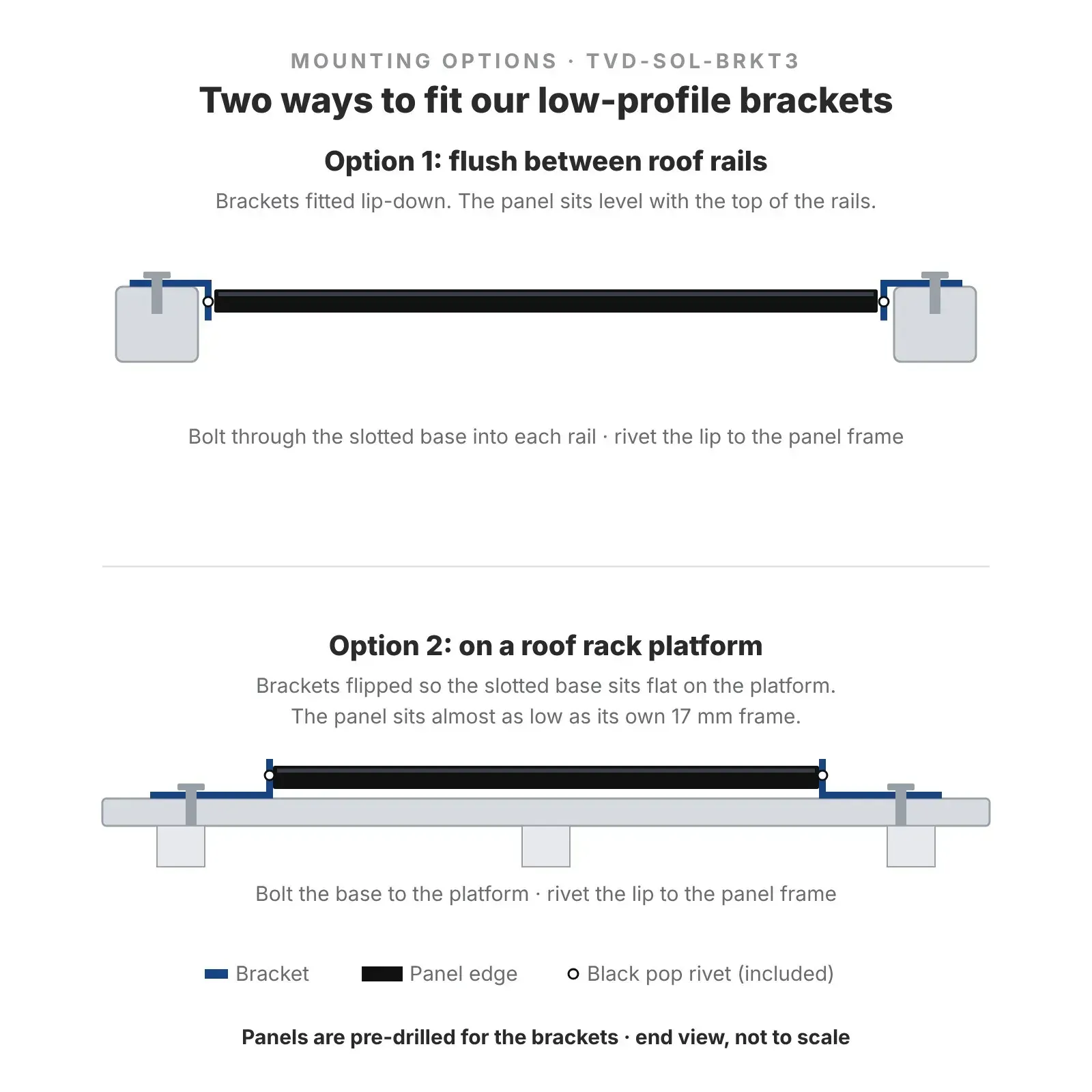

The brackets are laser-cut, folded aluminium in black and pop-rivet straight onto the panel. Fit them one of two ways:

• Flush between roof rails: fit the brackets lip-down, bolt the slotted base to each rail, and the panel sits level between them, like on the rooftop tent in our photos.
• On a roof rack platform: flip the brackets so the slotted base sits flat, then bolt down on a Rhino-Rack, Front Runner or similar platform. The panel sits almost as low as its own 17 mm frame, much lower than with standard Z-brackets.

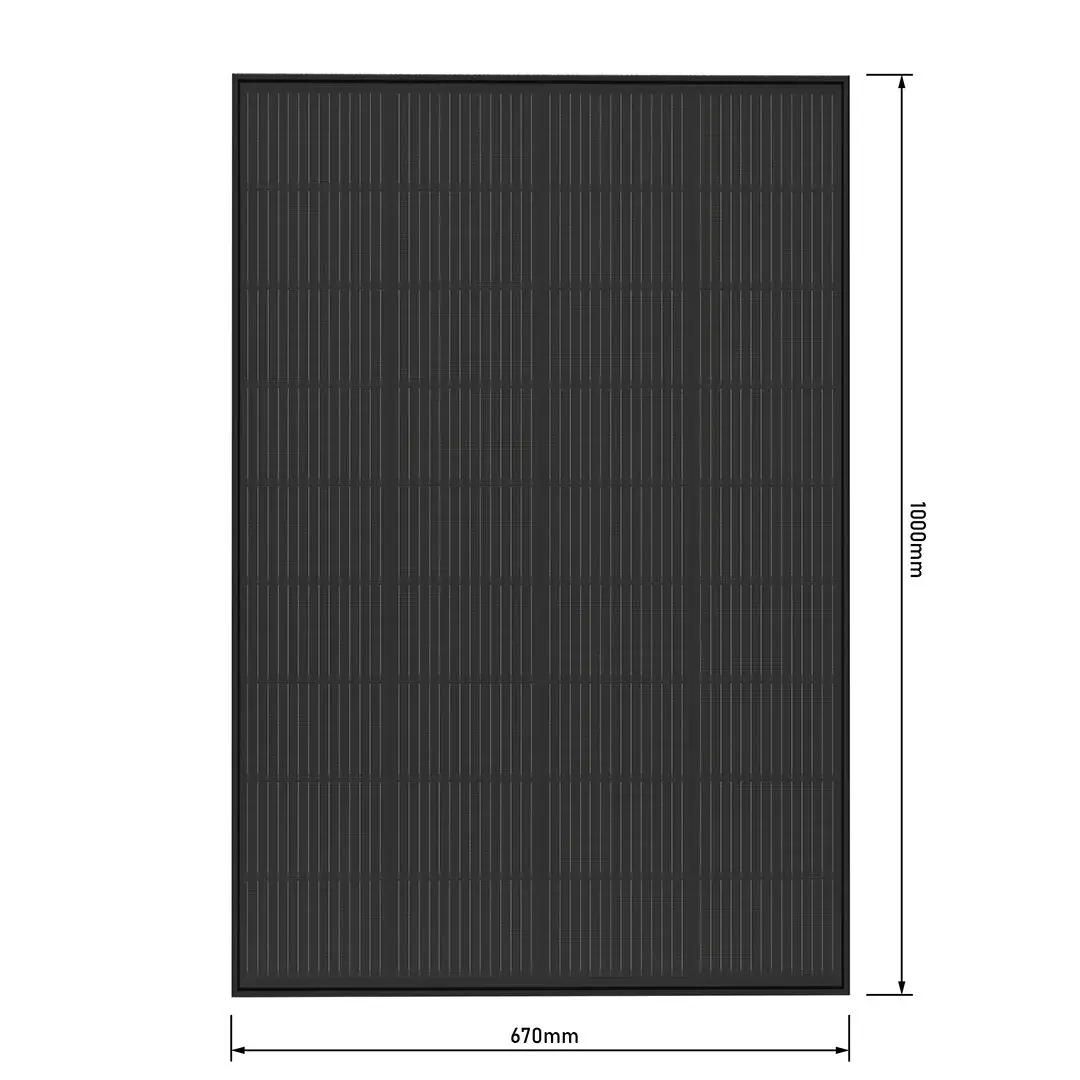

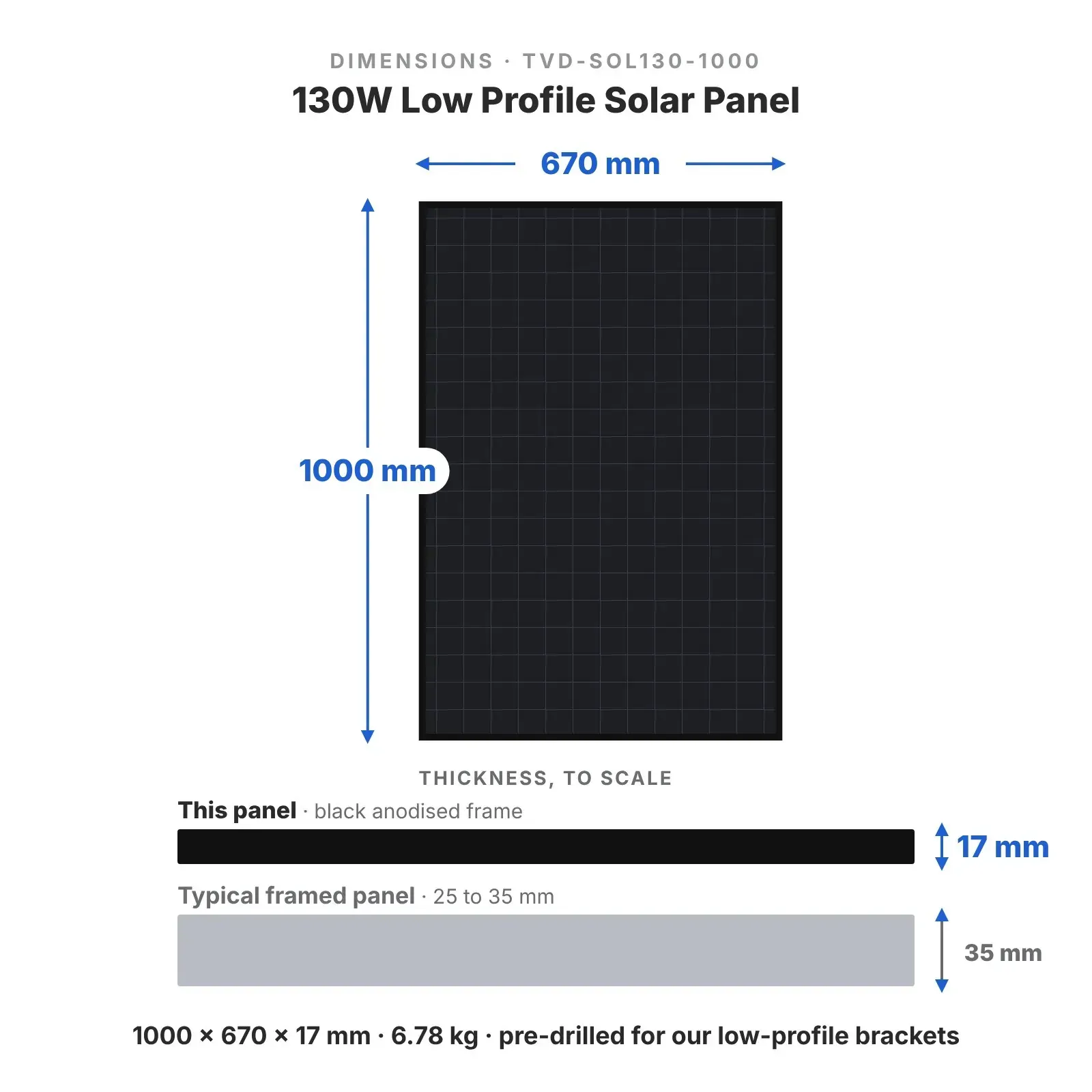

Dimensions
