Low-profile solar panel mounting brackets
The lowest, cleanest way to mount a solar panel. We designed these brackets for our 17 mm low-profile panels, which come pre-drilled to suit, so the brackets pop-rivet straight onto the frame. They’re laser-cut, folded aluminium in black and come as a pair with black pop rivets, so the finished install looks factory-made.

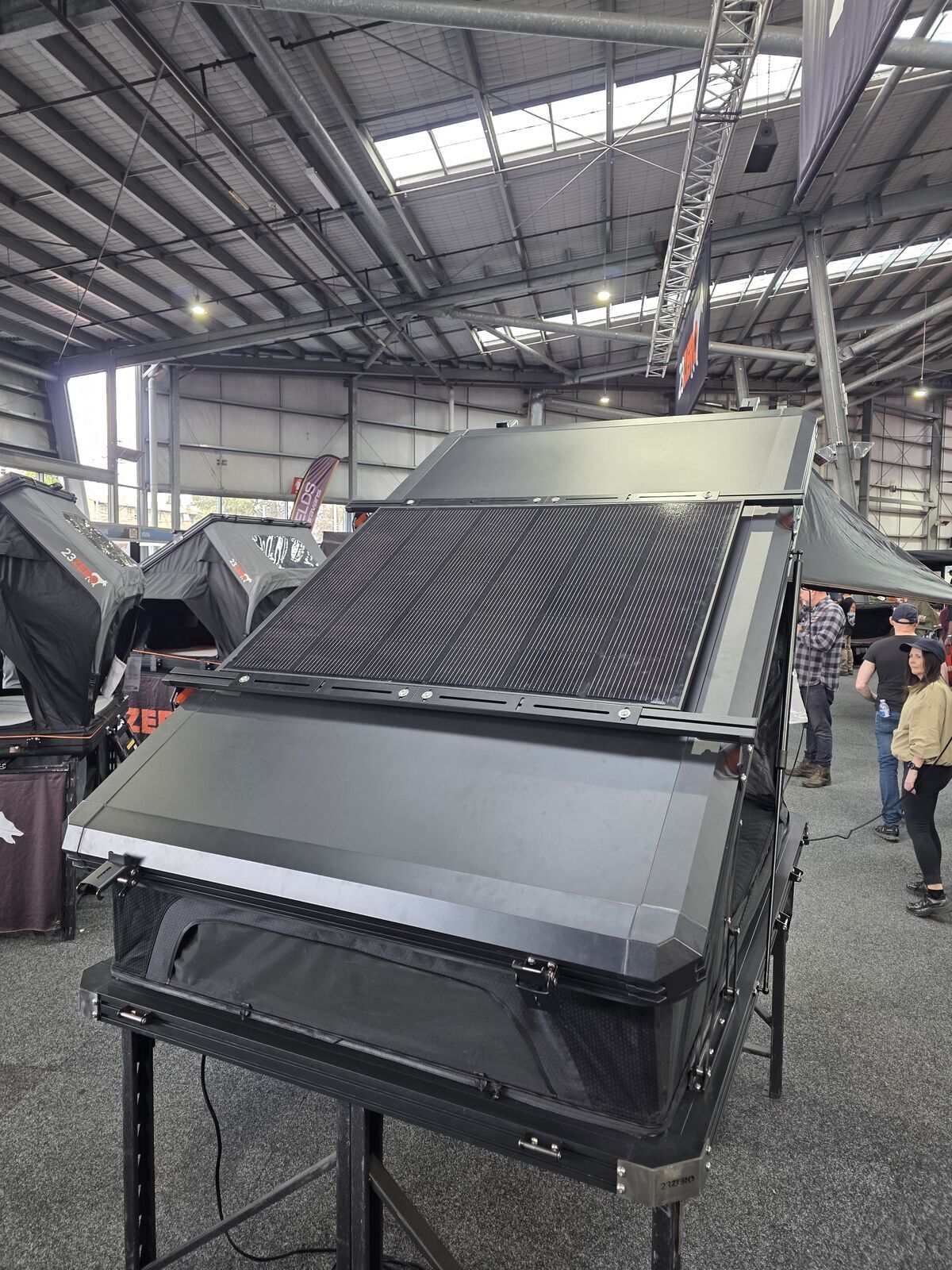

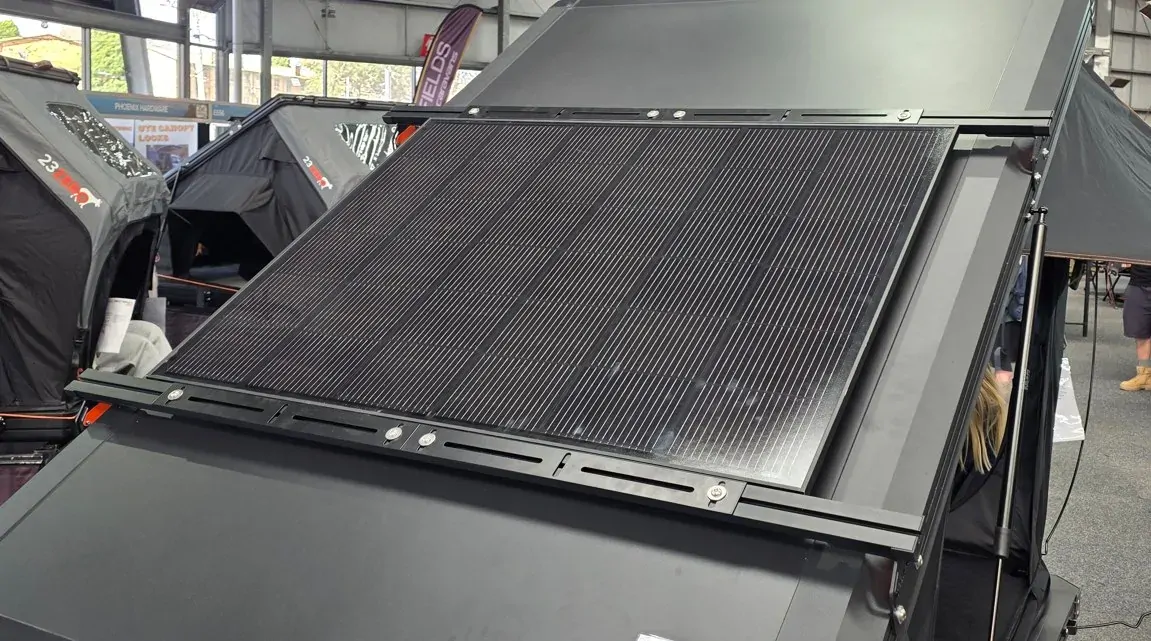

Fitted lip-down between roof rails on a rooftop tent
How many pairs do I need?
- ✓200W 1145 x 870 mm panel: 2 pairs (4 brackets)
- ✓200W 1480 x 680 mm panel: 2 pairs (4 brackets)
- ✓130W 1000 x 670 mm panel: 1 pair (2 brackets)
Two ways to mount
- ✓Flush between roof rails: fit the brackets lip-down, bolt the slotted base to each rail, and the panel sits level between them, like on the rooftop tent in our photos.
- ✓On a roof rack platform: flip the brackets so the slotted base sits flat, then bolt down on a Rhino-Rack, Front Runner or similar platform. The panel sits almost as low as its own 17 mm frame, much lower than with standard Z-brackets.

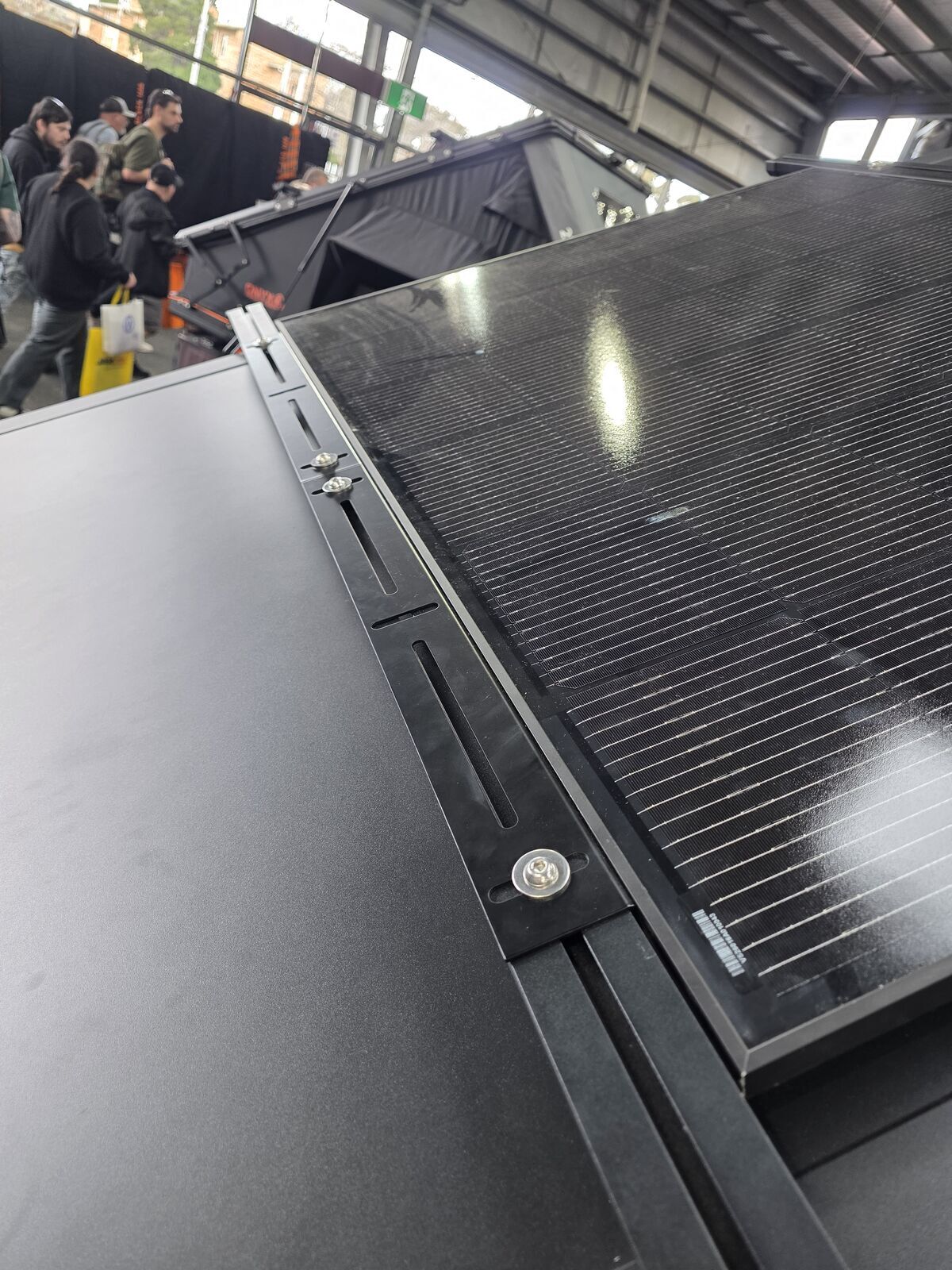

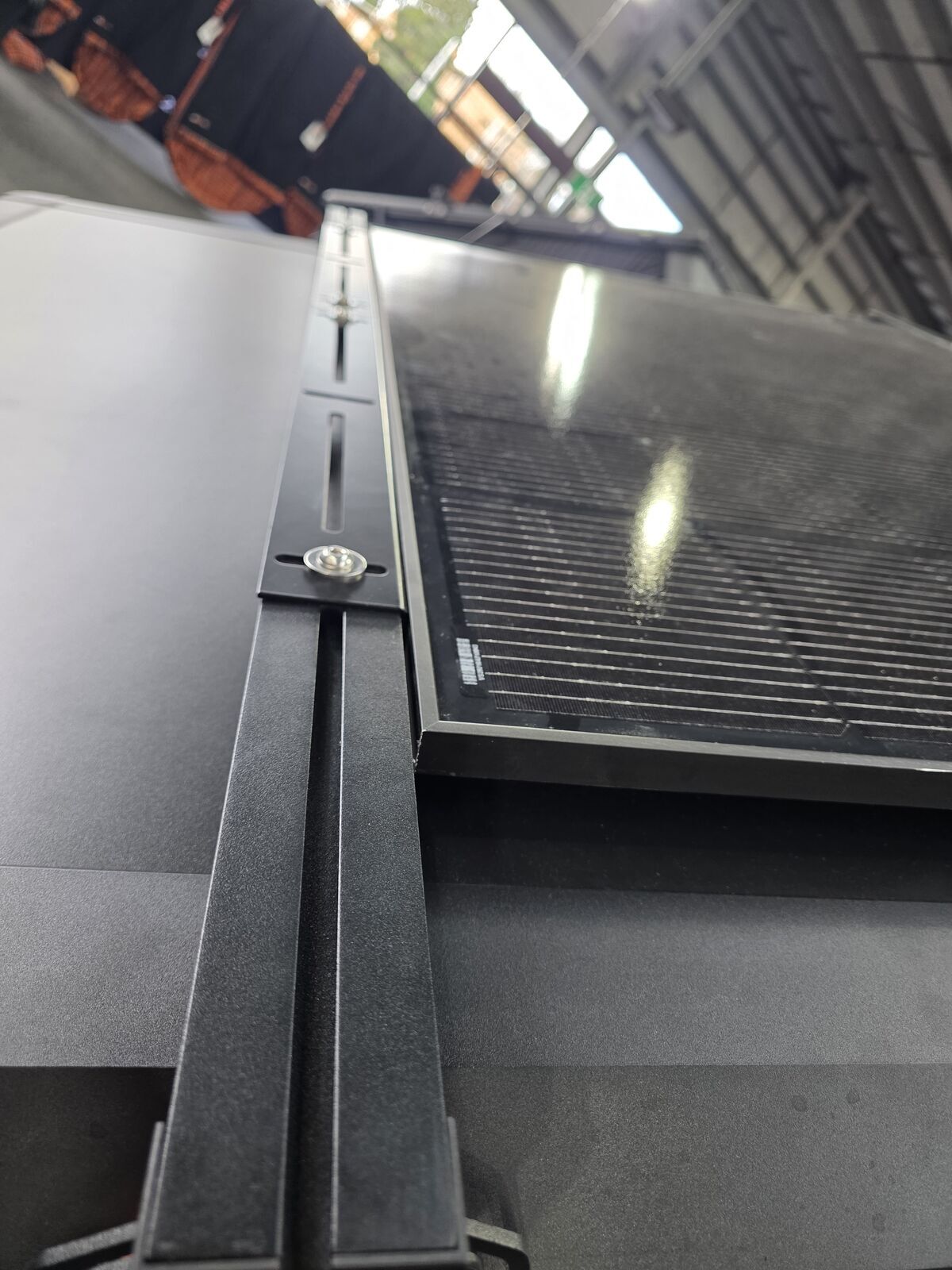

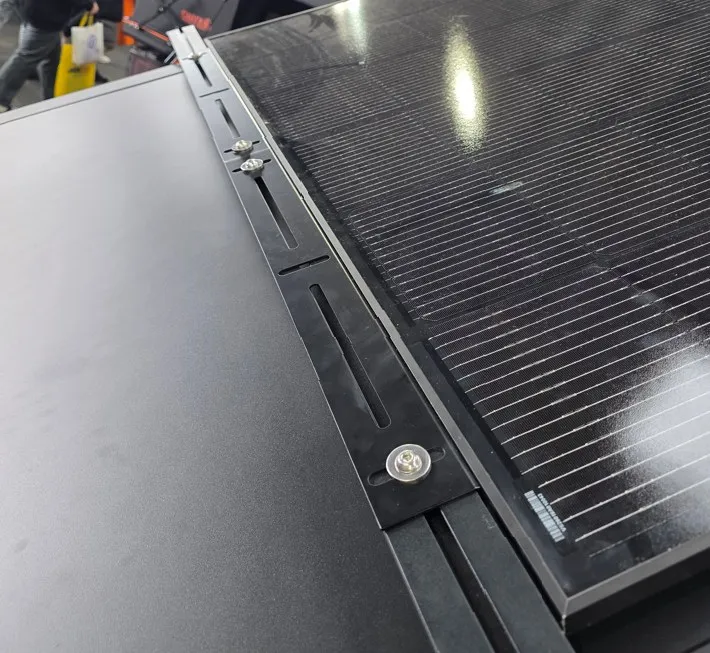

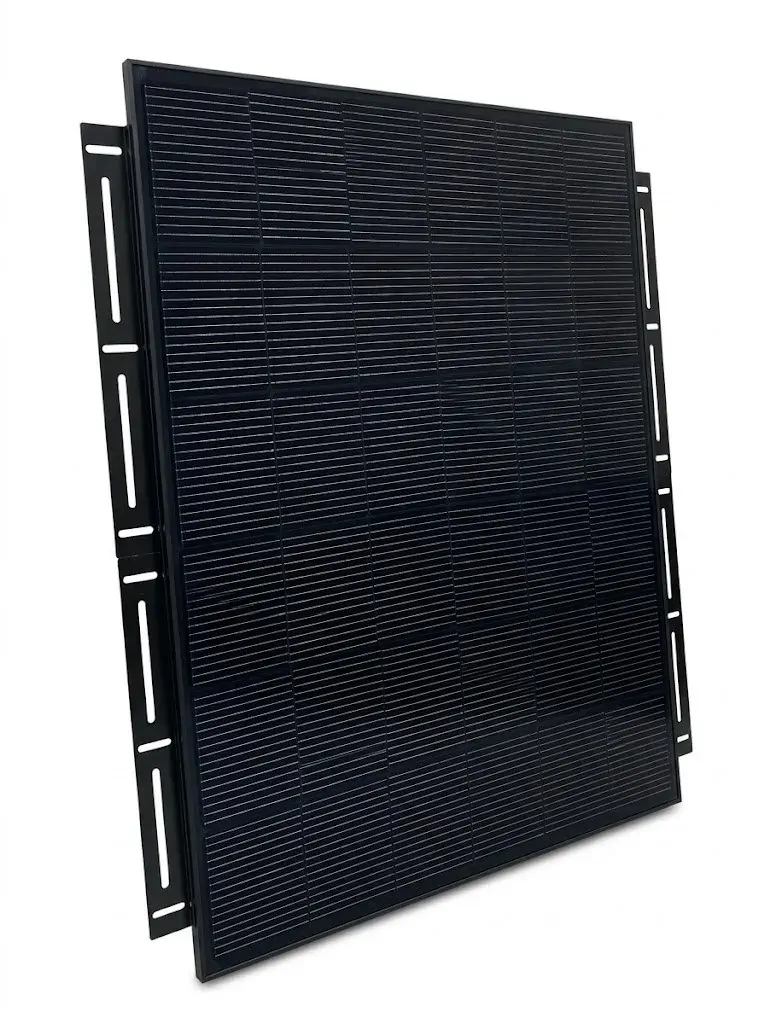

Close-up on the rooftop tent, and two pairs on the 1145 mm and 1480 mm panels
These brackets suit our pre-drilled 17 mm low-profile panels. Fitting them to another panel means drilling its frame for the rivets. Panels are sold separately.

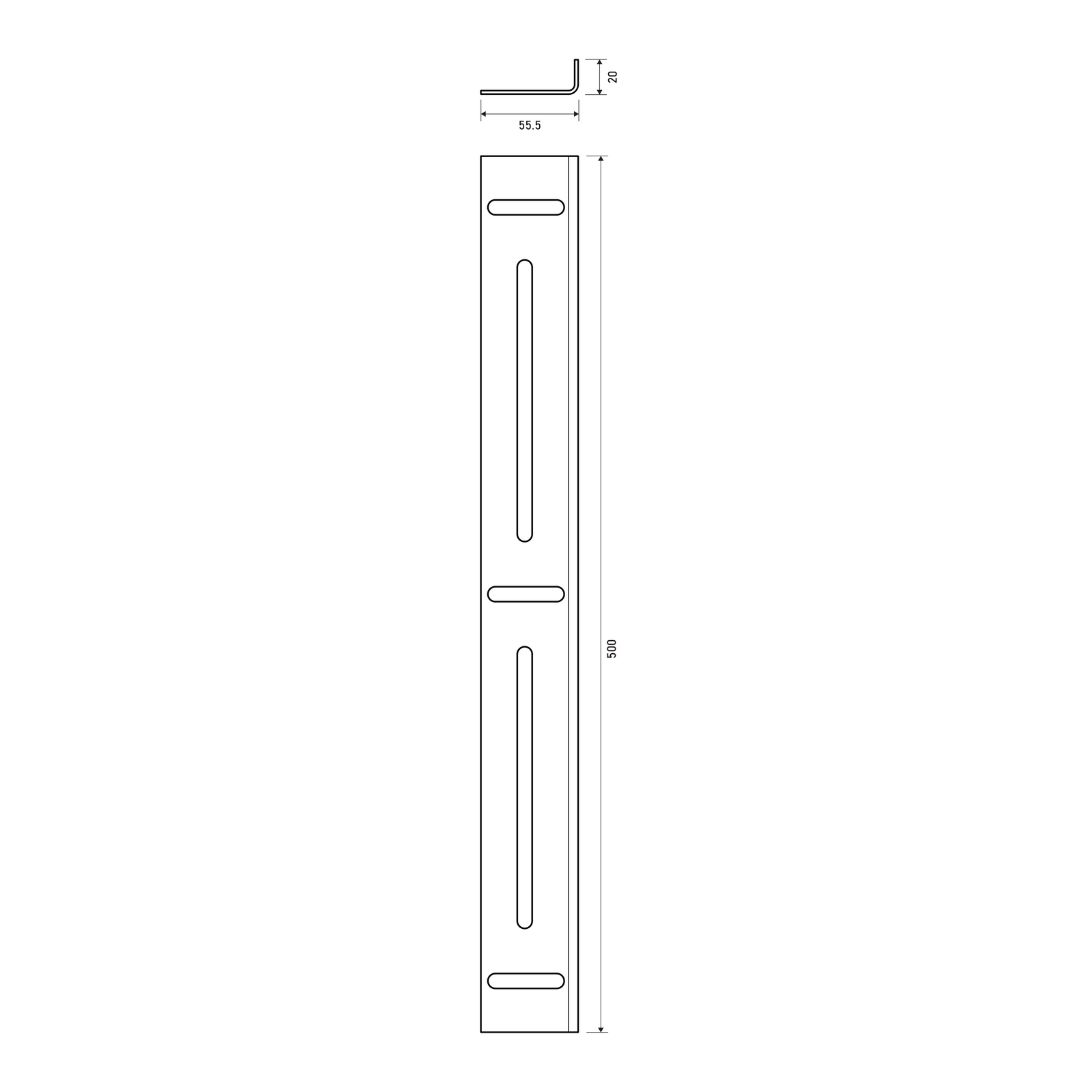

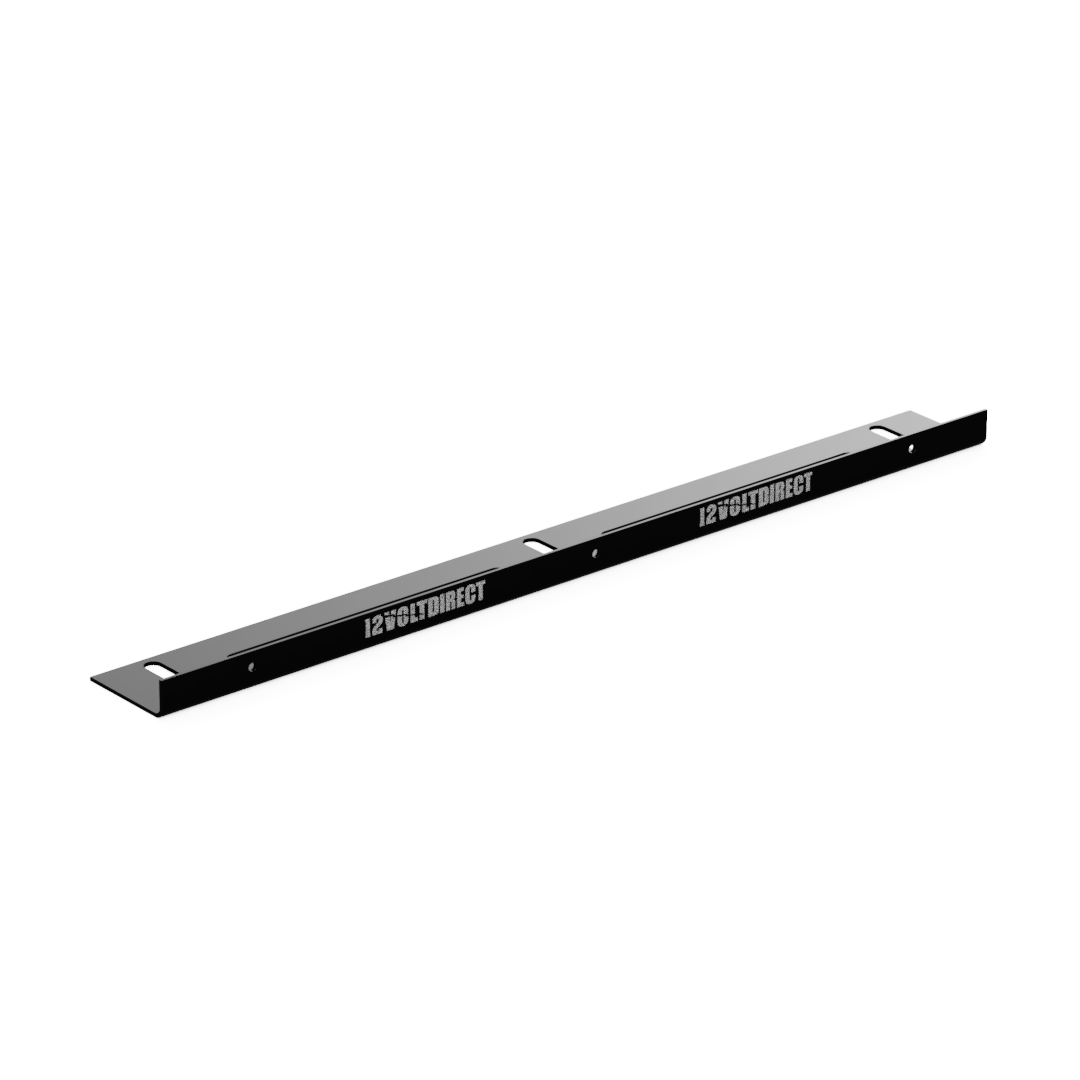

Dimensions
Why buy from us
Your local solar team
Get your panel, brackets and cabling sorted in one go, with advice from a local team. We ship Australia-wide.
✓Designed by us
These panels and brackets are our own 12 Volt Direct design, made to work together for the lowest, cleanest install you can get.
✓A real shop in Sydney
We’re a bricks and mortar store, not a faceless online warehouse. You can visit us, or pick up your order from our Sydney shop.
✓Talk to a real person in Australia
Call or message our Sydney team (details on our contact page). You’ll speak to someone local, not an overseas call centre.
✓Checked to fit
Tell us which panel and rack or tent you’re mounting to and we’ll confirm these brackets suit before they ship.
(TVD-SOL-BRKT3)
- ✓Made for our pre-drilled 17 mm low-profile panels: pop-rivet straight on

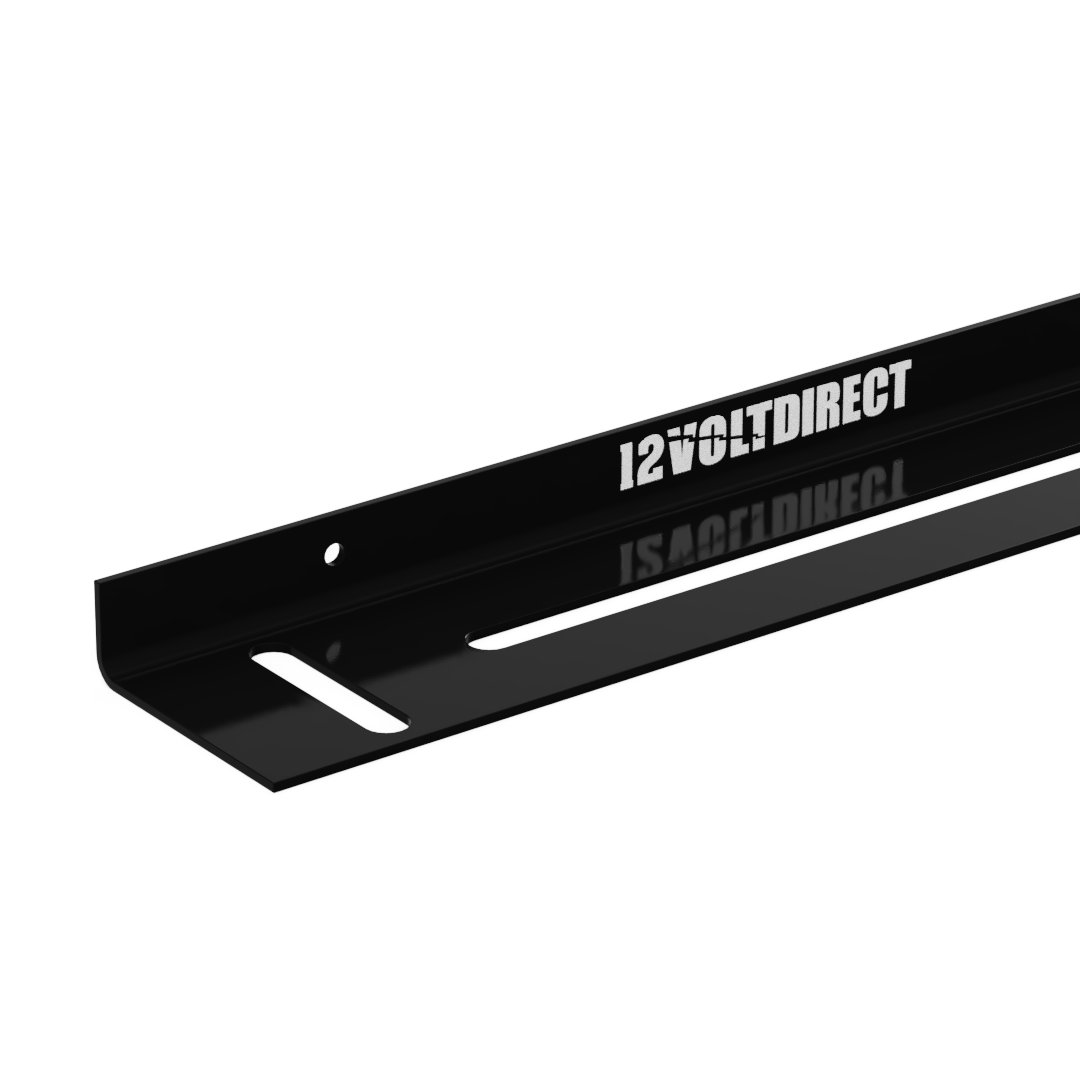

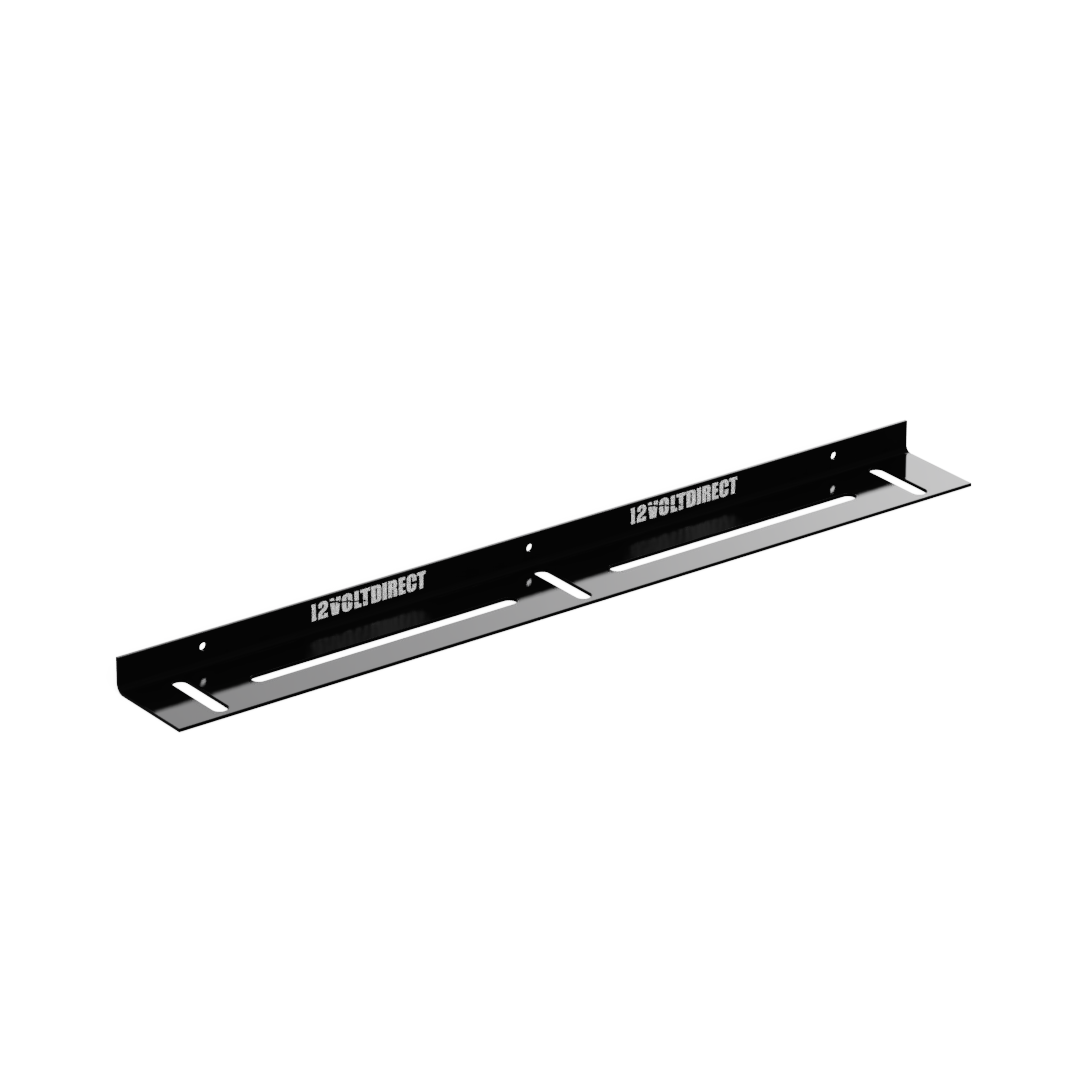

- ✓Laser-cut, folded aluminium with a black finish

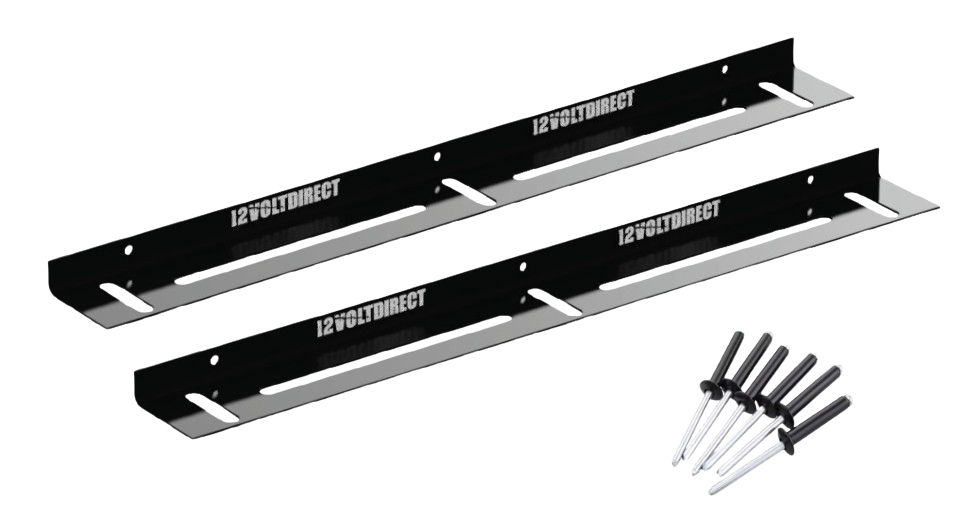

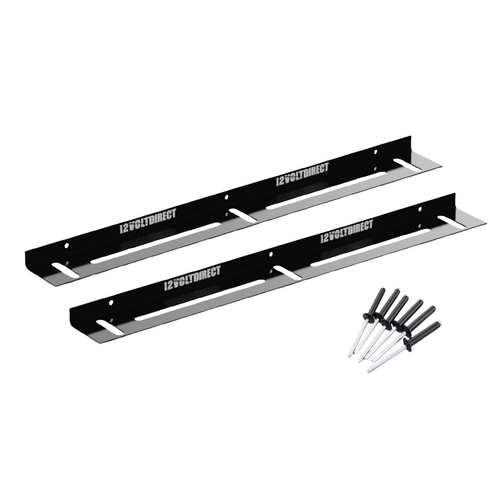

- ✓Sold as a pair, with black pop rivets
- ✓Two fitting options: flush between roof rails, or flat on a roof rack platform
- ✓Slotted base for flexible bolt positions
- ✓500 mm long, 55.5 mm wide base, 20 mm lip
| SKU | TVD-SOL-BRKT3 |
| Barcode # | 9359968003723 |
| Brand | 12 Volt Direct |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.050m |
| Shipping Length | 0.510m |
