12 Volt Direct
200W low-profile solar panel for rooftop tents

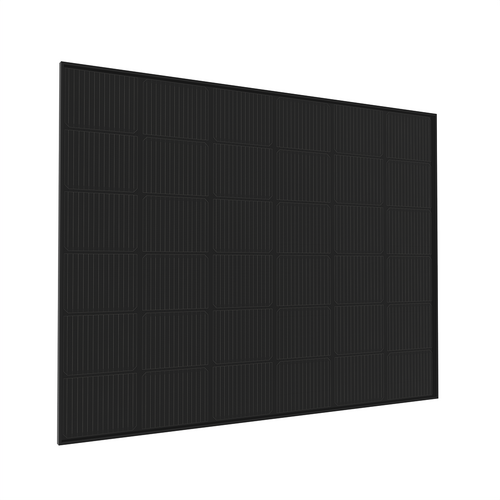

We designed this panel for rooftop tents. Most 200W panels are long and narrow, so they hang over a tent lid or crowd your roof rack. This one is a squarer 1145 x 870 mm, sized to sit neatly on a rooftop tent, and it’s only 17 mm thick.

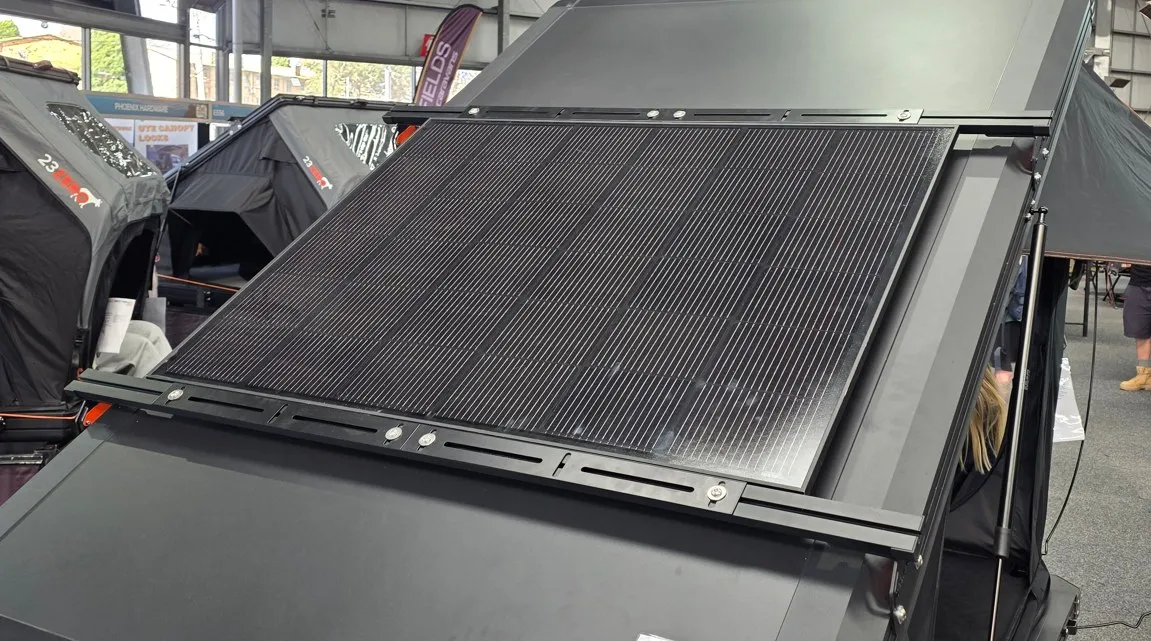

Shown on a rooftop tent with our optional low-profile brackets (sold separately)
Lower and cleaner than a standard panel
Most framed solar panels are 25 to 35 mm thick. Ours are 17 mm, with black cells, a black frame and a black backsheet, so the panel sits low and almost disappears on a black roof, rack or tent. Pair it with our low-profile brackets for the lowest-profile fixed panel setup you can get.
Built for the road
- ✓3.2 mm tempered glass with high light transmission, in an anodised aluminium frame
- ✓IP65 junction box keeps out dust and rain
- ✓90 cm of 4 mm² cable with MC4 connectors, ready for your solar regulator or power station lead
- ✓10-year warranty
Mounting: brackets are optional
Brackets are not included. The frame is pre-drilled for our low-profile mounting brackets, sold separately in pairs with black pop rivets. This 200W panel needs two pairs (4 brackets). Or choose the panel kit and add the brackets in one order.

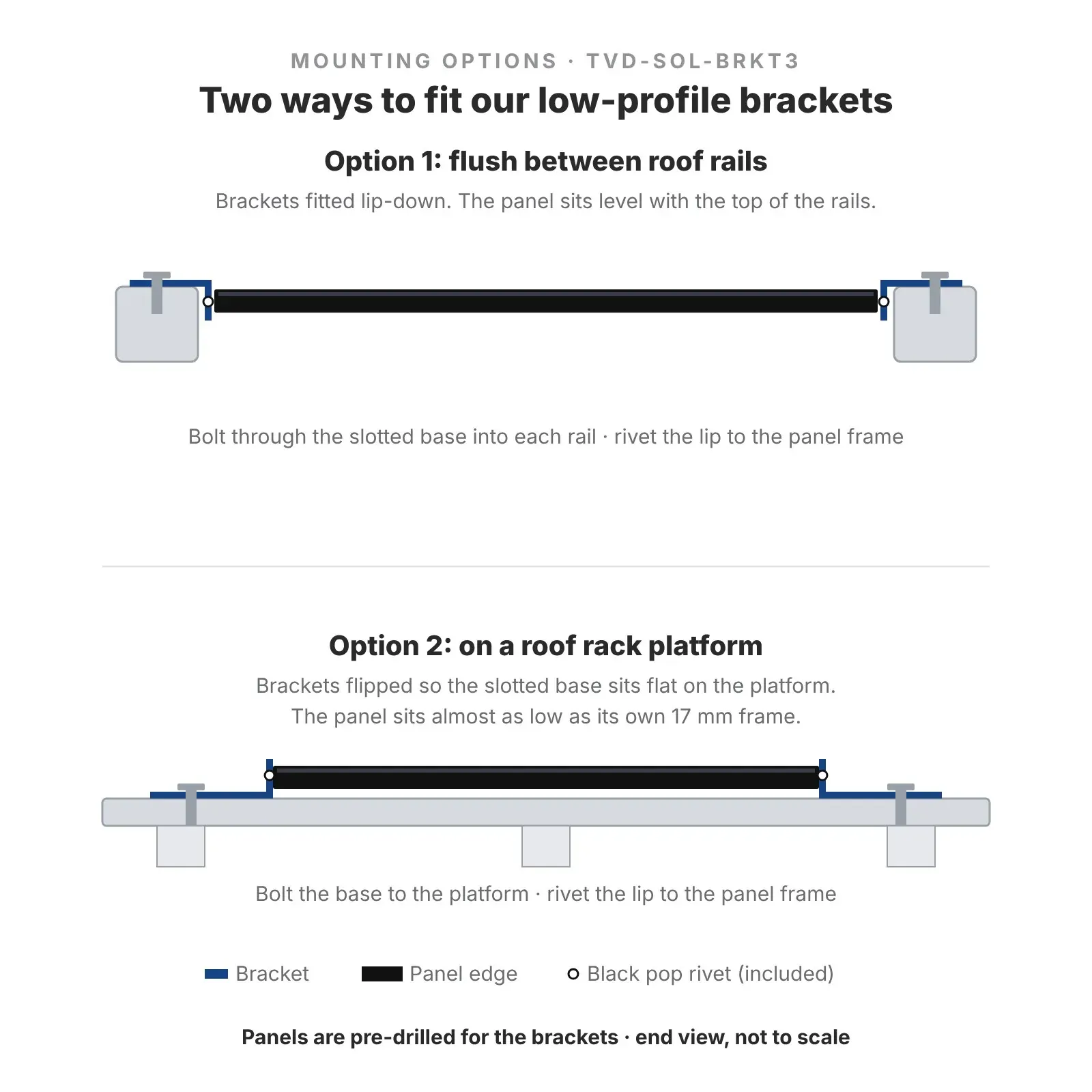

The brackets are laser-cut, folded aluminium in black and pop-rivet straight onto the panel. Fit them one of two ways:
- ✓Flush between roof rails: fit the brackets lip-down, bolt the slotted base to each rail, and the panel sits level between them, like on the rooftop tent in our photos.
- ✓On a roof rack platform: flip the brackets so the slotted base sits flat, then bolt down on a Rhino-Rack, Front Runner or similar platform. The panel sits almost as low as its own 17 mm frame, much lower than with standard Z-brackets.
Shown with two pairs of brackets fitted (sold separately)

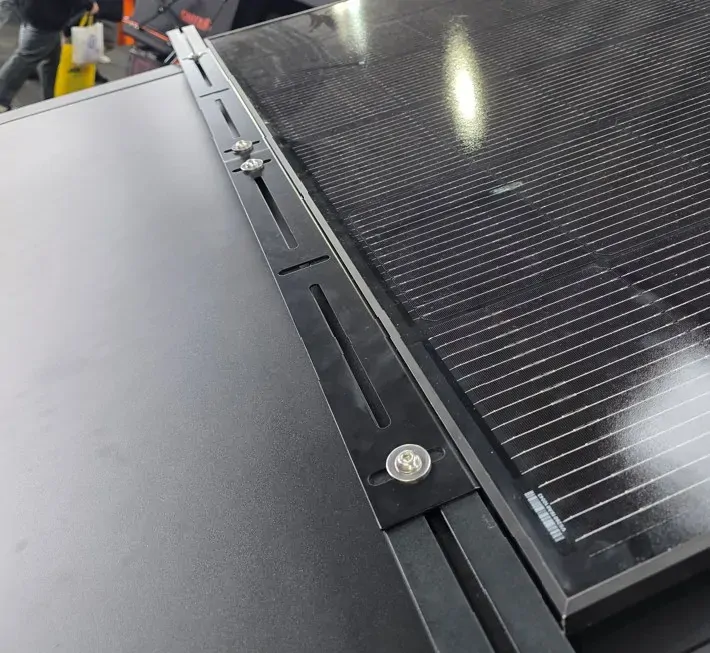

Low-profile bracket fitted to the panel frame (bracket sold separately)
This panel, with the option to add two pairs (4 brackets) of low-profile brackets in the same order.
Laser-cut black aluminium brackets with black pop rivets. Made for our 17 mm panels.

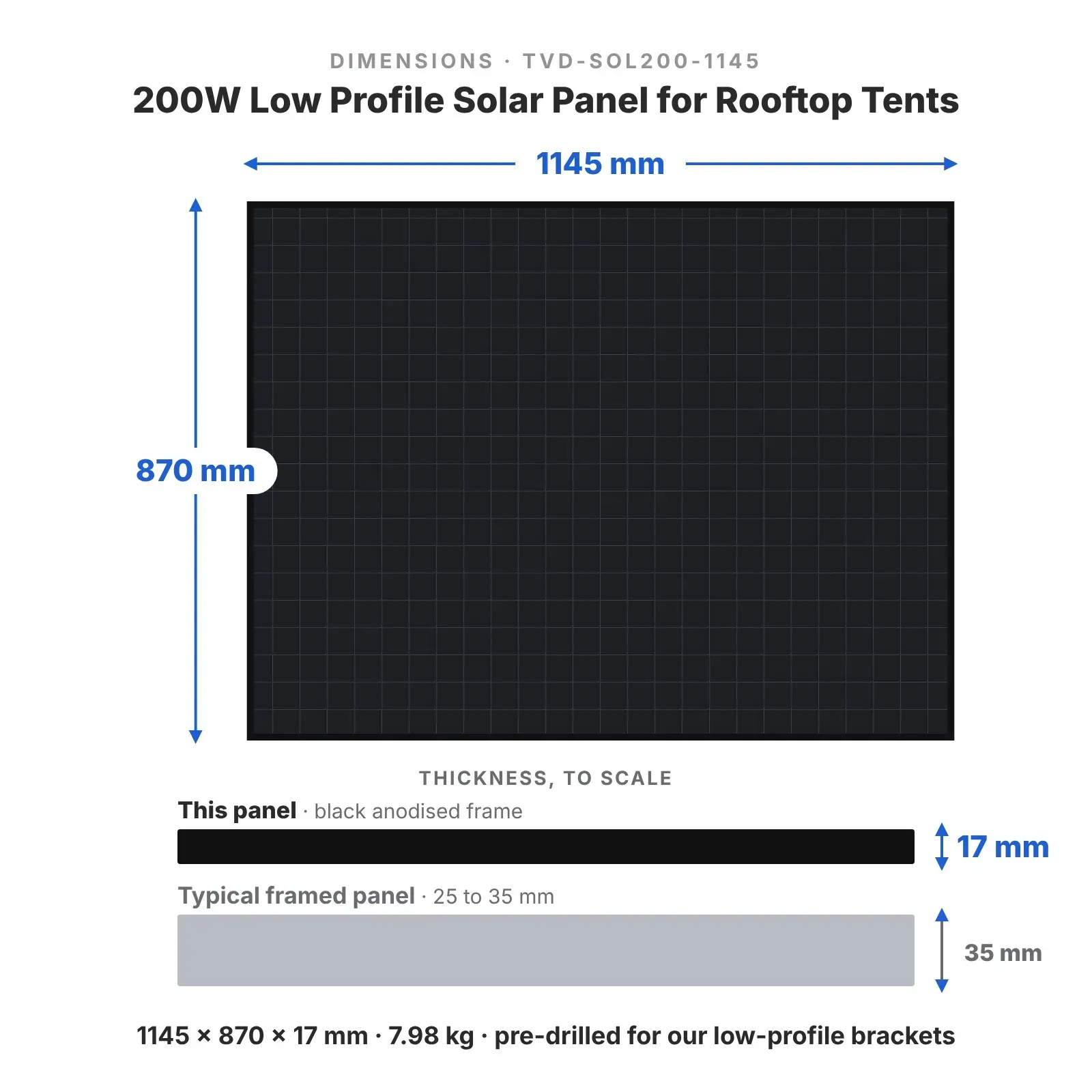

Dimensions
Why buy from us
Your local solar team
Get your panel, brackets and cabling sorted in one go, with advice from a local team. We ship Australia-wide.
✓Designed by us
These panels and brackets are our own 12 Volt Direct design, made to work together for the lowest, cleanest install you can get.
✓A real shop in Sydney
We’re a bricks and mortar store, not a faceless online warehouse. You can visit us, or pick up your order from our Sydney shop.
✓Talk to a real person in Australia
Call or message our Sydney team (details on our contact page). You’ll speak to someone local, not an overseas call centre.
✓Help with your setup
Not sure how to wire it to your battery or power station, or which regulator to use? Ask us and we’ll help you get it right.
(TVD-SOL200-1145)
- ✓200W monocrystalline panel, 1145 x 870 mm
- ✓Only 17 mm thick: most framed panels are 25 to 35 mm
- ✓All-black cells, frame and backsheet
- ✓Pre-drilled for our low-profile brackets (pop-rivet straight on)
- ✓3.2 mm high-transmission tempered glass
- ✓IP65 junction box
- ✓90 cm 4 mm² cable with MC4 connectors
- ✓10-year warranty
| SKU | TVD-SOL200-1145 |
| Barcode # | 9359968002207 |
| Brand | 12 Volt Direct |
| Shipping Weight | 10.5300kg |
| Shipping Width | 1.170m |
| Shipping Height | 0.040m |
| Shipping Length | 0.900m |
| Shipping Cubic | 0.042120000m3 |
