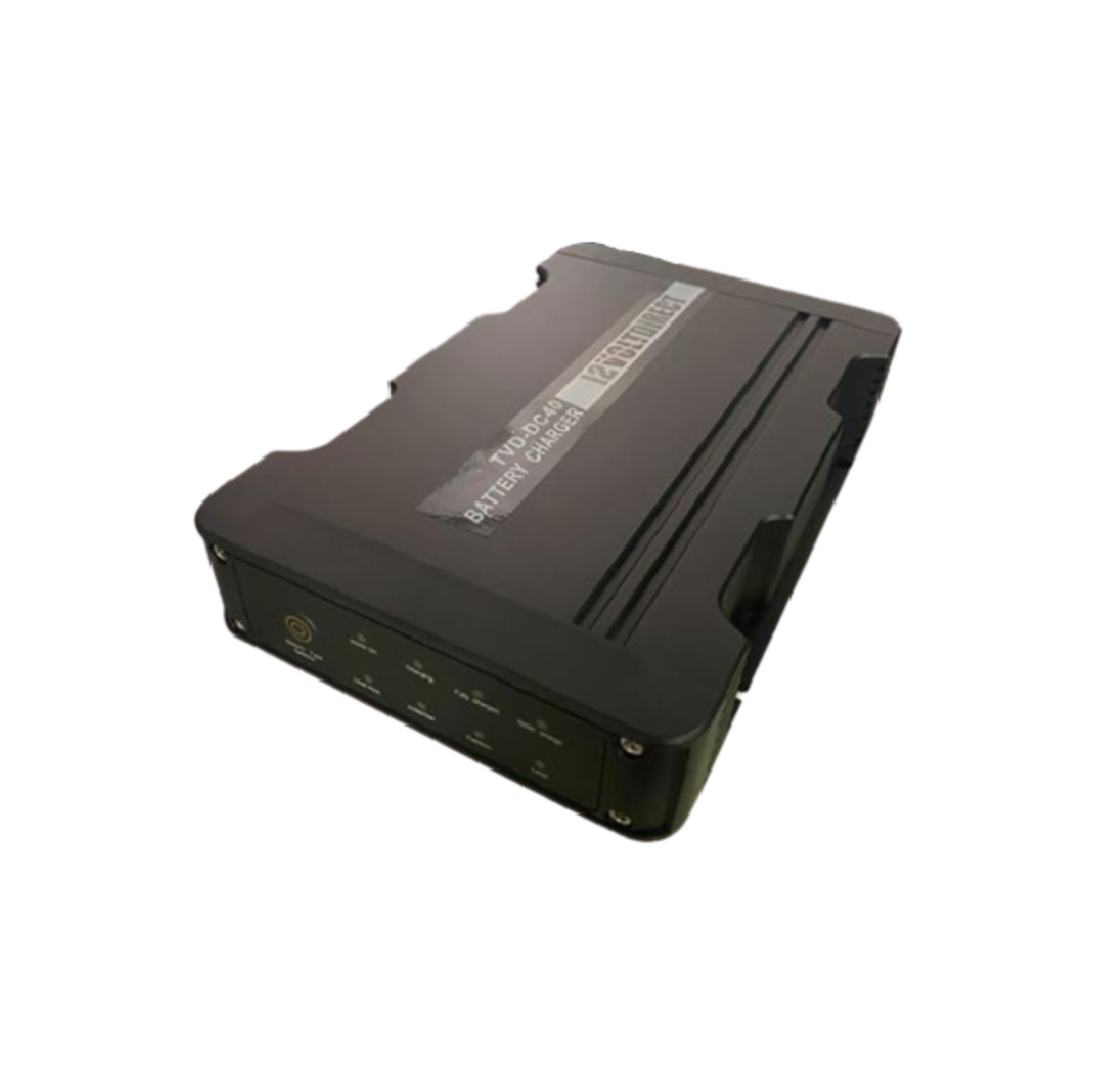

40A DC-DC LiFePO4 Battery Charger with MPPT Solar

Brand: 12 Volt Direct

Part number: TVD-DC40

Recommended retail price $399.95 inc GST

Login to see dealer pricing

DETAILS


Overview

FEATURES

  • Heavy-duty Aluminium case and mounting brackets

  • Microchip monitoring and control

  • Fully automatic high-frequency multi-stage charging

  • Pulse mode technology that reduces oxidation, evens electrolyte consistency and minimises temperature equating to longer battery life.

  • Easy push-button chemistry select: AGM/Gel, Calcium, Lion, Lead-Acid Batteries

  • Internal charger temperature monitoring and power output control

  • LED Indicators showing state of charge

  • Overcharging, short circuit and over-temperature protection

  • Input and output reverse polarity protection

  • Thermal overload protection

  • Solar input overload protection

  • Power cut memory function: once selected, the charger will remain on this battery type until it is changed

  • 2 Years Warranty

All-in-one chargers which have multiple charge settings to suit different sized batteries and charging requirements. Capable of recharging the battery and maintaining the charge state indefinitely, they are particularly well suited to being continuously connected to a battery. Some models also have additional functions such as rapid boost charging and can also be used as a general purpose high current power supply. For further information see these types of possible charging states *may not be applicable to the unit you are viewing *
BATTERY TEST - Checks battery to ensure it's ready for charging, polarity of leads etc.
DESULPHATION: Detects sulfated batteries. Pulsing current and voltage, removes sulfate from the lead plates of the battery restoring the battery.
SOFT START: Initial battery test to determine battery condition. Ift he battery is severely discharged, charger will begin the Soft Start stage. Charging starts with reduced current until battery voltage reaches a normal condition for charge.
BULK MODE: Major charging stage where the battery receives the majority of its charge. During this stage the battery is charged to up to 80% capacity.
ABSORPTION MODE: Completes the charge up to virtually 100% at a slower charge rate to protect the batteries working life.
RECONDITION MODE: Select “Recondition” mode, charges at higher voltage to recondition the sulfate of the battery to save battery life.
ANALYSIS: Tests if the battery can hold charge. Batteries that cannot hold charge may need to be replaced.
FLOAT: Low constant voltage, minimal charge current, battery is fully charged.
PULSE MODE: Maintaining the battery at 95-100% capacity. The charger monitors the battery voltage and gives


Features

40A DC-DC LiFePO4 Battery Charger MPPT 12V Dual Battery System Kit Solar Compatible Brand: 12 Volt Direct SKU: TVD-DC40

Product Details

SKU TVD-DC40
Barcode # 0702785125465
Brand 12 Volt Direct
Shipping Weight 1.3000kg
Shipping Width 0.210m
Shipping Height 0.060m
Shipping Length 0.310m
Shipping Cubic 0.003100000m3

(TVD-DC40)
