Perception Lighting Adventure Series 7" LED Driving Lights
Brand: Perception Lighting
Part number: ADVENTURE-7
DETAILS
Overview
Compact driving lights with real reach
The Adventure 7" is a pair of 173 mm round LED driving lights with a combination beam. It reaches 468 m to 1 lux down the road and still spreads light across the verges, so you see the road ahead and whatever is about to step onto it.
At 173 mm across they suit smaller bars, utes and SUVs where a big 9" light looks out of place, and they run cool, sealed and quiet for years of night driving.


Why the Adventure Series
Big light, sensible price
The Adventure Series is our entry into proper driving lights. You get the same thinking that goes into our Apex range (quality LEDs, an efficient reflector and a sealed housing) at a price that suits a first set of spotties or a work ute.
- ✓See further: pick up roos, cattle and signs well before your high beams do
- ✓See wider: the combination beam lights the shoulders, not just the centre line
- ✓Fit and forget: IP68 sealed for river crossings, dust and wash bays

Beam

468 m to 1 lux
The Adventure 7" reflector was designed and tested to put the light where you need it: a strong centre for distance, with plenty of flood either side. The lux diagram shows the pair reaching 1 lux at 468 m.
1 lux is the industry yardstick for usable light on the road, so it is the fair way to compare driving lights.
Fitting
Straightforward to fit

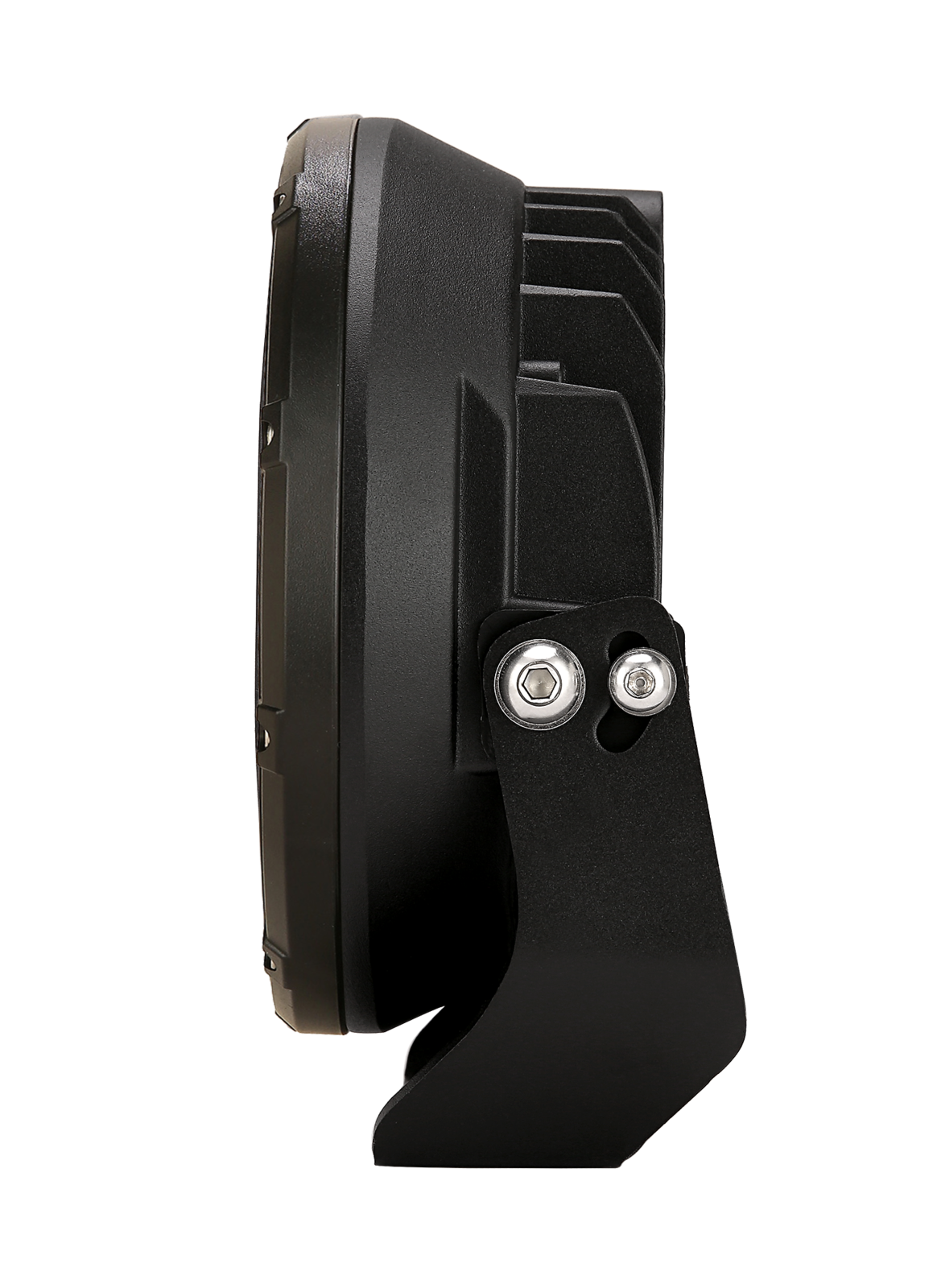

Each light sits on an adjustable bottom-mount bracket that bolts to most bull bars, nudge bars and light brackets. Deutsch plugs are supplied for a sealed, tidy connection.
Size: 173 mm across, 191 mm tall and 85 mm deep including the bracket.

Frequently asked questions
Is the Adventure 7" sold as a pair?
Yes. You get two lights, two brackets, two clear protective covers and Deutsch plugs.
Will they work on a 24 V truck?
Yes. They run on both 12 V and 24 V systems.
Do I need a wiring harness?
Yes. A driving light harness with a relay and switch is sold separately. If you are unsure what suits your vehicle, please contact our team.
Should I get the Adventure 7" or the Adventure 9"?
Choose the 7" for smaller vehicles and bars, or when you want a neat look. Choose the Adventure 9" for more light (14,600 lumens per light) and longer reach (810 m to 1 lux).
Features
- ✓9,600 lumens per light, 6000K daylight white
- ✓1 lux at 468 m and 0.25 lux at 936 m
- ✓Combination beam: long reach plus roadside spread
- ✓Reflector rated at 97% efficiency
- ✓IP68 waterproof

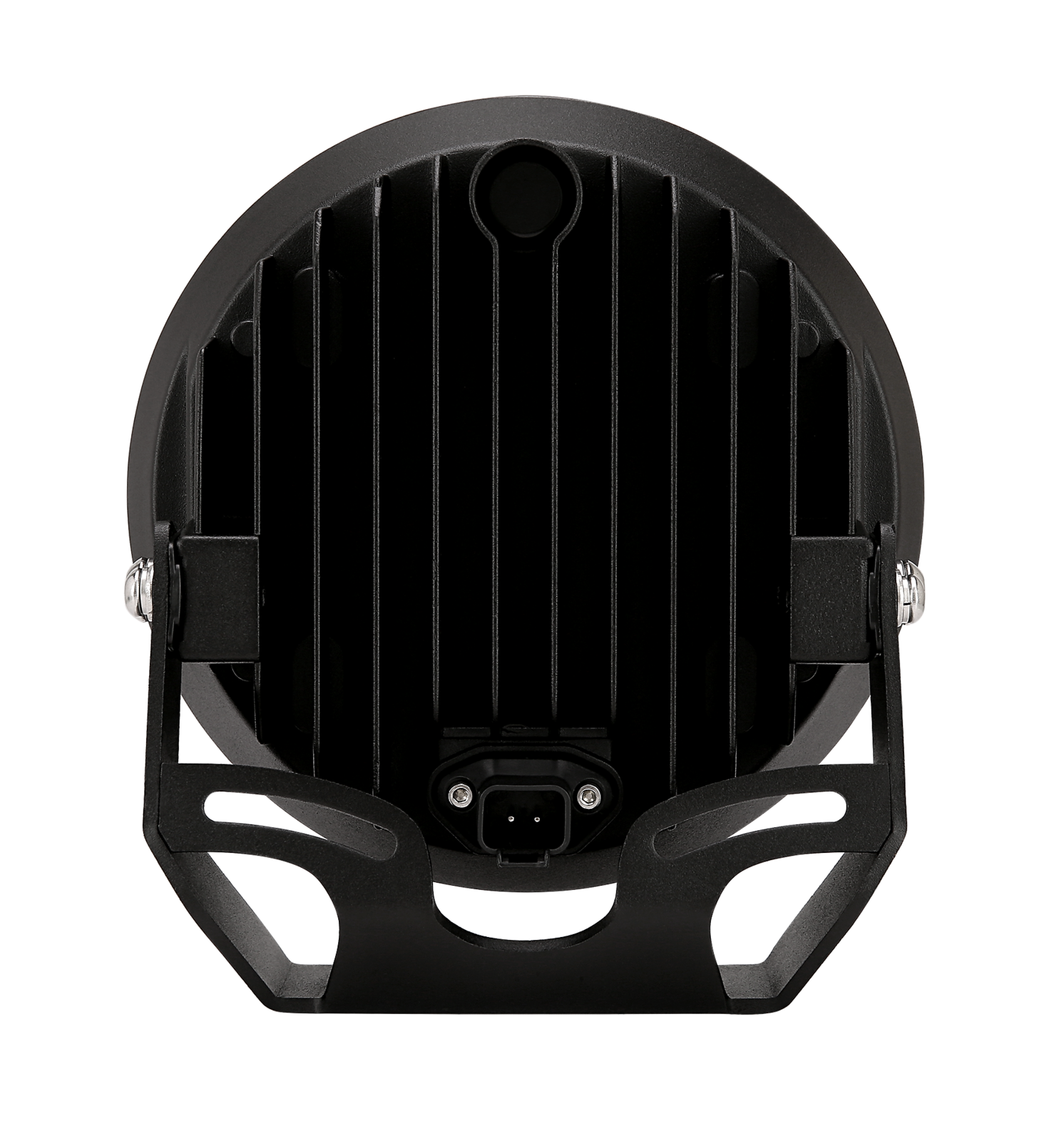

- ✓Oversized heatsink keeps the LEDs cooler
- ✓Polycarbonate lens that resists stone hits
- ✓Adjustable bottom-mount bracket, Deutsch plugs
Specifications
Performance
| Light output | 9,600 lumens per light |
| Beam distance | 1 lux at 468 m; 0.25 lux at 936 m |
| Beam pattern | Combination (driving) |
| LEDs | 32 x 5 W |
| Colour temperature | 6000K |
| Current draw | 5.8 A at 12 V |
| Operating voltage | 12 V and 24 V systems |
| LED lifespan | 50,000 hours |
Build
| Diameter | 173 mm |
| Height | 191 mm including bracket |
| Depth | 85 mm including bracket |
| Housing | Aluminium with oversized heatsink |
| Lens | Polycarbonate |
| Waterproof rating | IP68 |
| Mount | Adjustable bottom mount |
| Connector | Deutsch |
| Sold as | Pair |
What's Included
- 2 x Perception Lighting Adventure 7" Adventure Series LED driving lights
- 2 x bottom-mount brackets
- 2 x clear protective covers
- Male and female Deutsch plugs
Product Details
| SKU | ADVENTURE-7 |
| Barcode # | 702785126448 |
| Brand | Perception Lighting |
| Type | Lighting |
| Sku | ADVENTURE-7 |
| Shipping Weight | 5.5900kg |
| Shipping Width | 0.460m |
| Shipping Height | 0.180m |
| Shipping Length | 0.270m |
| Shipping Cubic | 0.022356000m3 |
