Starlink Mini 12V to 30V Step Up Voltage Booster Power Supply with Anderson Plug

12 Volt Direct – 12V to 30V DC Step-Up Converter with Anderson Plug (For Starlink Mini)

Keep your Starlink Mini online and stable with this heavy-duty 12V to 30V DC step-up converter, purpose-built by 12 Volt Direct for use in caravans, 4WDs, and off-grid battery systems.

Equipped with a pre-wired Anderson plug input, this model is ideal for connecting directly to your auxiliary battery or 12V power system — no cigarette sockets, no voltage instability.

Why It’s Needed

The Starlink Mini requires a consistent voltage above 12V to operate reliably. But in real-world 12V systems, voltage drop is inevitable — especially with long cable runs, current draw over 5A, or undercharged batteries.

This converter eliminates that risk by boosting the input voltage up to a stable 30V DC, ensuring your Starlink dish always receives what it needs — even if your 12V source dips below spec.

Key Features

• Input Voltage: 9–15V DC (works with most 12V battery setups)

• Output Voltage: Regulated 30V DC / 2A (60W max) — factory set for Starlink Mini

• Connector Type: Anderson plug input for secure, high-current connection

• Output Lead: Starlink-compatible female barrel plug

• Efficiency: ≥92% at full load = less heat, less strain on your system

• Protections: Reverse polarity, over-current, short circuit & thermal shutoff

• Enclosure: 60 × 60 mm die-cast aluminium housing with built-in heat sink and potted internals for durability in harsh environments

Ideal For

• Off-grid caravan and camping systems

• 4WD and touring setups

• Battery boxes with Anderson plug outputs

• Remote installations requiring plug-and-play reliability

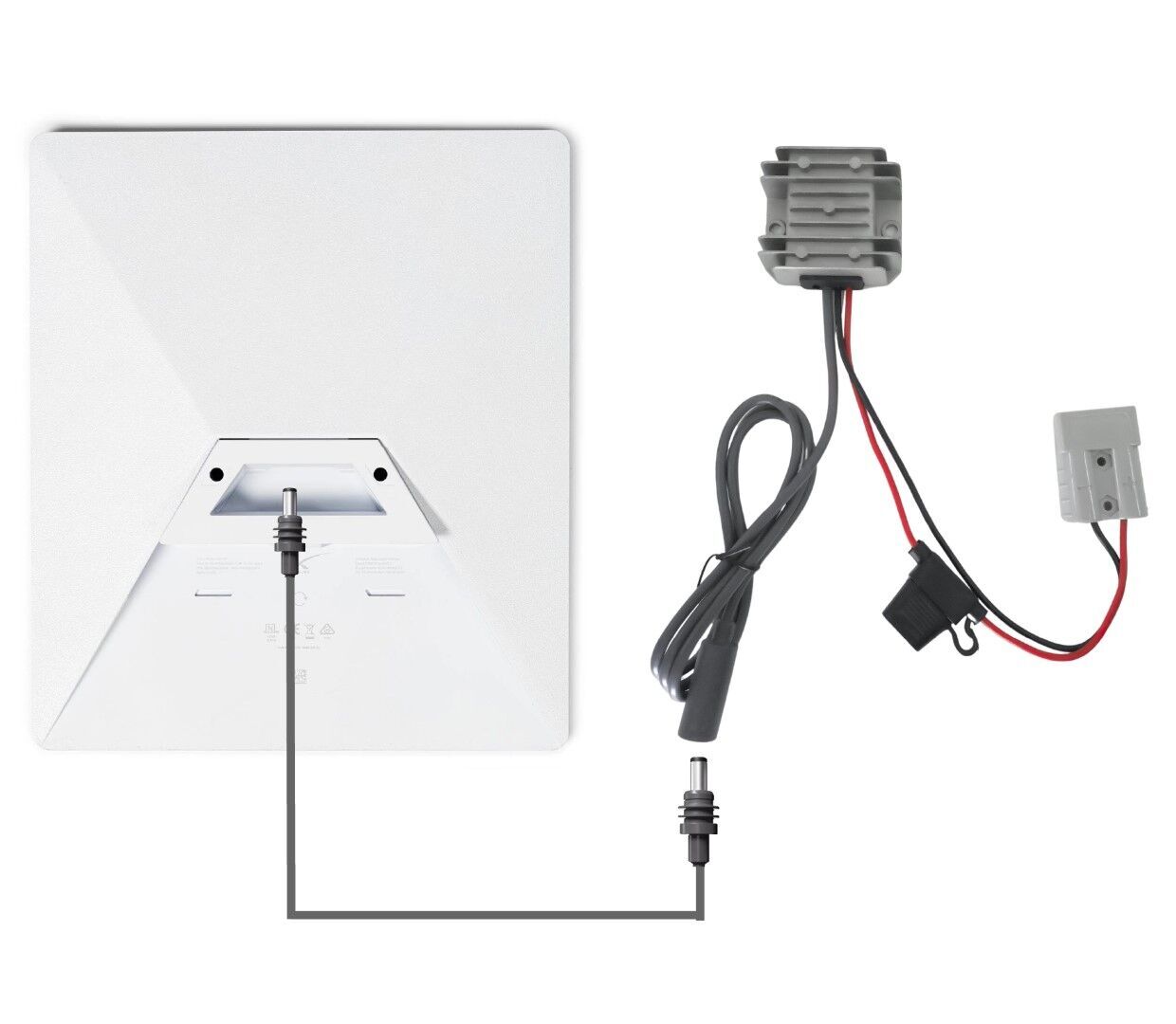

Quick Setup

1. Plug the Anderson connector into your 12V battery system or power box

2. Mount the converter in a ventilated location using adhesive, screws or Velcro

3. Connect your Starlink Mini using the included DC plug

4. You're done — reliable power with zero voltage drop issues

Purpose-built by 12 Volt Direct for Australian conditions.
Stay connected — even when your 12V system can’t keep up.
