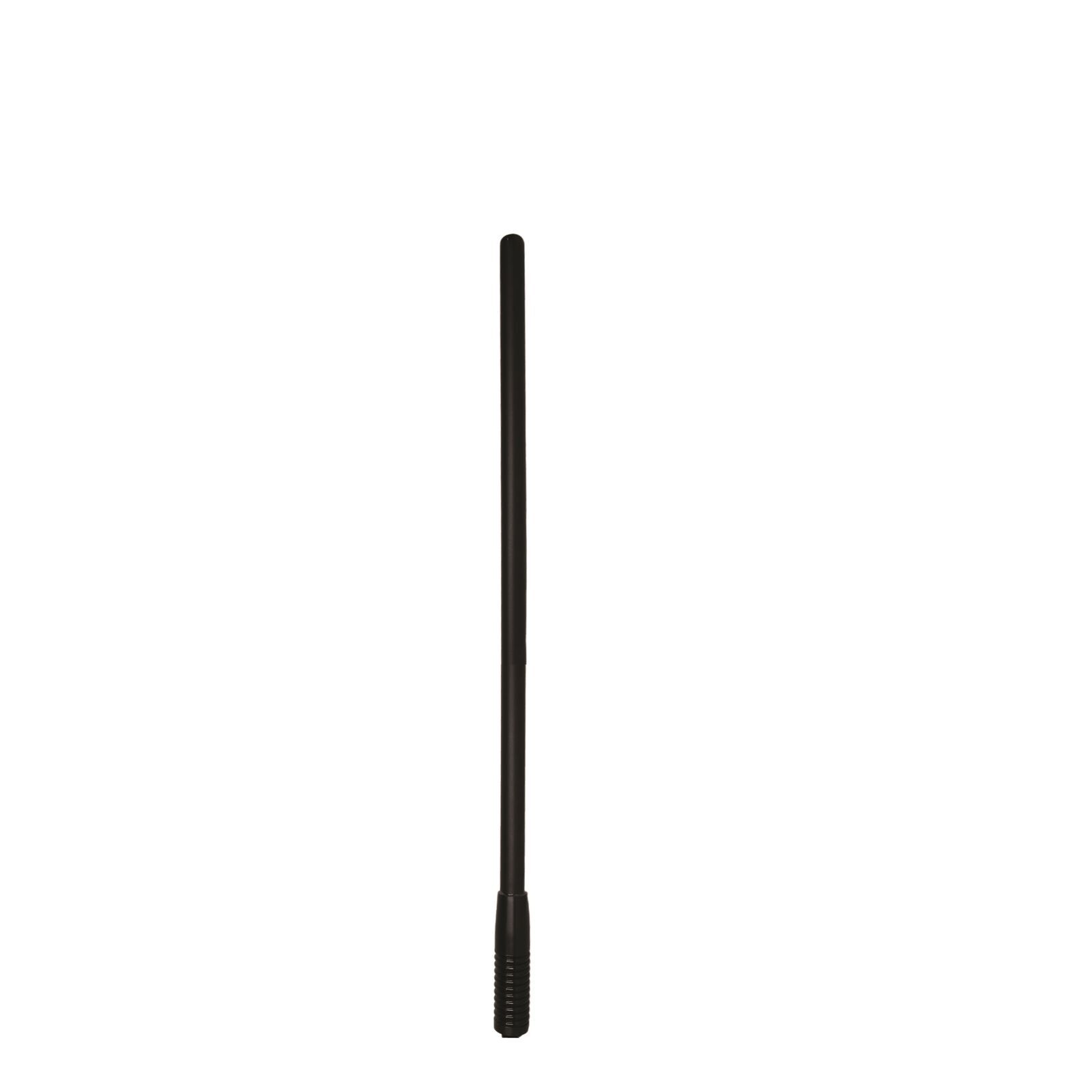

5G Cellular Antenna for Car & 4WD – 3-5dBi 680mm, Cel-Fi ROAM R41

Brand: Xtreme Antennas

Part number: ANT-XA-03

Recommended retail price $179.00 inc GST

Login to see dealer pricing

DETAILS


Overview

Compact 5G vehicle antenna
for the Cel-Fi ROAM R41.

A 680 mm heavy duty multi-band antenna covering 698-4800 MHz, with a direct SMA male plug for the Cel-Fi ROAM R41.

Xtreme 5G 3-5dBi Heavy Duty Cellular Antenna for Cel-Fi Go Roam R41 Nextivity
698-4800MHz
3-5dBiGain
680mmLong
4.5mLMR195 Cable

Built for the bush

Tough, short and ground independent

The spring base takes knocks off-road and the ground independent design works on a bull bar, mirror bracket or roof rack. At 680 mm it sits lower than a typical 900 mm whip.

  • ✓3G, 4G and 5G on Telstra, Optus and Vodafone
  • ✓Spring base with threaded stud
  • ✓Low-loss LMR195 cable
Cel-Fi ROAM R41 in use with a vehicle cellular antenna

Compatibility

  • ✓Cel-Fi ROAM R41
  • ✓Cel-Fi GO and modems with an SMA female port
  • ✓4WDs, utes, trucks and caravans

Not suitable for:

  • ✕Long-haul and fringe areas needing more gain: choose ANT-XA-04 (6-8dBi)

Tech specs

Frequency698-4800 MHz
Gain3-5dBi
Length680mm
Cable4.5m LMR195
ConnectorSMA male
MountSpring base with threaded stud
PolarisationVertical
ColourBlack
Warranty2 years
BrandXtreme Antennas

What’s included

Xtreme 5G 3-5dBi Heavy Duty Cellular Antenna for Cel-Fi Go Roam R41 Nextivity
  • ✓1 x 680mm antenna with spring base
  • ✓4.5m LMR195 cable with SMA male

Mounting bracket not included.

Simple installation

1Pick a spot

Mount on a bull bar, mirror bracket, roof rack or toolbox with clear sky around the antenna.

2Run the cable

Route the cable inside, away from sharp edges, and coil any spare loosely.

3Connect

Screw the SMA plug onto your booster or modem antenna port and power up.

Frequently asked questions

Do I need a ground plane?

No. It is ground independent, so it works on any bracket.

Does it need an adapter for the ROAM R41?

No. The SMA male plug connects directly.

Not sure what you need?

Tell us your booster or modem, where you are and what signal you get now, and we will help you pick the right antenna.

Contact our team

Features

Xtreme 5G 3-5dBi Heavy Duty Cellular Antenna for Cel Fi Go Roam R41 Nextivity Brand: Xtreme Antennas SKU: ANT-XA-03

Product Details

SKU ANT-XA-03
Barcode # 9359968001194
Brand Xtreme Antennas
Shipping Weight 0.9000kg
Shipping Width 0.090m
Shipping Height 0.090m
Shipping Length 0.760m
Shipping Cubic 0.005670000m3

(ANT-XA-03)

Xtreme Antennas was created to get the most out of Cel-Fi signal boosters in Australian conditions. Each antenna is designed for the 4G and 5G bands used on Australian networks and matched to Cel-Fi's performance, so installers get a complete, reliable system rather than a generic aerial. The rang...
