Folding Marine & Caravan 4G Antenna – 6-10dBi 600mm for Cel-Fi GO

Brand: Xtreme Antennas

Part number: ANT-XA-05

Recommended retail price $199.00 inc GST

Login to see dealer pricing

DETAILS


Overview

Folding cellular antenna
for caravans, RVs and boats.

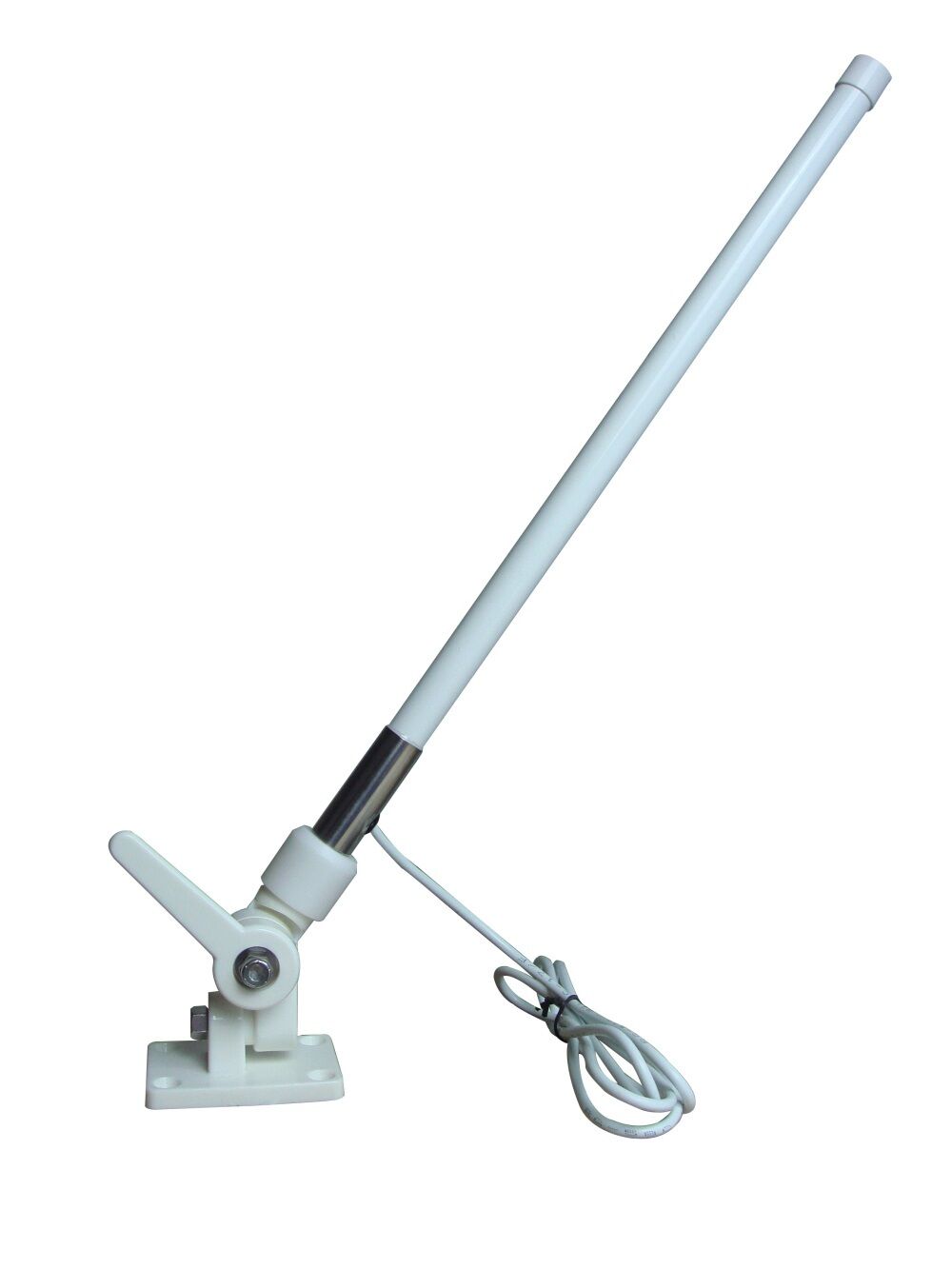

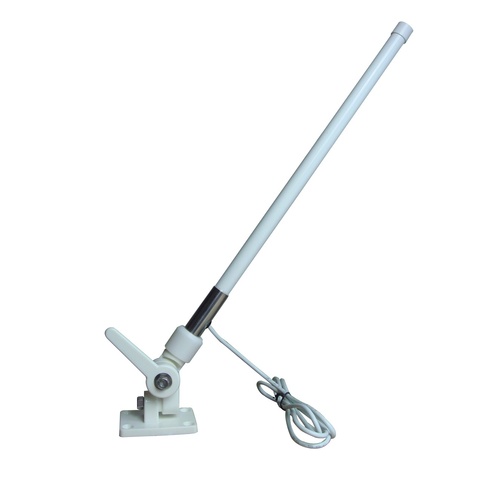

A white 600 mm, 6-10dBi 4G antenna on a folding ABS marine mount. Fold it down for travel or storage.

Xtreme Antennas Folding Cellular Caravan, RV & Marine Antenna 6-10dBi 600mm 698-2700Mhz
6-10dBiGain
600mmMast
5mLMR200 Cable
FoldingMarine Mount

On the water

Holds signal while the boat rolls

A wide elevation beamwidth keeps the signal steady when a boat pitches and rolls, offshore or at anchor. On a caravan it folds flat when you hitch up.

  • ✓698-2700 MHz 4G coverage
  • ✓Folding ABS marine mount
  • ✓White to suit boats and vans

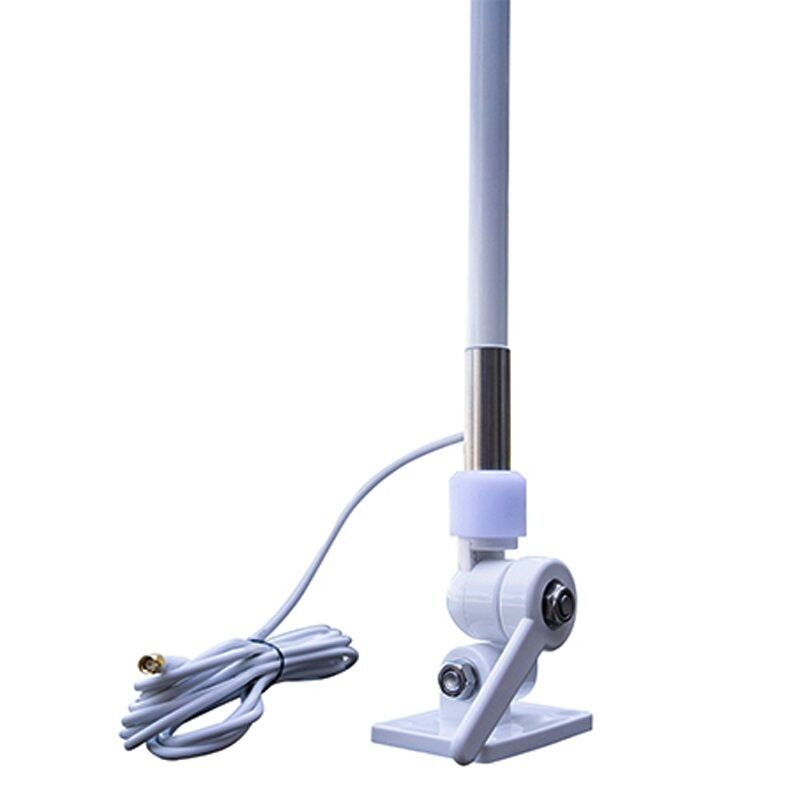

ANT-XA-05 folding marine mount

Compatibility

  • ✓Cel-Fi GO and modems with an SMA female port
  • ✓Boats, caravans and motorhomes

Not suitable for:

  • ✕5G bands above 2700 MHz: choose ANT-XA-03 or ANT-XA-04

Tech specs

Frequency698-2700 MHz
Gain6-10dBi
Mast Length600mm
Cable5m LMR200
ConnectorSMA male
MountFolding ABS marine mount
ColourWhite
Warranty2 years
BrandXtreme Antennas

What’s included

Xtreme Antennas Folding Cellular Caravan, RV & Marine Antenna 6-10dBi 600mm 698-2700Mhz
  • ✓1 x 600mm folding antenna
  • ✓1 x ABS marine mount
  • ✓5m LMR200 cable with SMA male

Booster or modem not included.

Simple installation

1Mount the base

Screw the marine mount to a flat deck, rail bracket or caravan wall.

2Fit the mast

Fit the antenna and set it upright.

3Connect

Run the cable inside and screw the SMA plug onto your booster or modem.

Frequently asked questions

Can I fold it while connected?

Yes. The mount folds without disconnecting the cable.

Not sure what you need?

Tell us your booster or modem, where you are and what signal you get now, and we will help you pick the right antenna.

Contact our team

Features

Xtreme Antennas Folding Cellular Caravan, RV & Marine Antenna 6-10dBi 600mm 698-2700Mhz Brand: Xtreme Antennas SKU: ANT-XA-05

Product Details

SKU ANT-XA-05
Barcode # 9359968001262
Brand Xtreme Antennas

(ANT-XA-05)

Xtreme Antennas was created to get the most out of Cel-Fi signal boosters in Australian conditions. Each antenna is designed for the 4G and 5G bands used on Australian networks and matched to Cel-Fi's performance, so installers get a complete, reliable system rather than a generic aerial. The rang...
