Uniden XTRAK 80 Pro Ultimate Pack | ATX970S Antenna | XTRAK 50 Pro Handheld
Part number: XTRAK80-ULTIMATE
DETAILS
Uniden UHF CB radio packs
In-car, handheld and antenna in one pack
The XTRAK 80 Pro in-vehicle UHF CB, an XTRAK 50 Pro waterproof handheld and an ATX970S heavy duty antenna. Both radios share location through the XTRAK Pro App.
The XTRAK 80 Pro goes in the vehicle with a 3.0 dBi ATX970S antenna, and the XTRAK 50 Pro goes with you when you leave the car. Both have 80 channels, 5W, an OLED display and Instant Replay, and the handheld's charging cradle runs off the car or the mains. Add an ACCX50 car kit to charge and mount the handheld in the car.
On foot
Take the conversation out of the car

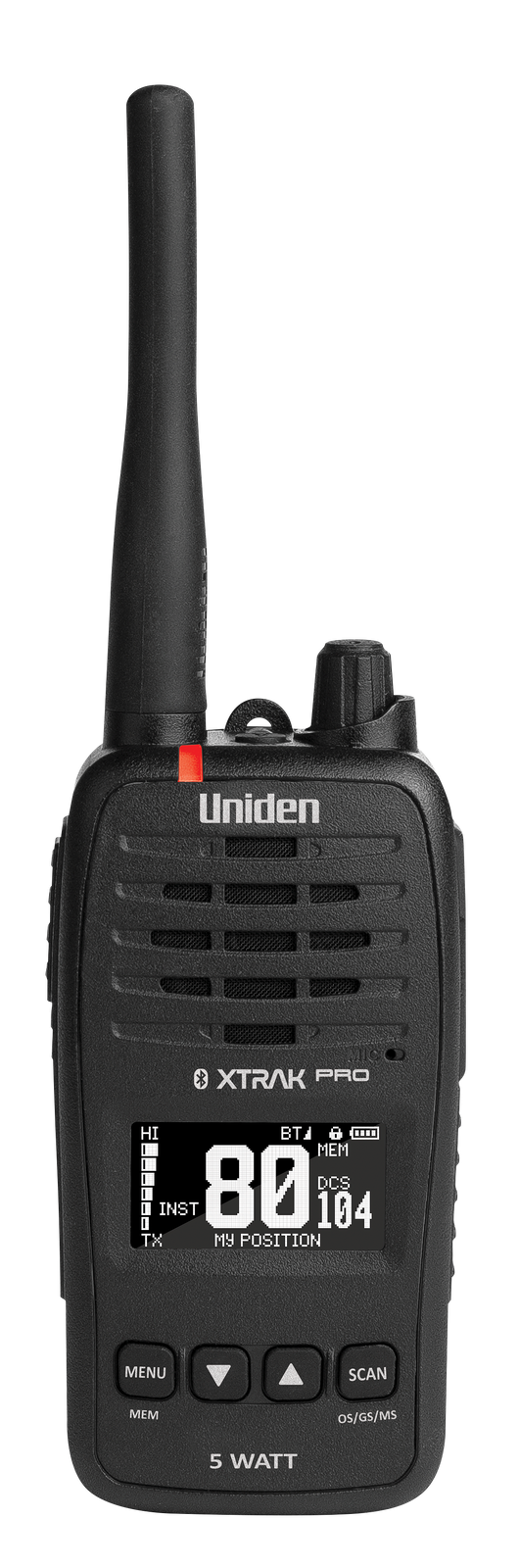

The XTRAK 50 Pro is a 5W waterproof handheld with its own OLED display, 2W speaker and up to 4 minutes of Instant Replay. Use it at camp, on a walk or while spotting a driver over a rocky climb. It has a torch, an SOS function and a 2700mAh battery that charges in its cradle at home or in the car.
- ✓Waterproof handheld, 5W or 1W
- ✓Up to 17km line of sight
- ✓Torch and SOS
Location sharing
Both radios know where each other are
Pair each radio with the free XTRAK Pro App and they share positions with each other, even without mobile phone service, as long as they're within UHF CB range. The app also handles settings, Selcall contacts, Repeater Find and short text messages, and each radio can stream audio to compatible Bluetooth devices.
- ✓Works without phone service
- ✓Repeater Find in the app
- ✓Bluetooth audio on both radios
Antenna included

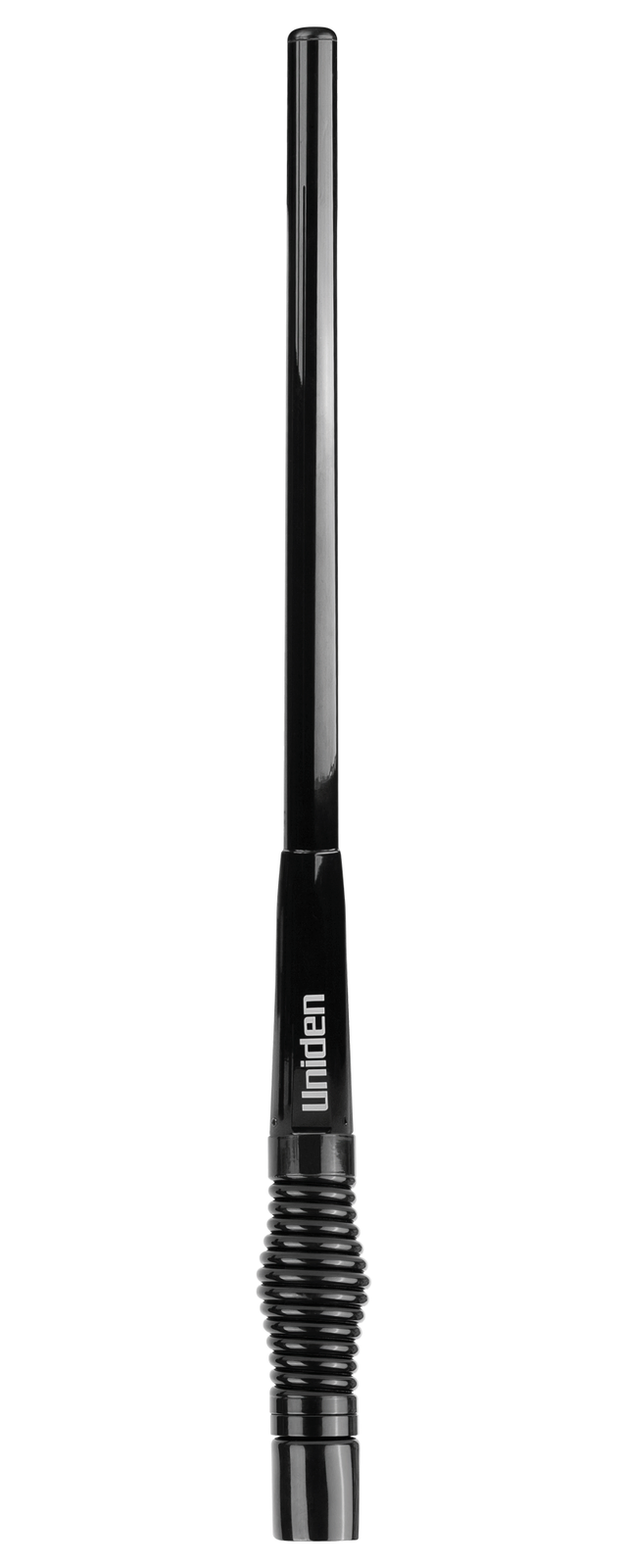

ATX970S heavy duty antenna
The ATX970S is a 3.0 dBi ground independent radome antenna, made for all-round use on flat terrain, in town and in the country. It has an aluminium ferrule and a heavy duty stainless steel spring, and stands 702mm tall once mounted. It comes with 4.5m of low loss coax, an FME connector with PL259 adaptor, a locking key and a weather cap.
- ✓3.0 dBi, 702mm mounted height
- ✓Stainless steel spring, 8mm thread
- ✓4.5m coax with PL259 adaptor
Goes well with
Complete your setup
Car charger, magnetic bracket and antenna for the XTRAK 50 Pro handheld.
Heavy duty folding bracket to mount your UHF antenna on the vehicle.
Frequently asked questions
Can the two radios share location?
Yes. Both the XTRAK 80 Pro and the XTRAK 50 Pro work with the XTRAK Pro App. With each radio paired to a smartphone, they share location while they're within UHF CB range of each other, even without mobile phone service.
Is the handheld waterproof?
The XTRAK 50 Pro radio meets IPX7/JIS7, which means no water gets in when it's under 1m of water for 30 minutes with all fittings secured. The speaker mic and other accessories aren't waterproof.
Do I need a ground plane for the antenna?
No. The ATX970S is ground independent, so it works on a bull bar or bracket mount without a metal ground plane. It comes with 4.5m of coax already fitted with an FME connector and PL259 adaptor.
Do I need a licence to use it?
UHF CB in Australia is covered by the ACMA Citizen Band Radio Stations Class Licence, and you must follow the conditions in that licence. Uniden notes the radio must only be used in the country of purchase.
Can I talk on all 80 channels?
Most of them. Channels 22 and 23 are for data only, so voice transmission is blocked, and channels 61, 62 and 63 are reserved for future use and are receive only. Channels 5 and 35 are emergency channels.
Features

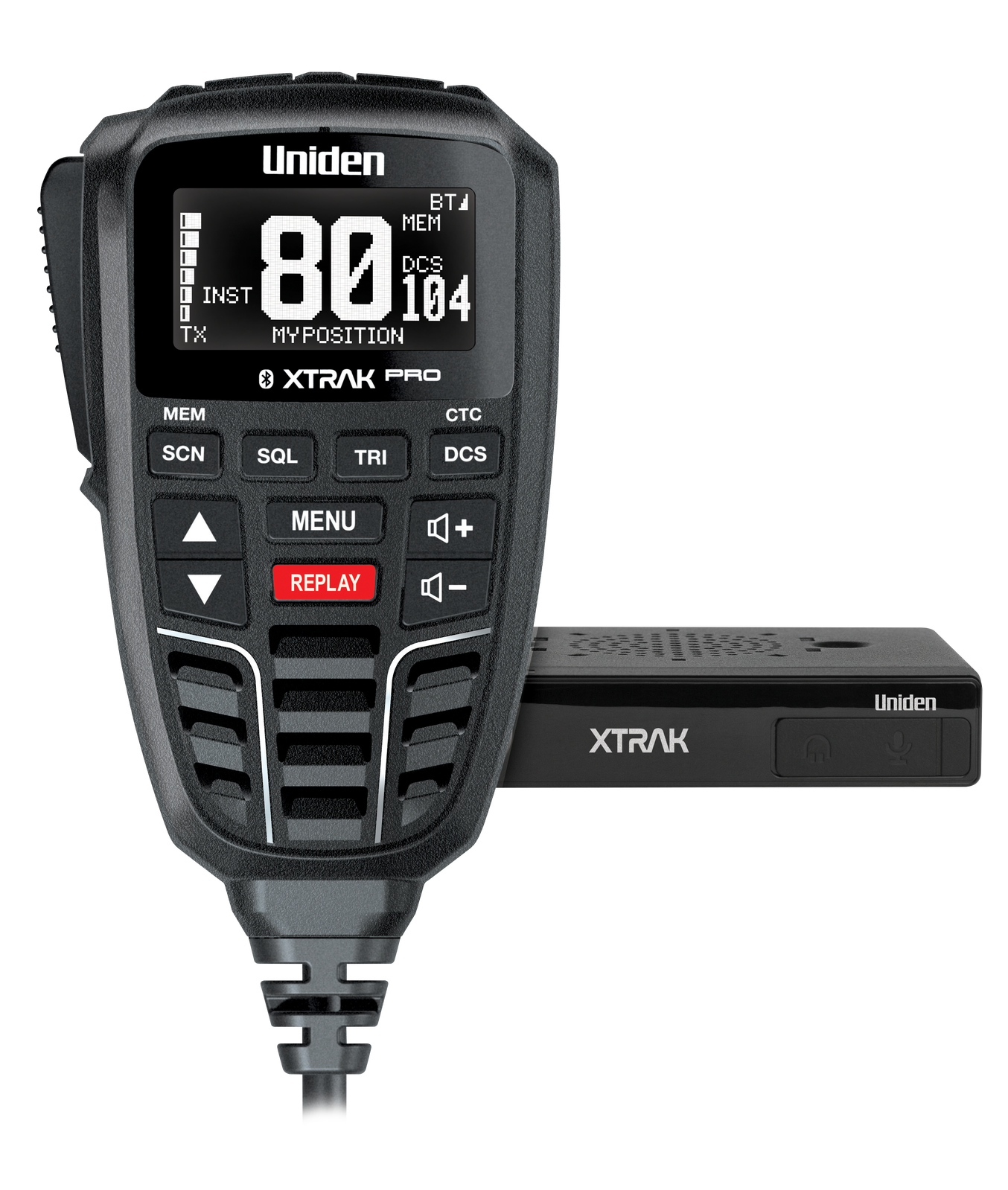

- ✓XTRAK 80 Pro in-vehicle UHF CB, 80 channels, 5W
- ✓XTRAK 50 Pro waterproof handheld, 5W or 1W selectable
- ✓ATX970S 3.0 dBi heavy duty radome antenna
- ✓Location sharing between both radios through the XTRAK Pro App
- ✓OLED displays and Instant Replay on both radios
- ✓Bluetooth audio to compatible headsets and vehicle speakers
- ✓Handheld runs on a 2700mAh lithium-ion battery
Specifications
| Channels | 80 UHF CB, narrowband |
| Channel notes | CH 22 and 23 data only (voice TX inhibited); CH 61 to 63 reserved, receive only |
| Transmit power | 5W maximum |
| Display | Anti-glare OLED with dimmer |
| Speaker | 2W in the remote speaker microphone |
| Instant Replay | Up to 6 minutes of received transmissions |
| Smart keys | 3 programmable |
| Scan | Open and Group Scan with Priority Channel Watch, Triple Watch, Master Scan |
| Squelch | 10 level |
| Quiet codes | 50 CTCSS and 104 DCS |
| Extra receive channels | 100 user programmable, 400 to 520MHz in 12.5kHz steps |
| Selcall | Yes, with Alpha Tag |
| Voice scramble | Yes |
| External speaker jack | Yes |
| Power | 12V or 24V DC (10.2V to 28.8V) |
| Mic extension cable | 2m |
| Base unit size | 126.5mm W x 99.8mm D x 24.8mm H |
| Bluetooth app | XTRAK Pro App for iOS and Android (phone needs Bluetooth 4.0 and GPS) |
| Bluetooth audio | Connects to compatible Bluetooth 5.0 headsets and vehicle speakers |
| Antenna | ATX970S heavy duty radome, black |
| Antenna gain | 3.0 dBi, ground independent, 477MHz |
| Antenna height | 702mm mounted, 570mm whip |
| Antenna spring | Stainless steel, 44-55-44mm barrel, 8mm thread, aluminium ferrule |
| Antenna cable | 4.5m low loss coax, FME female with PL259 adaptor |
| Antenna extras | Locking key and weather cap |
| Handheld | XTRAK 50 Pro, waterproof IPX7/JIS7 (radio only, not accessories) |
| Handheld power | 5W (Hi) or 1W (Lo) selectable |
| Handheld range | Up to 17km typical, line of sight |
| Handheld Instant Replay | Up to 4 minutes |
| Handheld battery | 2700mAh lithium-ion |
| Handheld extras | Torch, SOS, key lock, accessory jack |
| Designed in | Japan |
| Warranty | 5 years radio, 1 year included accessories |
| Brand | Uniden |
What's Included
- 1 x XTRAK 80 Pro base unit

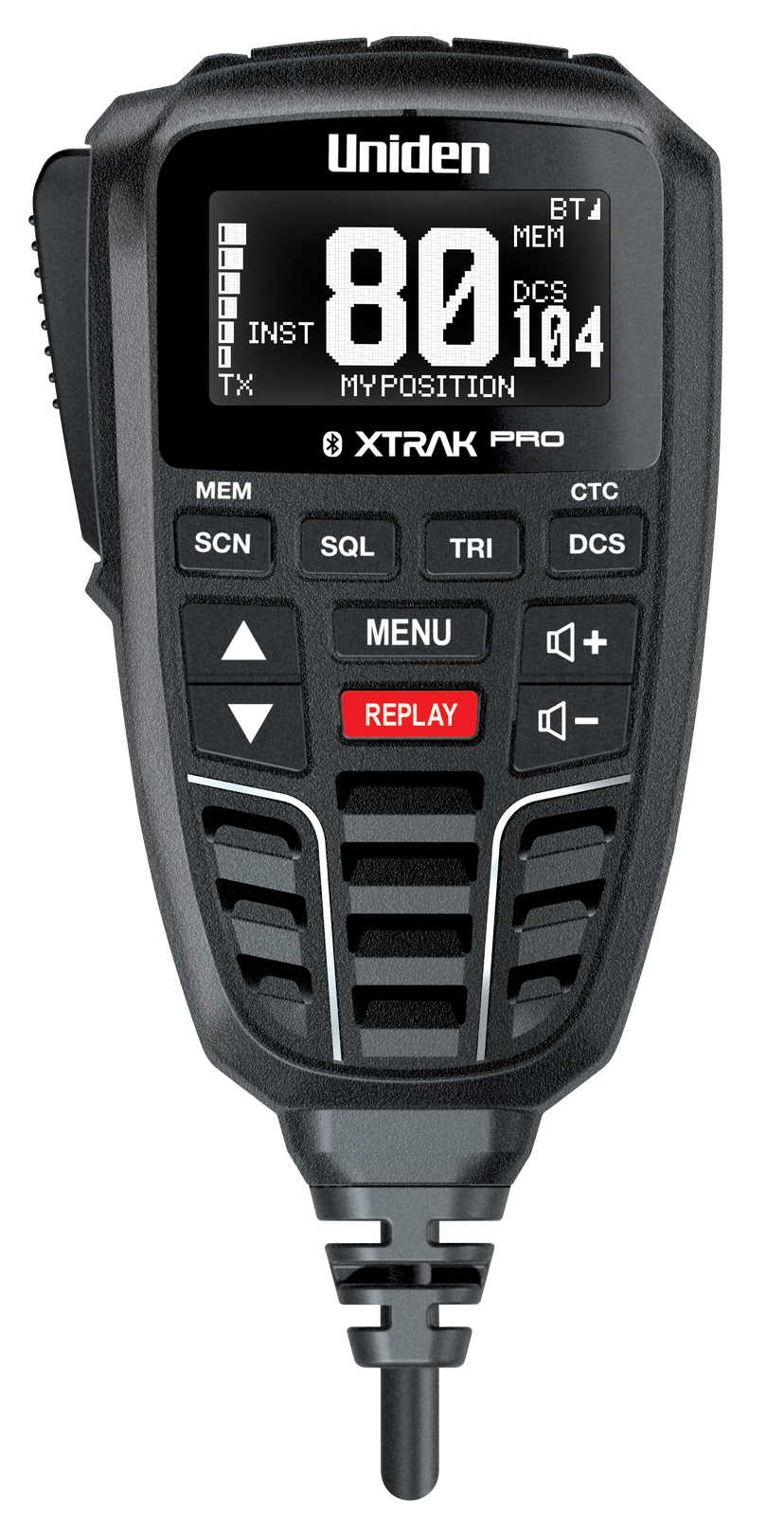

- 1 x XTRAK 80 Pro remote speaker microphone
- 1 x ATX970S 3.0 dBi antenna
- 1 x quick release bracket kit
- 1 x gimbal mounting bracket
- 1 x magnetic mic mount
- 1 x 2m mic extension cable
- 1 x DC power lead with fuse
- 1 x XTRAK 50 Pro handheld radio
- 1 x detachable antenna (handheld)
- 1 x 2700mAh lithium-ion rechargeable battery
- 1 x single charging cradle
- 1 x AC adaptor for charging cradle
- 1 x cig-lead adaptor for charging cradle
- 1 x belt clip
- 1 x speaker mic
- 1 x earpiece mic
Product Details
| SKU | XTRAK80-ULTIMATE |
| Barcode # | 9322402015996 |
| Brand | Uniden |
| Shipping Weight | 4.5000kg |
| Shipping Width | 0.820m |
| Shipping Height | 0.070m |
| Shipping Length | 0.280m |
| Shipping Cubic | 0.016072000m3 |
