Uniden XTRAK 80 Smart UHF CB Radio + AT970BK Twin Antenna Bundle
Huge Promo Discount!
Part number: XTRAK80_AT970TWIN
DETAILS
Uniden UHF CB radio packs
UHF CB with a two-whip antenna

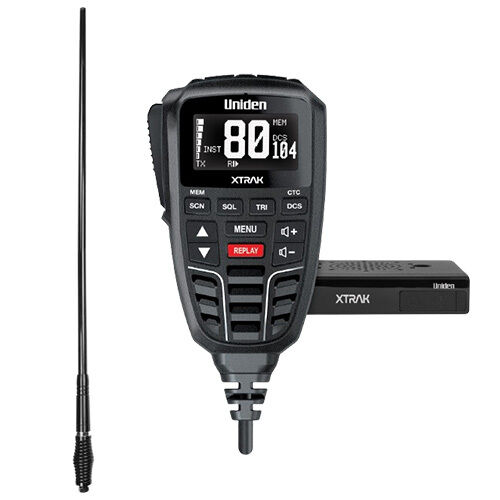

The XTRAK 80 in-vehicle UHF CB bundled with the AT970BK Twin fibreglass antenna. Swap between a 6.6 dBi long whip and a 3.0 dBi short whip to suit the trip.
The OLED display and controls sit on the remote speaker mic, and the compact base unit hides away under a seat or behind the dash. Instant Replay plays back up to 6 minutes of calls you missed. The antenna is ground independent with a stainless steel spring and 4.5m of coax. Mount it on a MBU-05BK folding bracket.
In the cab
The whole radio sits in your hand
The XTRAK 80 puts the screen and controls on the remote speaker mic, so the compact base unit can hide under a seat or behind the dash. The large anti-glare OLED display has a dimmer for night driving, and the 2W speaker in the mic keeps voices clear over road noise.
- ✓Anti-glare OLED display with dimmer
- ✓2W speaker in the mic
- ✓Base unit only 24.8mm high
Two whips
Long whip for open roads, short for tracks
The AT970BK Twin gives you two removable fibreglass whips on one base. Run the 1200mm 6.6 dBi whip on open highways and flat country, and fit the 725mm 3.0 dBi whip for tracks and hilly ground. Both use the heavy duty stainless steel spring, 4.5m of low loss coax and an FME connector with PL259 adaptor.
- ✓6.6 dBi whip, 1200mm
- ✓3.0 dBi whip, 725mm
- ✓4.5m coax with PL259 adaptor
Instant Replay
Missed a call? Play it back
The radio records what it receives, in normal channel mode and while scanning. Press the red REPLAY key to hear the last message again, and skip back through up to 6 minutes of recent transmissions. Three Smart Keys give one-touch access to instant channels, Triple Watch, squelch, call tone, monitor or the equaliser.
- ✓Up to 6 minutes of replay
- ✓Records while scanning
- ✓3 programmable Smart Keys
Fitting
Magnetic mic mount, no hook
The magnetic mic mount sticks to the dash with its adhesive pad, and the mic snaps onto it without fiddling with a hanger hook. The base unit fits with the quick release bracket or the gimbal bracket, and the 2m extension cable lets you put it where it suits. It runs on 12V or 24V, so it suits cars, 4WDs and trucks.
- ✓Magnetic mic mount in the box
- ✓Quick release and gimbal brackets
- ✓12V or 24V power
Channels
Stay on air when channels get busy
Master Scan keeps a group talking on busy channels. Every radio in the group scans the same channels with the same CTCSS or DCS code, and when another user jumps on, the radio moves to a clear group channel. You also get Open and Group Scan with Priority Watch, 50 CTCSS and 104 DCS codes, and 100 extra receive channels you can program from 400 to 520MHz.
- ✓Master Scan for convoys and groups
- ✓50 CTCSS and 104 DCS codes
- ✓100 extra receive channels
Goes well with
Complete your setup
Heavy duty folding bracket to mount your UHF antenna on the vehicle.
5W waterproof handheld with the same OLED display and Instant Replay, for use away from the vehicle.
Frequently asked questions
Which whip should I use?
The 1200mm 6.6 dBi whip suits flat, open country and highways. The 725mm 3.0 dBi whip is shorter for tracks and hilly ground. Both whips fit the same base and spring, and the antenna is ground independent.
Do I need a licence to use it?
UHF CB in Australia is covered by the ACMA Citizen Band Radio Stations Class Licence, and you must follow the conditions in that licence. Uniden notes the radio must only be used in the country of purchase.
Can I talk on all 80 channels?
Most of them. Channels 22 and 23 are for data only, so voice transmission is blocked, and channels 61, 62 and 63 are reserved for future use and are receive only. Channels 5 and 35 are emergency channels.
Will it work in my truck?
Yes. It runs on 12V or 24V DC and accepts 10.2V to 28.8V, so it suits cars, 4WDs, caravans and trucks. It alerts you if the supply goes too high or too low.
How far will it reach?
Range depends on your antenna, the terrain and how high the antenna is mounted, and Uniden doesn't give a range figure for the XTRAK 80. For extra range, use duplex on the repeater channels when a UHF CB repeater is within reach.
Features
- ✓XTRAK 80 in-vehicle UHF CB, 80 channels, 5W
- ✓AT970BK Twin antenna with 6.6 dBi and 3.0 dBi whips
- ✓Large anti-glare OLED display with dimmer on the mic
- ✓Instant Replay of up to 6 minutes of received calls
- ✓Master Scan, Triple Watch and 3 programmable Smart Keys
- ✓Magnetic mic mount, 12V or 24V power
Specifications
| Channels | 80 UHF CB, narrowband |
| Channel notes | CH 22 and 23 data only (voice TX inhibited); CH 61 to 63 reserved, receive only |
| Transmit power | 5W maximum |
| Display | Anti-glare OLED with dimmer |
| Speaker | 2W in the remote speaker microphone |
| Instant Replay | Up to 6 minutes of received transmissions |
| Smart keys | 3 programmable |
| Scan | Open and Group Scan with Priority Channel Watch, Triple Watch, Master Scan |
| Squelch | 10 level |
| Quiet codes | 50 CTCSS and 104 DCS |
| Extra receive channels | 100 user programmable, 400 to 520MHz in 12.5kHz steps |
| Selcall | Yes, with Alpha Tag |
| Voice scramble | Yes |
| External speaker jack | Yes |
| Power | 12V or 24V DC (10.2V to 28.8V) |
| Mic extension cable | 2m |
| Base unit size | 126.5mm W x 99.8mm D x 24.8mm H |
| Antenna | AT970BK Twin fibreglass raydome, black, 2 removable whips |
| Antenna gain | 6.6 dBi and 3.0 dBi, ground independent |
| Whip lengths | 1200mm and 725mm |
| Antenna spring | Heavy duty barrel style stainless steel |
| Antenna cable | 4.5m low loss coax, FME female with PL259 adaptor |
| Designed in | Japan |
| Warranty | 5 years radio, 1 year included accessories |
| Brand | Uniden |
What's Included
- 1 x XTRAK 80 base unit
- 1 x XTRAK 80 remote speaker microphone
- 1 x quick release bracket kit
- 1 x gimbal mounting bracket
- 1 x magnetic mic mount
- 1 x 2m mic extension cable
- 1 x DC power lead with fuse
- 1 x AT970BK Twin antenna with 1200mm and 725mm whips, 4.5m coax and PL259 adaptor
Product Details
| SKU | XTRAK80_AT970TWIN |
| Barcode # | 9322402015521 |
| Brand | Uniden |
| Shipping Weight | 1.4000kg |
| Shipping Width | 0.240m |
| Shipping Height | 0.100m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.004080000m3 |
(XTRAK80_AT970TWIN)
