Uniden X76VP X76 Value Pack | Compact UHF CB Radio and 5.5 dBi AT500BK Antenna
Part number: X76VP
DETAILS
Uniden UHF CB radios
Radio and antenna, ready to fit

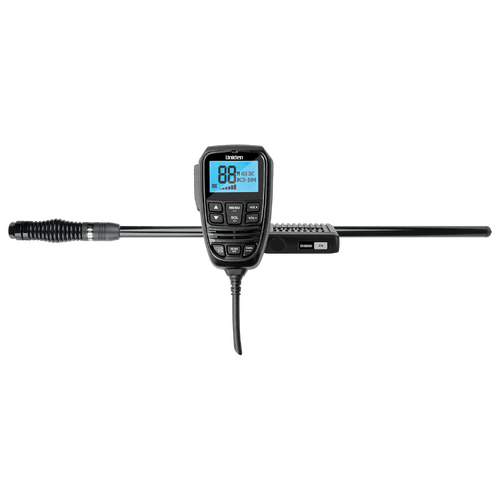

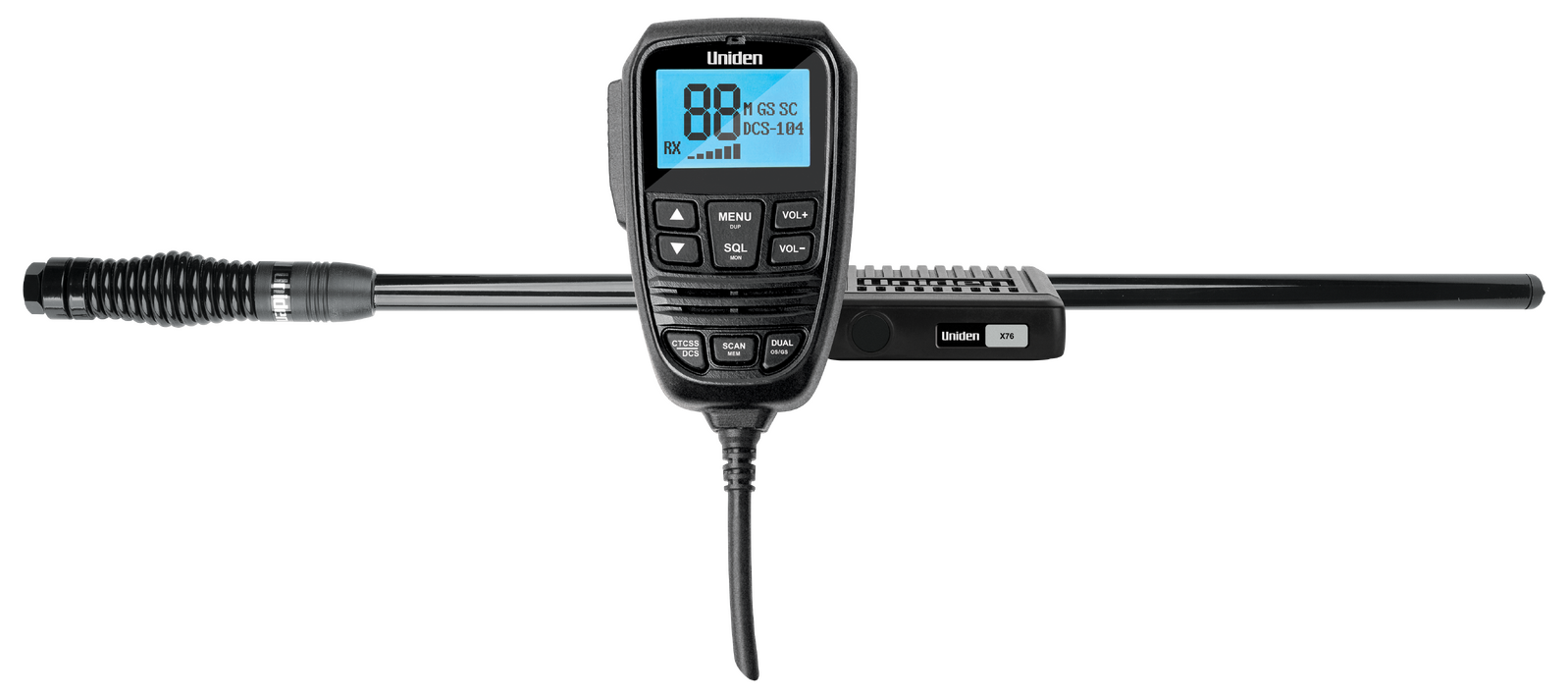

The X76 compact 5W UHF CB packed with an AT500BK 5.5 dBi fibreglass antenna. Everything you need to get a car, 4WD or truck on air in one box.
The X76 puts a large backlit LCD and one-touch keys on the speaker microphone, so the small base can sit out of the way. The AT500BK is a 730mm ground independent raydome antenna on a stainless steel spring, with 4.5m of low loss coax already fitted. Want a handheld for outside the vehicle? Add a Uniden UH825.
On the track
Talk to the convoy from the cab
The X76's speaker mic carries the screen and the main controls, so you can check the channel and make a call from your hand. Speakers in both the base and the mic keep voices clear over road and engine noise.
- ✓80 channels at 5W
- ✓Dual speakers, base and mic
- ✓Dual watch and duplex
Your colours
Seven backlight colours

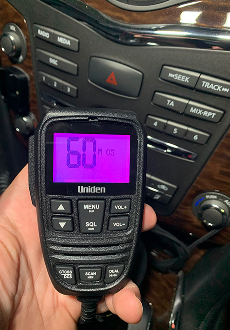

Set the LCD and key backlight to one of 7 colours to match your dash lighting, then dim it for night driving. One-touch Instant, Call, Mon and EMG keys on the mic give quick access to the functions you use most.
- ✓7 colour backlight
- ✓Brightness control
- ✓One-touch EMG channel recall
Fitting
Bracket, cable and antenna sorted
The radio comes with a mounting bracket, mic hanger, fused DC power cord and hardware. The AT500BK antenna is ground independent and has 4.5m of low loss coax terminated with an FME female connector and a PL259 adaptor, so it's ready to plug into the radio.
- ✓5.5 dBi, 730mm antenna
- ✓Ground independent
- ✓4.5m coax with PL259 adaptor
Goes well with
Complete your setup
Heavy duty folding bracket to mount the AT500BK antenna.
2W, 80 channel handheld for when you're out of the vehicle.
Frequently asked questions
What antenna is in the pack?
The AT500BK: a 730mm black fibreglass raydome antenna with 5.5 dBi gain, a parallel style stainless steel spring and 4.5m of low loss coax.
Does the antenna need a ground plane?
No. The AT500BK is ground independent, and Uniden lists it as suitable for sedans, trucks and 4WDs.
Is an antenna bracket included?
A bracket for the antenna isn't listed. A Uniden MBU-05BK folding mount is a sturdy option.
Where does the screen sit?

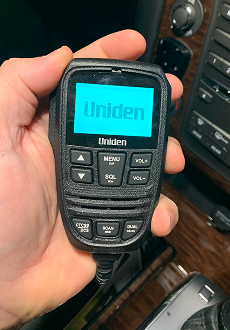

On the speaker microphone. The large backlit LCD and one-touch keys are in your hand, and the compact base can be mounted out of the way.
Which channels can't I transmit on?
Channels 22 and 23 are for telemetry and telecommand, so voice transmission is blocked. Channels 61, 62 and 63 are reserved for future use and are receive only.
Features
- ✓X76 UHF CB with large LCD on the remote speaker mic
- ✓AT500BK 5.5 dBi fibreglass raydome antenna included
- ✓80 narrowband UHF CB channels at 5W
- ✓Dual speakers in base and mic
- ✓7 colour LCD backlight with brightness control
- ✓Dual watch, open/group scan with priority watch, duplex
- ✓Ground independent antenna with 4.5m low loss coax
- ✓Antenna suits sedans, trucks and 4WDs
Specifications
| Channels | 80 narrowband UHF CB |
| Transmit power | 5W |

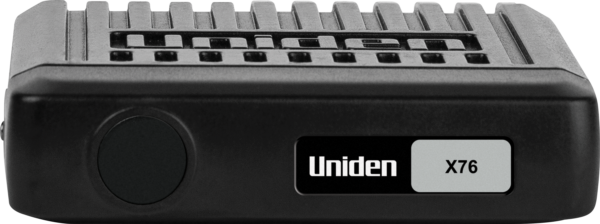

| Radio base dimensions | 110mm W x 112mm D x 28mm H |
| Microphone | Remote speaker mic with built-in dot matrix LCD |
| Speakers | Base and mic, synchronised volume |
| Backlight | 7 colours with brightness control |
| One-touch keys | Instant channel, call tone, monitor, emergency (CH5/CH35) |
| Watch and scan | Dual watch, open/group scan with priority watch |
| Radio features | Duplex, CTCSS/DCS codes, S/RF meter, busy channel lock-out, roger and key beep on/off, high/low voltage alert, external speaker jack |
| Antenna | AT500BK fibreglass raydome, black |
| Antenna gain | 5.5 dBi |
| Antenna length | 730mm |
| Antenna spring | Parallel style stainless steel |
| Antenna type | Ground independent |
| Coax | 4.5m low loss, terminated FME female with PL259 adaptor |
| Warranty | 5 years on the radio (1 year on included accessories) |
| Brand | Uniden |
What's Included
- 1 x X76 UHF radio
- 1 x AT500BK antenna

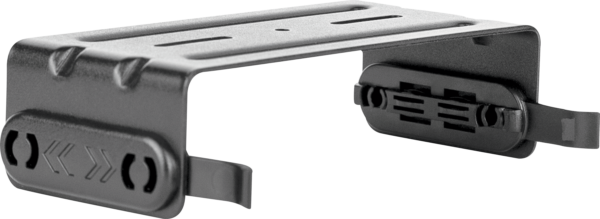

- 1 x Mounting bracket
- 1 x Microphone hanger
- 1 x DC power cord with fuse
- 1 x Mounting hardware
Product Details
| SKU | X76VP |
| Barcode # | 9322402016955 |
| Brand | Uniden |
| Shipping Weight | 2.1000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.080m |
| Shipping Length | 0.810m |
