Hema Heavy Duty Wi-Fi Reversing Camera

DETAILS

Overview

See what's behind the van

This heavy-duty reversing camera pairs with the Hema HX-2 Navigator and sends a live rear view over Wi-Fi straight to the HX-2 screen when you back up. The wide lens helps you pick up vehicles, people, pets and other obstacles behind your 4WD, caravan or trailer.

150°Diagonal view

Up to 70 mWi-Fi range

IP69KDust & water rating

9-16 VDC power

Works with the Hema HX-2 Navigator. Initial installation must be wired by a qualified auto electrician; after that the camera runs over Wi-Fi. Obstructions can affect the Wi-Fi signal.

Built heavy duty

Made for the back of the rig

A wide 150° diagonal view shows more of what's behind you, and Wi-Fi range of up to 70 m (depending on installation) suits longer rigs. The camera is IP69K rated against dust and high-temperature, high-pressure water, and works from -20°C to 70°C.

✓Suits vehicles, caravans and trailers
✓Live rear view over built-in Wi-Fi
✓IP69K rated against dust and water
✓0.2 lux low-light rating

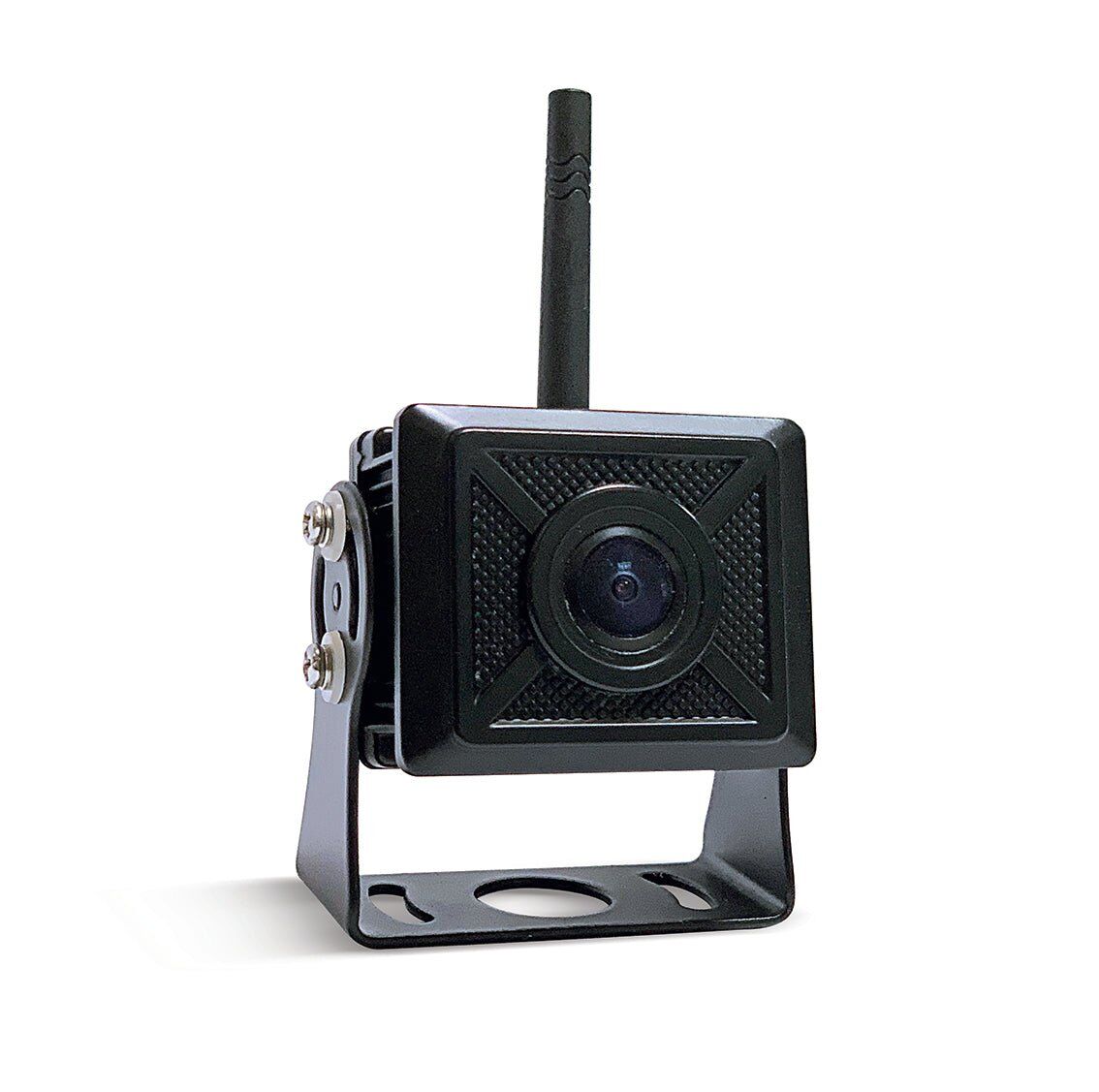

Hema Heavy Duty Wi-Fi reversing camera with antenna and steel mounting bracket

Frequently asked questions

Which navigator does it work with?

Hema lists it for the Hema HX-2 Navigator, controlled through the HX-2 Camera App. Hema also lists the Visada app for compatible iPhone and iPad devices; it is not currently available for Android.

Will it work on a caravan or trailer?

Yes. Hema describes it as suitable for vehicles, caravans and trailers, with a range of up to 70 m depending on installation.

Is it completely wireless?

The video is wireless, but the camera needs power. The first install must be wired by a qualified auto electrician, then it operates over Wi-Fi.

How is it different from the standard Hema Wi-Fi camera?

The heavy-duty camera has a wider 150° view and up to 70 m range, compared with 140° and 30 m on the standard camera.

Not sure it suits your setup?

Contact our team with your navigator model and rig and we can help.

Pairs well with

Hema HX-2 Navigator Windscreen Mount

Replacement windscreen mount for the HX-2 navigator.

$29.95 · View

Hema HX-2 Navigator 12-24 V DC Car Charger

Spare 12-24 V car charger to keep the HX-2 powered on the road.

$19.95 · View

Hema HX-2 Navigator USB Charger Lead

USB charger lead for the HX-2 navigator.

$14.95 · View

Features

✓Made to work with the Hema HX-2 Navigator
✓Live rear view sent over built-in Wi-Fi
✓Wide 150° diagonal viewing angle
✓Wireless range up to 70 m (varies with install)

✓Suits vehicles, caravans and trailers
✓IP69K rated against dust and high-pressure water
✓Runs on 9-16 V DC
✓Operates from -20°C to 70°C

Specifications

Camera

Brand	Hema Maps
Suits	Hema HX-2 Navigator
Control	Via HX-2 Camera App
Viewing angle	150° diagonal
Resolution	VGA
Frame rate	30 fps
Latency	120 ms
Power-on time	1.0 s
Video system	PAL
Video codec	MPEG4
Light rating	0.2 lux

Wireless

Connection	Wi-Fi 802.11 g/n, 2412-2483.5 MHz, CH1 to CH13
Range	Up to 70 m (varies with installation)

Power & build

Power supply	9-16 V DC, 200 mA
Waterproof rating	IP69K
Operating temperature	-20°C to 70°C
Storage temperature	-30°C to 85°C
Camera size	48 x 40 x 36 mm
Camera weight	199 g
Installation	Initial wiring by a qualified auto electrician

What's Included

✓1 x Hema Heavy Duty Wi-Fi Reversing Camera

Product Details

SKU	9321438002512
Barcode #	9321438002512
Brand	Hema Maps
Shipping Weight	0.1060kg
