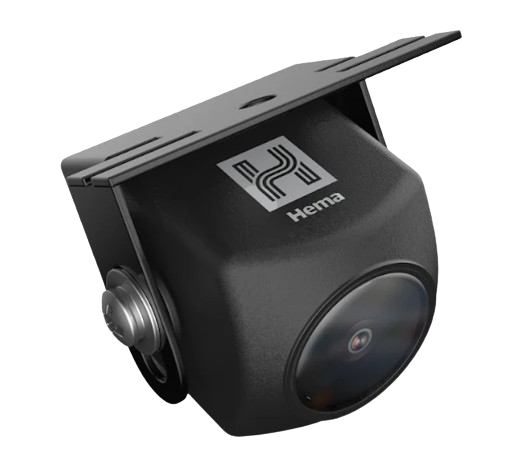

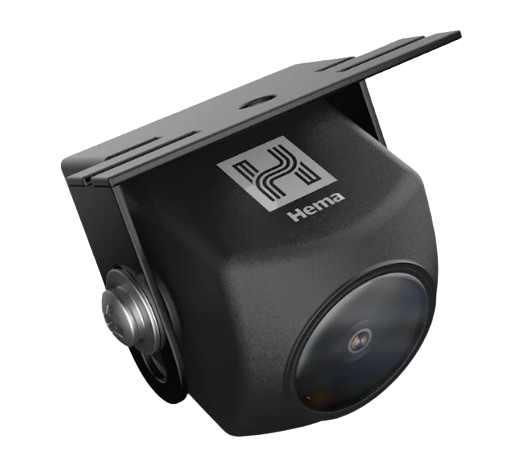

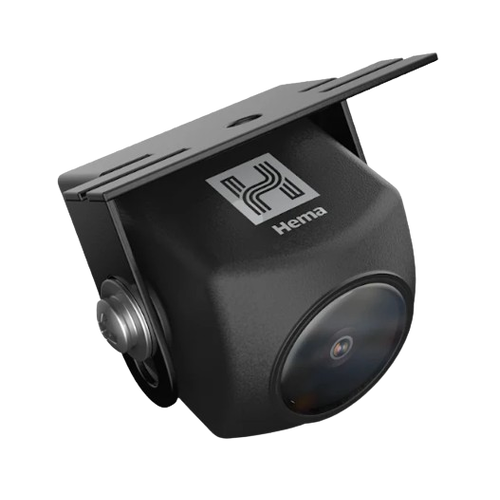

Hema HM-CAM20 Universal Stainless Steel Reversing Camera (Camera Only)
Brand: Hema Maps
Part number: 9339398012946
DETAILS
Overview
See more behind you
The HM-CAM20 is a tough, universal rear camera for cars, utes, 4WDs and commercial vehicles. A wide 170° view shows more of what is behind you, guidelines are built into the picture, and the stainless steel housing is sealed to IP69K for dust, mud and wash-downs.
Camera only. The HM-CAM20 needs a reversing monitor or head unit with an RCA (composite) camera input, sold separately. Not sure what will work with your screen? contact our team.
Clear picture
Wide view, sharp detail

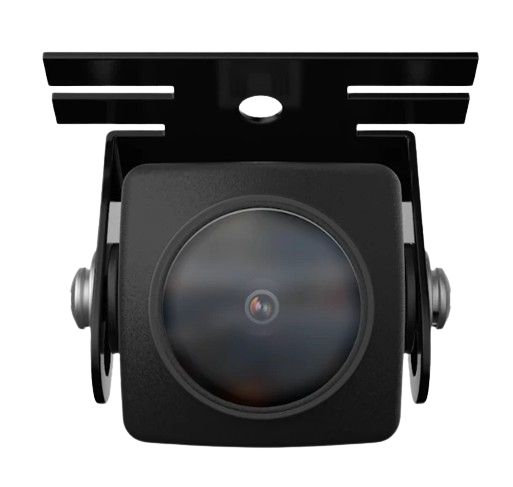

The 170° diagonal lens takes in more of the road, the kerb and anything behind the vehicle. 800 TVL resolution keeps the picture sharp, and the picture is mirrored for rear use, with a wire loop to switch it for a front camera.
- ✓170° diagonal field of view
- ✓800 TVL resolution
- ✓Mirror image for rear use, switchable for front mounting
Safer reversing
Guidelines that move with you
Dynamic reversing guidelines are generated by the camera itself, so they appear on any compatible screen as soon as you select reverse. A built-in G-sensor adjusts the guidelines as the vehicle moves, so parking and hitching up are easier to judge.
- ✓Dynamic reversing guidelines
- ✓Built-in G-sensor
- ✓Guidelines show on any compatible monitor
Built tough
Made for corrugations and wash-downs
The stainless steel housing is rated IP69K, so it is sealed against dust and water, including high-pressure cleaning. It works from -30°C to 85°C, and runs on 12 V or 24 V systems for passenger and commercial vehicles. A 6 m camera cable is supplied for the run to the front.
- ✓Stainless steel heavy-duty housing

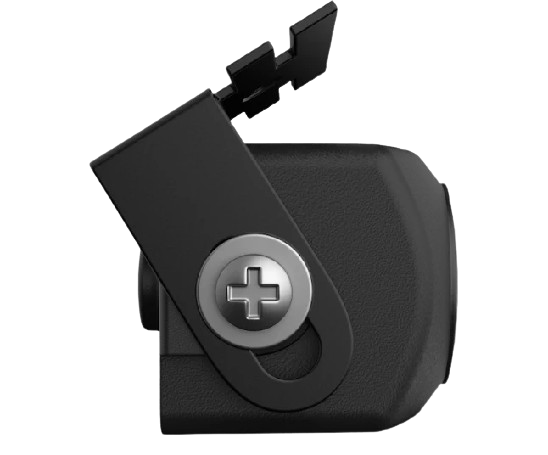

- ✓Adjustable bracket for setting the camera angle
- ✓6 m rear camera cable supplied
Frequently asked questions
Does it come with a screen?
No. This is the camera on its own (standalone). You will need a reversing monitor or head unit with an RCA (composite) camera input to view the picture.
What video signal does it use?
It is an analogue composite (CVBS) camera with NTSC/PAL output at 800 TVL and an RCA video plug. Most aftermarket reversing monitors and head units with an RCA camera input will work. The Hema HM-MNT uses 6-pin camera connectors, so it needs an RCA adaptor. Not sure? contact our team before you order.
Will it work on a truck or a 24 V vehicle?
Yes. It is rated for 12 V and 24 V systems, so it suits cars, utes and commercial vehicles.
Is it waterproof?
Yes. The housing is rated IP69K, which means it is sealed against dust and high-pressure water. It operates from -30°C to 85°C.
How is it wired?
Power comes from the reversing light circuit: red to the reversing light positive and black to earth, on 12 V or 24 V. The 6 m cable runs the video signal to your screen.
Pairs well with
Touchscreen monitor for up to four cameras. Takes up to four cameras, 12/24 V. Needs an RCA adaptor for this camera.
$499.00 · View
Heavy-duty 800 TVL camera with a 10 m cable and 6-pin connector, made for the HM-MNT.
$199.95 · View
Two adjustable lenses (120° and 60°) for wider and taller vehicles.
$299.95 · View
Features
- ✓Wide 170° diagonal view shows more behind the vehicle
- ✓800 TVL resolution for a sharp picture
- ✓Analogue composite (CVBS) output with RCA plug
- ✓Dynamic reversing guidelines with built-in G-sensor
- ✓Mirror image for rear use, switchable for front mounting
- ✓Stainless steel housing sealed to IP69K
- ✓Works from -30°C to 85°C
- ✓12 V and 24 V compatible for cars, utes and trucks
- ✓6 m rear camera cable supplied
Specifications
Camera
| Brand | Hema Maps |
| Model | HM-CAM20 |
| Resolution | 800 TVL |
| Field of view | 170° diagonal |
| Signal system | NTSC / PAL |
| Minimum illumination | 0.1 to 0.5 lux |
| Video output | Analogue composite (CVBS), RCA plug |
| Reversing guidelines | Dynamic, generated by the camera (built-in G-sensor) |
| Mirror image | Mirrored by default, wire loop for front use |
Build & power
| Housing | Stainless steel |
| Ingress rating | IP69K |
| Operating temperature | -30°C to 85°C |
| Voltage | 12 V / 24 V |
| Cable | 6 m rear camera cable (supplied) |
| Monitor | Not included. Works with screens that have an RCA camera input |
| Warranty | 3-year limited warranty |
What's Included
- ✓1 x Hema HM-CAM20 reversing camera with mounting bracket
- ✓1 x 6 m rear camera cable
- ✓1 x installation guide
Product Details
| SKU | 9339398012946 |
| Barcode # | 9339398012946 |
| Brand | Hema Maps |
| Shipping Weight | 0.7800kg |
