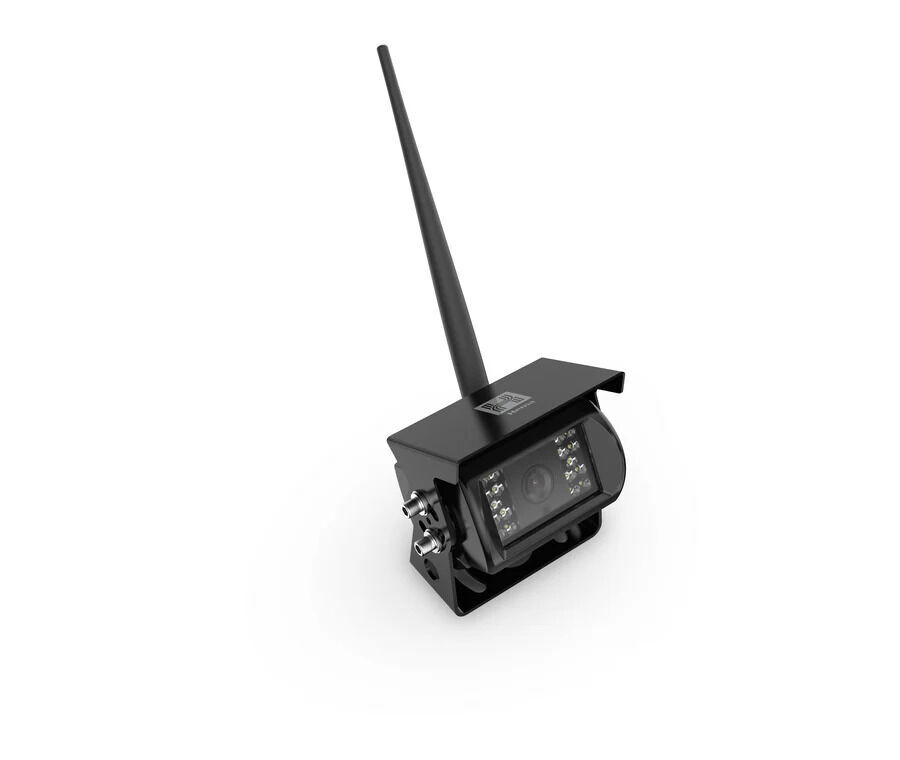

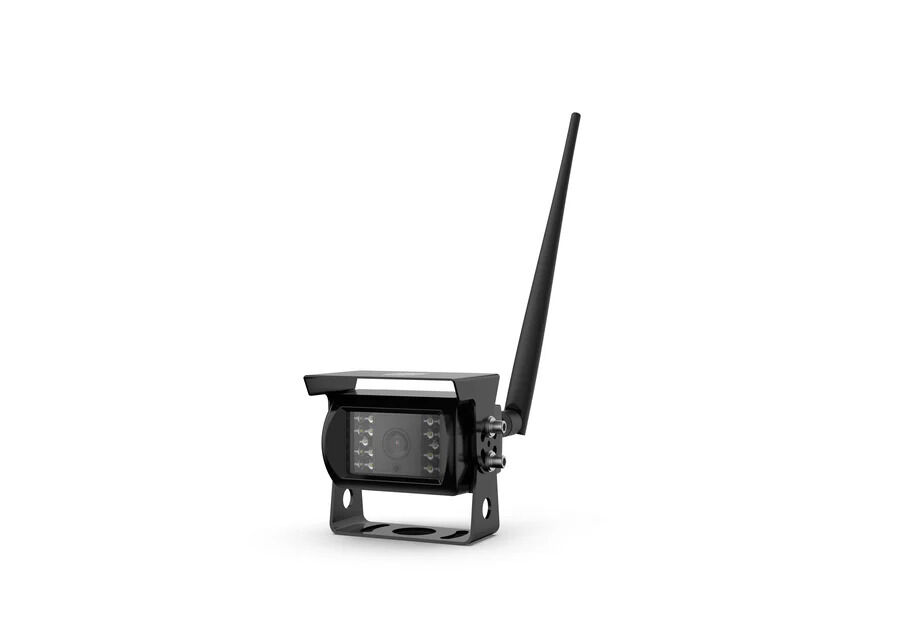

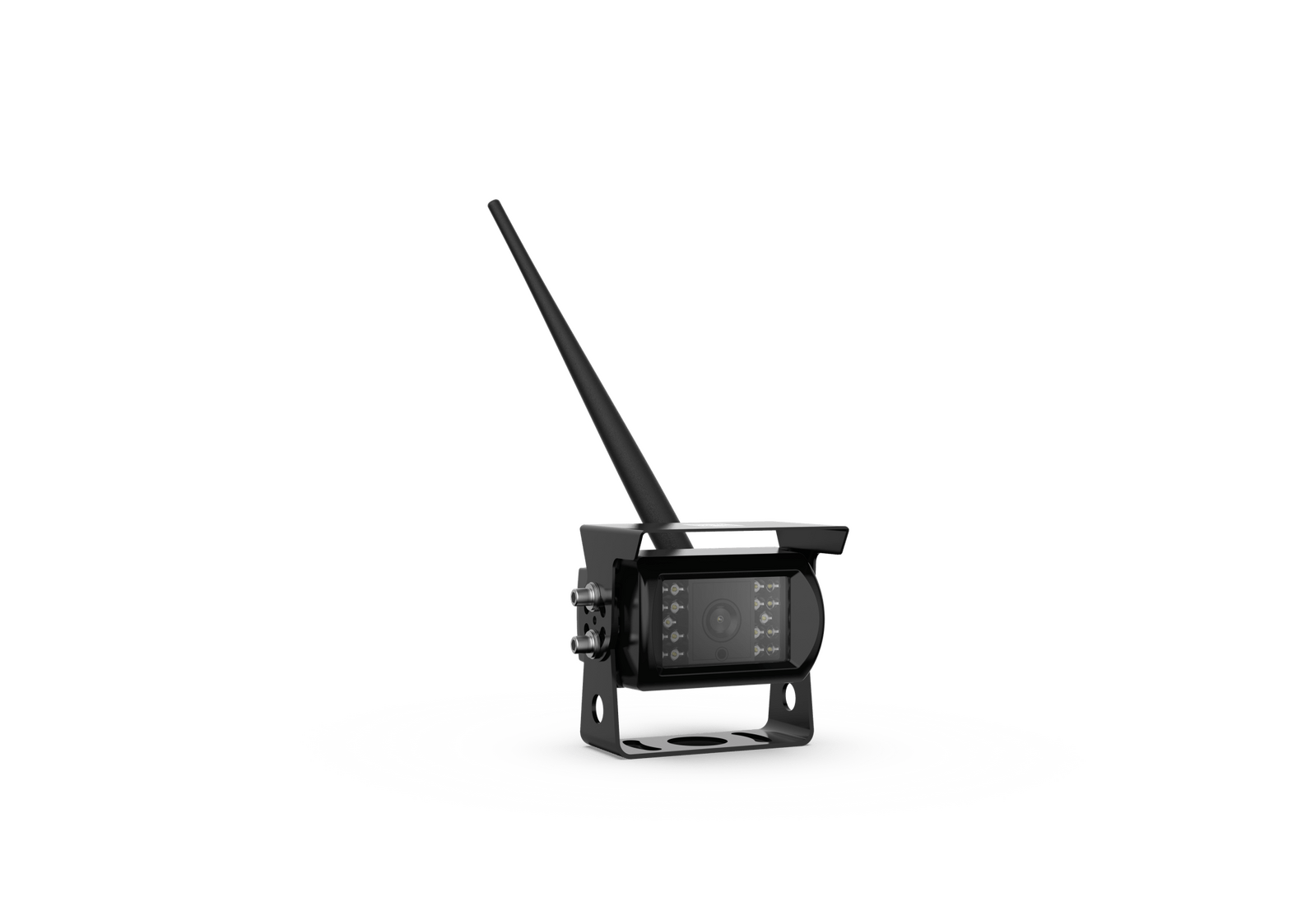

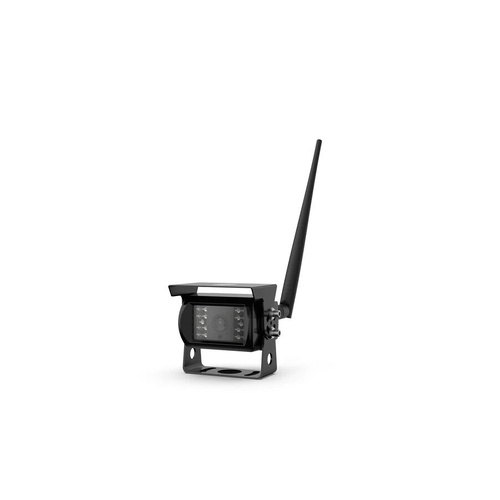

Hema Nav Wireless Rear Camera for HX-2+ GPS Navigator
Brand: Hema Maps
Part number: 9339398012342
DETAILS
Overview
Reverse with confidence, no video cable to run
This wireless rear camera is made for the Hema HX-2+ GPS Navigator. It sends a Full HD picture over Wi-Fi straight to the HX-2+ screen, so you get a clear view behind the vehicle without running a video cable the length of the car.
Made for the Hema HX-2+ GPS Navigator (sold separately). Not sure it suits your setup? contact our team.
Clear view
See more behind you
The 170° wide-angle lens takes in more of the view behind the vehicle, and Full HD 1920 x 1080 resolution keeps the picture sharp. Built-in IR LEDs and a smart IR-cut filter give a clear view at night up to 5 m.
- ✓Full HD 1920 x 1080 resolution
- ✓170° viewing angle
- ✓IR night vision up to 5 m
Easy set-up
Wireless to the HX-2+
Built-in Wi-Fi sends a real-time picture to the HX-2+ with no app needed, at up to 60 m in clear, open ground. Power comes from the vehicle's rear light circuit, so there is no long video cable to route. On the HX-2+ you can turn guidelines and mirror image on or off and rotate the picture.
- ✓No app required with the HX-2+
- ✓Reversing guidelines on/off
- ✓Mirror image and image rotation
- ✓12-32 V power supply
Built tough
Made for corrugations and weather
A stainless steel housing and IP68 dust and water protection suit 4WDs, caravans and trailers. It operates from -20°C to 70°C.
- ✓Stainless steel housing
- ✓IP68 rated
- ✓3-year limited Hema warranty
Frequently asked questions
Which navigators does it work with?
Hema makes it for the HX-2+ GPS Navigator, where it works without an app. Hema also says the live feed can be viewed on a compatible phone or tablet with the free VANKAM app.
Do I need to run a video cable?
No. The picture is sent over Wi-Fi, up to 60 m in clear, open ground. The camera still needs power; Hema says it connects to the vehicle's rear light. If you are unsure about the wiring, have an auto electrician fit it.
Does it work at night?
Yes. Built-in IR LEDs give night vision up to 5 m.
Can I use it on a caravan or trailer?
It runs on 12-32 V and is rated IP68, and the wireless link means no video cable across the hitch. Range depends on obstacles between the camera and the HX-2+.
What is in the box?
The camera, an antenna, and a screws and Allen key set.
Pairs well with
Hema's 4WD and touring navigator that this camera is made for.
$849.95 · View
Features
- ✓Wireless rear camera made for the Hema HX-2+
- ✓Full HD 1920 x 1080 picture
- ✓170° wide-angle lens
- ✓Up to 60 m Wi-Fi range in clear, open ground
- ✓IR night vision up to 5 m with smart IR-cut
- ✓No app needed with the HX-2+
- ✓Guidelines, mirror image and rotation controls
- ✓Stainless steel housing, IP68 rated
- ✓12-32 V power, connects to the rear light circuit
- ✓3-year limited Hema warranty
Specifications
Camera
| Brand | Hema Maps |
| Model | Hema Nav Wireless Rear Camera (HX-2+ accessory) |
| Resolution | 1920 x 1080 (Full HD) |
| Viewing angle | 170° |
| Night vision | IR LEDs, up to 5 m |
| Smart IR-cut | Supported |
| Software features | Guidelines on/off, mirror image on/off, rotate image |
Wireless & power
| Connection | Wi-Fi to HX-2+ (no app required) |
| Transmission range | Up to 60 m (no obstacles) |
| Power supply | 12-32 V |
Build & warranty
| Housing | Stainless steel |
| Waterproof rating | IP68 |
| Operating temperature | -20°C to 70°C |
| Compatibility | Hema HX-2+ GPS Navigator |
| Warranty | 3-year limited warranty |
What's Included
- ✓1 x Hema Nav Wireless Rear Camera
- ✓1 x Antenna
- ✓1 x Screws and Allen key set
Product Details
| SKU | 9339398012342 |
| Barcode # | 9339398012342 |
| Brand | Hema Maps |
