Hema Wi-Fi Reversing Camera for HX-2 & HX-2+ Navigators
Brand: Hema Maps
Part number: 9321438002475
DETAILS
Overview
See what's behind you, on your Hema screen
Hema's Wi-Fi reversing camera works with the HX-2 and HX-2+ navigators to give you a clear view behind the vehicle when you reverse. It helps you spot vehicles, people, pets and other hard-to-see obstacles in the blind zone, with no video cable to run through the vehicle.
Initial installation needs to be wired in by a qualified auto electrician. After that, the camera sends its picture over Wi-Fi. Designed for vehicle use; performance with camper trailers and caravans may vary.
Wireless view
Live picture over Wi-Fi
Built-in Wi-Fi sends the live camera view straight to your HX-2 or HX-2+ navigator's display, up to 30 m away depending on installation. The 140° wide-angle lens shows more of what's behind you when you're in reverse.
- ✓Works with Hema HX-2 and HX-2+ navigators
- ✓140° wide-angle field of view
- ✓Wireless range up to 30 m (installation dependent)
Built tough
Sealed against dust and water
The camera is IP69K rated against dust and high-temperature, high-pressure water, so it copes with dusty tracks and wash-downs. It runs on 9-16 V DC and works from -20°C to 70°C. At 45 x 48 x 15.6 mm and 50 g, it's compact enough to fit neatly at the rear.
- ✓IP69K rated
- ✓0.2 lux low-light rating
- ✓Compact 45 x 48 x 15.6 mm body
Frequently asked questions
Which navigators does it work with?
The Hema HX-2 and HX-2+ navigators. Hema also lists the Visada app for compatible iPhone and iPad devices; the app is not currently available for Android.
Is it completely wireless?
The video is wireless, but the camera needs power. The initial install must be wired by a qualified auto electrician, then the camera operates over Wi-Fi.
Will it work on my caravan?
It is designed for vehicle use, and Hema notes performance with camper trailers and caravans may vary. Obstructions can affect the Wi-Fi signal.
What is the range?
Up to 30 m, depending on installation and surroundings.
Not sure it suits your setup?
Contact our team with your navigator model and vehicle and we can help.
Pairs well with
Hema's 4WD and touring GPS with offline maps and track guidance.
$849.95 · View
Features
- ✓Works with Hema HX-2 and HX-2+ navigators
- ✓Live picture sent over built-in Wi-Fi
- ✓140° wide-angle field of view
- ✓Wireless range up to 30 m (installation dependent)
- ✓IP69K rated against dust and high-pressure water
- ✓0.2 lux low-light rating
- ✓Runs on 9-16 V DC
- ✓Compact 45 x 48 x 15.6 mm, 50 g
Specifications
Camera
| Brand | Hema Maps |
| Suits | Hema HX-2 and HX-2+ navigators |
| Field of view | 140° |
| Resolution | VGA |
| Frame rate | 30 fps |
| Latency | 120 ms |
| Power-on time | 1.0 s |
| Video system | PAL |
| Video codec | MPEG4 |
| Light rating | 0.2 lux |
Wireless
| Connection | Wi-Fi 802.11 g/n, 2412-2483.5 MHz, CH1 to CH13 |
| Range | Up to 30 m (varies with installation) |
Power & build
| Power supply | 9-16 V DC, 200 mA |
| Waterproof rating | IP69K |
| Operating temperature | -20°C to 70°C |
| Storage temperature | -30°C to 85°C |
| Camera size | 45 x 48 x 15.6 mm |
| Camera weight | 50 g |
| Installation | Initial wiring by a qualified auto electrician |

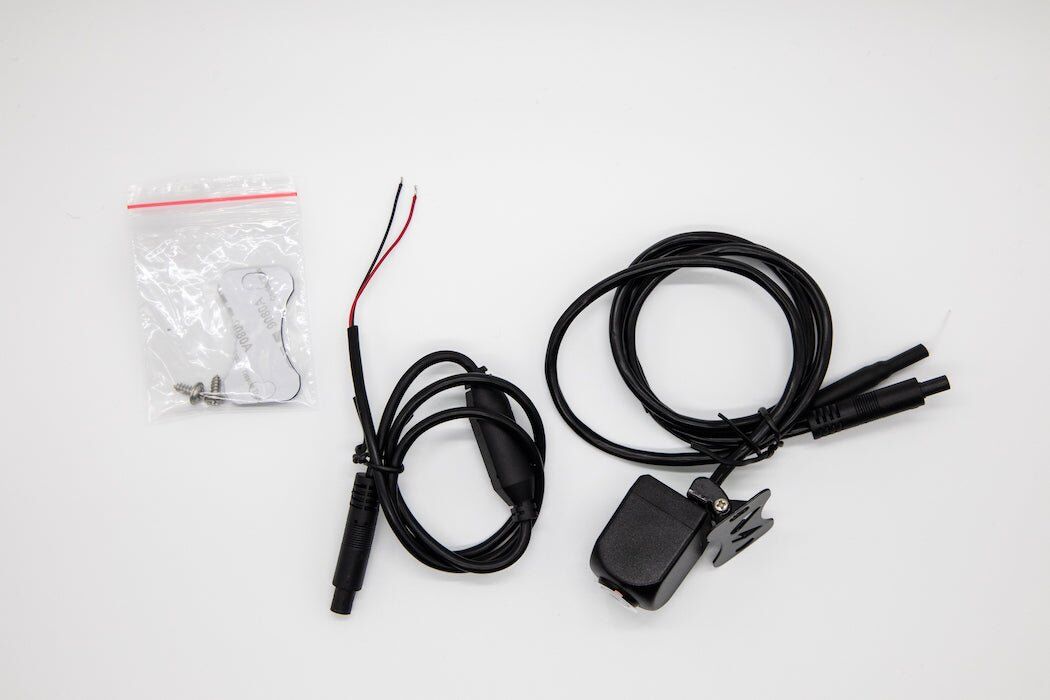

What's Included
- ✓1 x Hema Wi-Fi reversing camera
Product Details
| SKU | 9321438002475 |
| Barcode # | 9321438002475 |
| Brand | Hema Maps |
| Shipping Weight | 0.8300kg |
