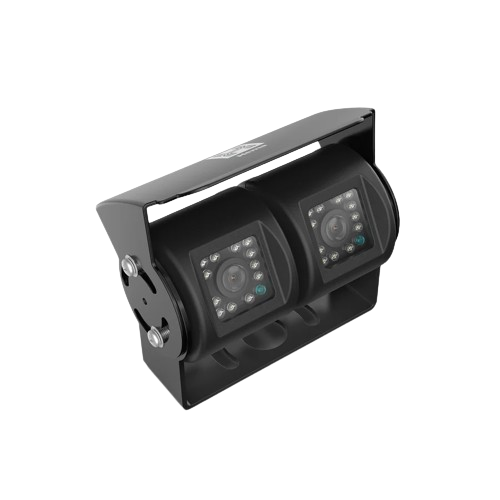

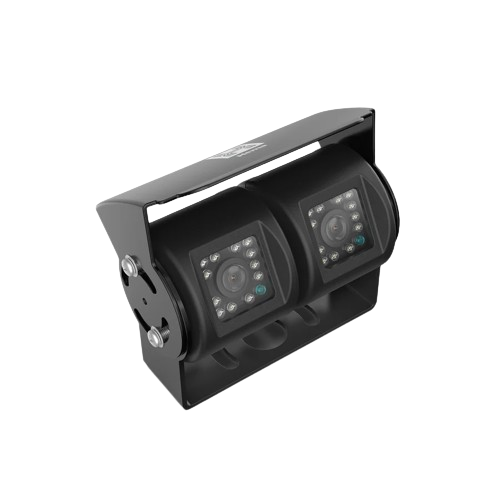

Hema HM-CAM202 Heavy Duty Dual Lens Reversing Camera (Camera Only)
Brand: Hema Maps
Part number: 9339398012977
DETAILS
Overview
Two lenses for tall and wide vehicles
The HM-CAM202 puts two adjustable lenses in one heavy-duty housing. Aim one wide at the ground behind you and the other further back, for better coverage on caravans, motorhomes, trucks and other tall or wide vehicles. It is made to work with the Hema HM-MNT AHD monitor.
Camera only. Hema lists the HM-CAM202 as compatible with the HM-MNT AHD monitor only (sold separately). Questions? contact our team.
Dual lens
See near and far at once
Lens 1 has a wide 120° field of view for the area right behind you. Lens 2 has a 60° view for a longer look down the road. Both are adjustable, which helps with tall vehicles and trailers.
- ✓Adjustable 120° lens and 60° lens
- ✓800 TVL resolution on both lenses
- ✓Reversing guidelines and mirror image mode with the HM-MNT
24-hour vision
Clear day and night

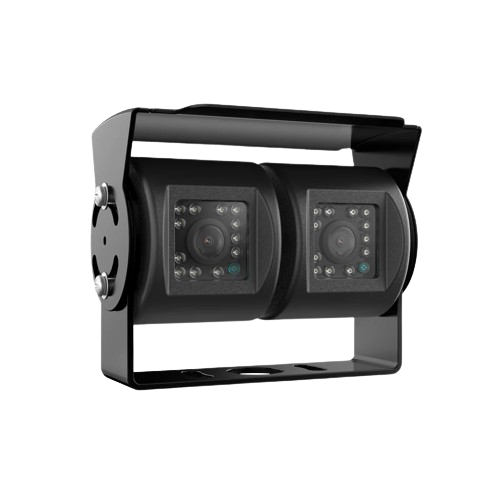

Built-in high-powered IR LEDs give a clear picture at night and in low light, down to 0.0 lux, so backing into a dark site is easier.
- ✓High-powered IR LEDs
- ✓Minimum illumination 0.0 lux
Built tough
Heavy-duty and weather-sealed
A sturdy metal housing rated IP69K handles rain, dust and wash-downs. A 20 m dual channel cable is included for the long run on a big rig.
- ✓Metal housing rated IP69K
- ✓20 m dual channel cable supplied
- ✓Screws and Allen key included
- ✓3-year limited Hema warranty
Frequently asked questions
Which monitor does it work with?
Hema lists the HM-CAM202 as compatible with the Hema HM-MNT AHD monitor only. The monitor is sold separately.
Why two lenses?
The 120° lens covers the ground close behind the vehicle and the 60° lens looks further back. Both are adjustable, which suits tall and wide vehicles and towing.
Can I run it to a caravan or trailer?
Yes, with Hema WOZA cables. The HM-WOZ2 and HM-WOZ4 list the HM-CAM202 as compatible, used with the HM-WOZCBL coiled trailer cable.
What voltage does it need?
Hema lists a nominal 12 V. If your vehicle is 24 V, contact our team before you order.
How is it installed?
A 20 m dual channel cable, screws and an Allen key are included. Hema advises the first install should be wired by a qualified auto electrician.
Pairs well with
The 177 mm touchscreen monitor this camera is made for. Up to four cameras.
$499.00 · View
WOZA connector cable for running up to 2 cameras to a caravan or trailer.
$129.95 · View
Coiled 2 m WOZA cable that joins the vehicle and trailer connectors.
$129.95 · View
Features
- ✓Two adjustable lenses: 120° and 60°
- ✓Better coverage for tall and wide vehicles and trailers
- ✓800 TVL resolution on both lenses
- ✓High-powered IR LEDs for night vision
- ✓Reversing guidelines and mirror image mode (with HM-MNT)
- ✓Sturdy metal housing rated IP69K
- ✓20 m dual channel cable supplied
- ✓Made for the Hema HM-MNT AHD monitor
- ✓3-year limited Hema warranty
Specifications
Camera
| Brand | Hema Maps |
| Model | HM-CAM202 |
| Lenses | 2, adjustable |
| Field of view | Lens 1: 120°, Lens 2: 60° |
| Resolution | 800 TVL (both lenses) |
| Signal system | NTSC |
| Minimum illumination | 0.0 lux |
| Night vision | High-powered IR LEDs |
Build & power
| Housing | Metal, heavy duty |
| Waterproof rating | IP69K |
| Operating temperature | -30°C to 75°C |
| Voltage | 12 V nominal |
| Cable | 20 m dual channel cable (supplied) |
| Compatibility | Hema HM-MNT AHD monitor only |
| Monitor | Not included |
| Warranty | 3-year limited warranty |
What's Included
- ✓1 x Hema HM-CAM202 dual lens camera
- ✓1 x 20 m dual channel cable
- ✓1 x Screws and Allen key
- ✓1 x User manual
Product Details
| SKU | 9339398012977 |
| Barcode # | 9339398012977 |
| Brand | Hema Maps |
| Shipping Weight | 1.9700kg |
