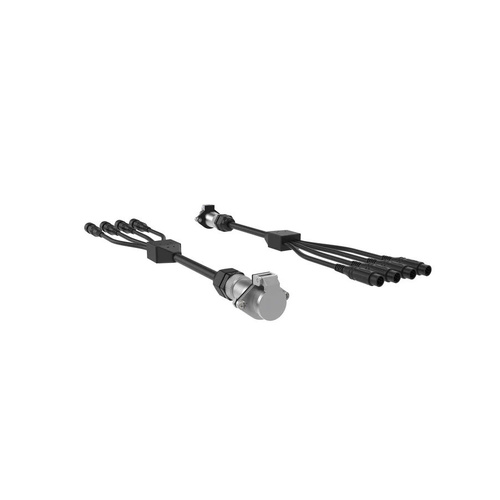

Hema HM-WOZ4 4-Channel Heavy Duty WOZA Connector Cable
Brand: Hema Maps
Part number: 9339398013011
DETAILS
Overview
Hitch up your cameras as easily as your van

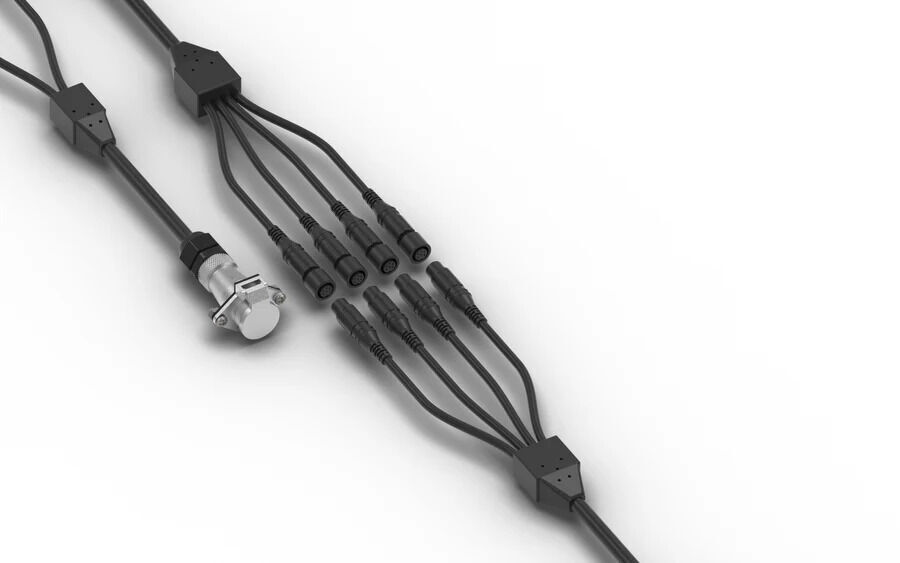

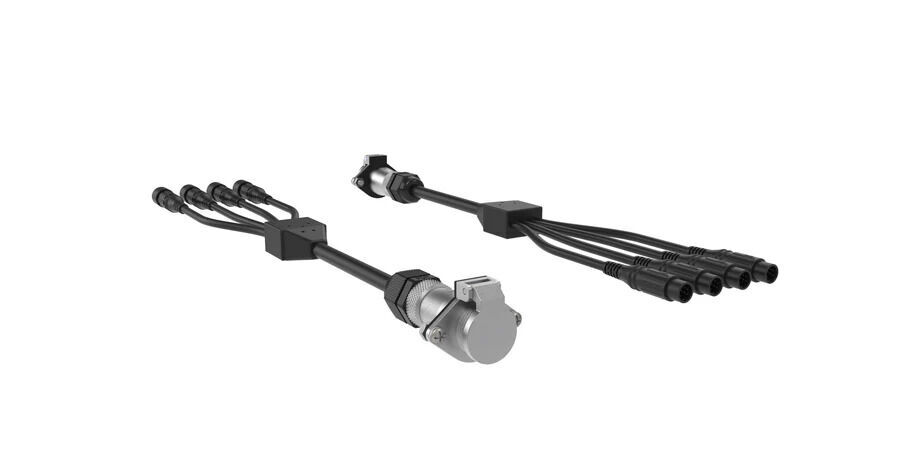

The HM-WOZ4 is a heavy-duty WOZA connector cable for running up to 4 Hema cameras from a caravan, trailer or boat back to your vehicle. Used with the HM-WOZCBL coiled WOZA cable, it gives a durable, reliable camera connection between the tow vehicle and whatever you are towing.
Used together with the HM-WOZCBL coiled WOZA cable (sold separately). Hema lists it for the HM-CAM15 and HM-CAM202 cameras and HM-MNT monitor. Not sure what you need? contact our team.
Made for towing
Camera connections that stay secure
The heavy-duty gold-plated 6-pin connectors keep camera connections firmly secured, even when towing caravans, trailers or boats over rough roads. The cable is dust and waterproof for all weather.
- ✓Heavy-duty gold-plated 6-pin connectors
- ✓Dust and waterproof
- ✓12 V and 24 V compatible
How it fits together

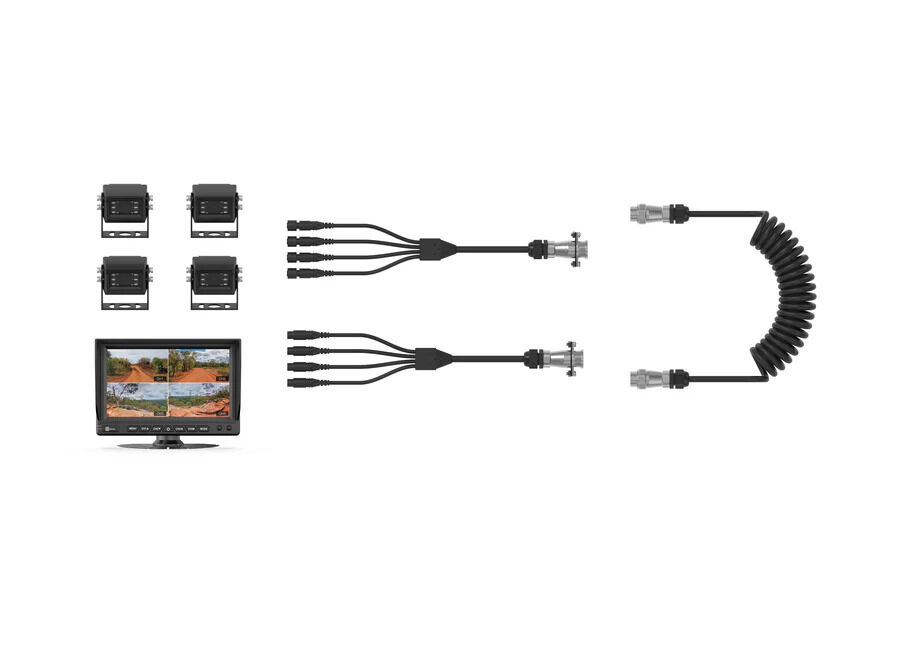

A complete Hema camera system
Up to four Hema cameras plug into the HM-WOZ4. The coiled HM-WOZCBL cable bridges the gap between the vehicle and trailer, and the HM-MNT monitor shows all four on one screen.
- ✓Supports up to 4 cameras
- ✓Works with CVBS and AHD cameras
- ✓Compatible with HM-CAM15, HM-CAM202 and HM-MNT
Frequently asked questions
What do I need with it?
Hema says it is used with the HM-WOZCBL coiled WOZA cable. Hema lists it as compatible with the HM-CAM15 and HM-CAM202 rear cameras and the HM-MNT 4-channel monitor.
How many cameras can it carry?
Up to 4 cameras. If you only need two, see the HM-WOZ2.
Will it work on a 24 V vehicle?
Yes. It is 12 V and 24 V compatible.
Is it waterproof?
Hema describes it as dust and waterproof, made to work in all weather conditions.
Pairs well with
Coiled 2 m WOZA cable that links the vehicle and trailer connectors.
$129.95 · View
The 177 mm touchscreen monitor that shows up to four cameras.
$499.00 · View
The 2-channel version of this WOZA connector cable.
$129.95 · View
Features
- ✓Supports up to 4 cameras
- ✓Used with the HM-WOZCBL coiled WOZA cable
- ✓Heavy-duty gold-plated 6-pin connectors
- ✓CVBS and AHD camera compatible
- ✓12 V and 24 V compatible
- ✓Dust and waterproof
- ✓For caravans, trailers, boats and other towing gear
- ✓Compatible with HM-CAM15, HM-CAM202 and HM-MNT
- ✓3-year limited Hema warranty
Specifications
Connector cable
| Brand | Hema Maps |
| Model | HM-WOZ4 |
| Channels | 4 (up to 4 cameras) |
| Connector | Gold-plated 6-pin |
| Camera technology | CVBS / AHD |
| Voltage | 12 V / 24 V |
| Weather sealing | Dust and waterproof |
| Used with | HM-WOZCBL coiled WOZA cable |
| Compatibility | HM-CAM15, HM-CAM202, HM-MNT |
| Warranty | 3-year limited warranty |
What's Included
- ✓1 x Hema HM-WOZ4 4-channel WOZA connector cable
- ✓1 x User manual
Product Details
| SKU | 9339398013011 |
| Barcode # | 9339398013011 |
| Brand | Hema Maps |
| Shipping Weight | 0.9300kg |
