Hema HM-MNT 177 mm AHD Quad Display Touchscreen Reversing Monitor
Brand: Hema Maps
Part number: 9339398012984
DETAILS
Overview
All your cameras on one screen
The HM-MNT is a 177 mm touchscreen reversing monitor that takes up to four cameras. Show one, two or all four at once for all-round awareness on a caravan, camper trailer, fifth wheeler or truck. It is designed for Hema's HM-CAM15 and HM-CAM202 rear cameras and Hema WOZA cables.
Monitor only. Cameras are sold separately. Hema advises the first install should be wired by a qualified auto electrician.
Quad display
Up to four cameras, one glance
Choose single, dual or quad view. With four cameras fitted you can cover all around the vehicle, and the monitor switches automatically when a camera's trigger wire is powered, such as when you select reverse.
- ✓4 camera inputs with built-in quad split
- ✓Selectable single, dual or quad view
- ✓Trigger priority CH1 to CH4, adjustable 0-20 second delay
- ✓Mirror image and image rotation
Clear screen
Bright and easy to read
The 177 mm IPS touchscreen runs at 1024 x 600 with 600 cd/m² brightness, and a detachable sun visor cuts glare in bright conditions. It accepts AHD (720p, 960p, 1080p) and CVBS cameras, with PAL/NTSC auto detection.
- ✓177 mm IPS touchscreen, 1024 x 600
- ✓600 cd/m² LED backlight
- ✓AHD and CVBS camera compatible
- ✓Detachable sun visor
Easy to fit

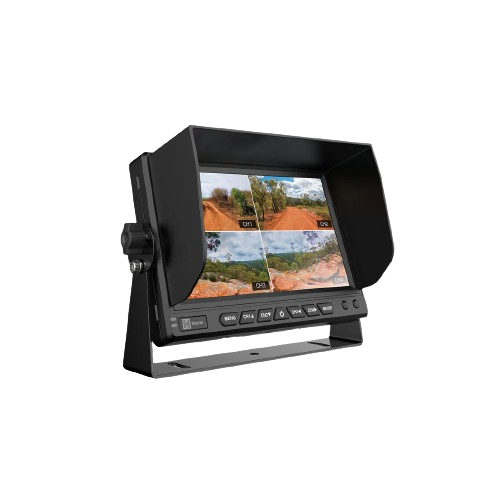

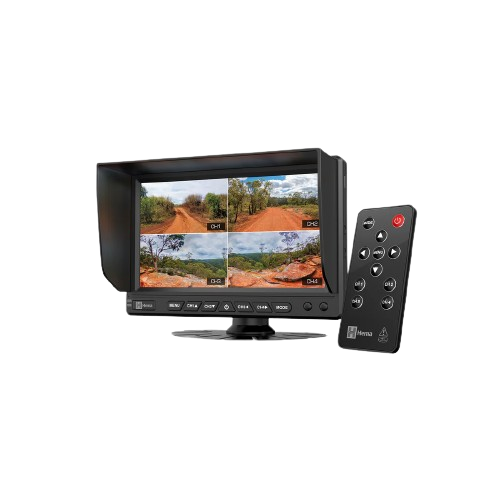

Two mounts and a remote
A U-shape bracket and a 3M adhesive dash mount give you two ways to fit it, and a remote control means you can change views without reaching across a big dash. Gold-plated 6-pin connectors keep camera connections secure.
- ✓U-shape bracket and 3M dashboard mount included
- ✓Remote control included
- ✓Gold-plated 6-pin camera connectors
- ✓3-year limited Hema warranty
Frequently asked questions
Which cameras does it work with?
Hema designed it for the HM-CAM15 and HM-CAM202 rear cameras. It accepts AHD (720p, 960p, 1080p) and CVBS cameras. For other cameras, contact our team to check the connector.
Does it come with a camera?
No. It is the monitor only, with remote, sun visor, two mounts and a wire harness.
Will it run on 24 V?
Yes. The input range is 12-32 V DC, so it suits cars, caravans and trucks.
Can I connect cameras on my caravan or trailer?
Yes. Hema WOZA cables (HM-WOZ2, HM-WOZ4 and the HM-WOZCBL coiled cable) are made for running Hema cameras across to a trailer.
How big is the screen?
It is a 177 mm diagonal IPS touchscreen with 1024 x 600 resolution.
Pairs well with
Heavy-duty 150° rear camera with a 10 m cable and 6-pin connector.
$199.95 · View
Dual lens camera (120° and 60°) for tall and wide vehicles.
$299.95 · View
WOZA connector cable for up to 4 cameras on a caravan or trailer.
$169.95 · View
Features
- ✓177 mm IPS touchscreen, 1024 x 600 resolution
- ✓Up to four cameras with built-in quad split
- ✓Selectable single, dual or quad view
- ✓AHD (720p/960p/1080p) and CVBS compatible
- ✓Mirror image and image rotation
- ✓Detachable sun visor
- ✓Remote control included
- ✓U-shape bracket and 3M dash mount included
- ✓12-32 V DC for cars, caravans and trucks
- ✓3-year limited Hema warranty
Specifications
Display
| Screen | 177 mm diagonal AHD IPS touchscreen |
| Resolution | 1024 x 600 |
| Brightness | 600 cd/m² |
| Backlight | LED |
| Viewing angle | 90° left/right/up/down |
| Menu language | English |
Cameras & video
| Camera inputs | 4 |
| View modes | Single, dual or quad |
| Camera compatibility | AHD (720p, 960p, 1080p) / CVBS |
| Video system | PAL/NTSC auto |
| Trigger priority | CH1 > CH2 > CH3 > CH4 |
| Trigger | 12-32 V DC, adjustable delay 0-20 seconds |
| Mirror image | Mirror image and rotation |
| Designed for | Hema HM-CAM15 and HM-CAM202 |
Power & build
| Brand | Hema Maps |
| Model | HM-MNT |
| Input voltage | 12-32 V DC |
| Input current | 700 mA at 12 V DC |
| Operating temperature | -10°C to 65°C |
| Sun visor | Detachable |
| Remote control | Included |
| Warranty | 3-year limited warranty |
What's Included
- ✓1 x Hema HM-MNT monitor
- ✓1 x Remote control
- ✓1 x U-shape mounting bracket
- ✓4 x U-shape bracket mounting bolts
- ✓1 x Detachable sun visor
- ✓1 x 3M adhesive dashboard mount
- ✓1 x Wire harness
- ✓1 x User manual
Product Details
| SKU | 9339398012984 |
| Barcode # | 9339398012984 |
| Brand | Hema Maps |
| Shipping Weight | 1.6400kg |
