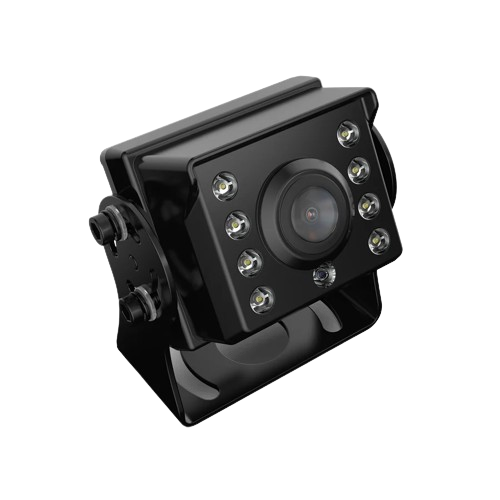

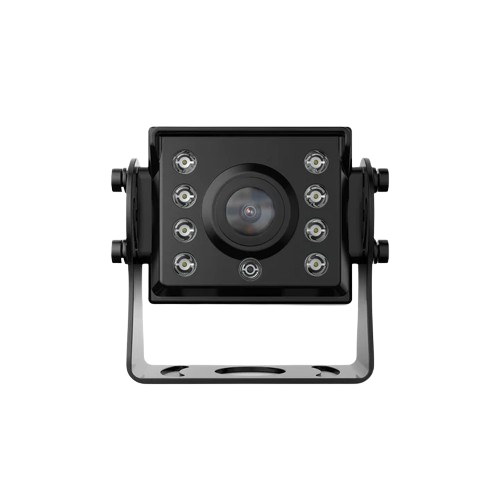

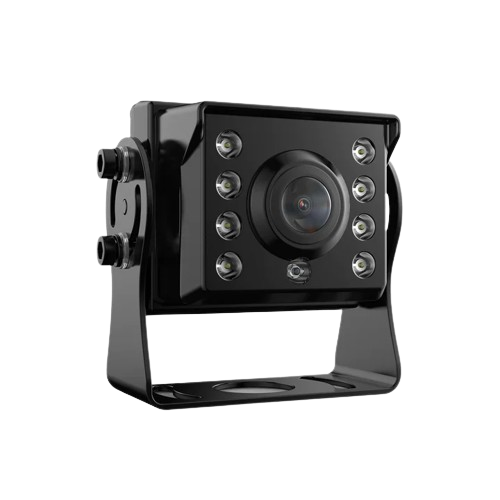

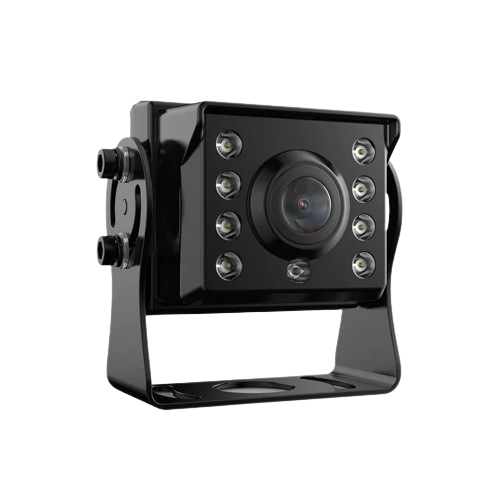

Hema HM-CAM10 Heavy Duty AHD 1080p Rear Camera (Camera Only)
Brand: Hema Maps
Part number: 9339398012953
DETAILS
Overview
A sharper view behind, day and night
The HM-CAM10 is a heavy-duty AHD rear camera designed to work with Hema smart mirror and monitor DVRs. 1080p Analogue High Definition gives a crisp picture, the 120° lens shows more of what is behind you, and eight IR LEDs keep it clear after dark.
Camera only. It plugs into a compatible Hema smart mirror or monitor DVR (sold separately) and suits 12 V vehicles. Not sure what will work with your screen? contact our team.
Clear picture
Twice the detail of standard definition
1080p AHD (Analogue High Definition) doubles the resolution of standard-definition video, so number plates, kerbs and tow balls are easier to make out. The wide 120° diagonal view takes in more of the road and objects behind the vehicle.
- ✓1080p AHD resolution
- ✓120° diagonal field of view
- ✓Built-in G-sensor
24-hour vision
Clear after dark
Eight high-powered IR LEDs light up the scene behind you, so the picture stays clear at night and in low light, right down to 0 lux.
- ✓Eight high-powered IR LEDs
- ✓Minimum illumination 0 lux
- ✓Wired for a reliable connection
Built tough
Heavy-duty metal housing
The sturdy metal housing is rated IP69K for dust and water, so it handles rain, mud and wash-downs. The supplied 2.5 mm connector plugs into the smart mirror monitor, and the 8 m rear camera cable makes the run to the front simpler.
- ✓IP69K rated metal housing
- ✓8 m rear camera cable supplied
- ✓3-year limited Hema warranty
Frequently asked questions
Does it come with a screen?
No. This is the camera only. Hema says it is compatible with Hema mirror/monitor DVRs only, and the compatible Hema monitor is sold separately.
Will it work with the HM-MNT monitor?
Hema does not list the HM-CAM10 as compatible with the HM-MNT, which is designed for the HM-CAM15 and HM-CAM202. Please contact our team before you order.
Is it suitable for 24 V trucks?
Hema lists it for compatible 12 V vehicles only.
How is it installed?
It comes with an 8 m rear camera cable and a 2.5 mm connector. Hema advises the first install should be wired by a qualified auto electrician.
Is it waterproof?
Yes. The metal housing is rated IP69K against dust and high-pressure water.
Pairs well with
Universal stainless steel camera with a 170° view and 12/24 V support.
$129.95 · View
4K front and 1080p rear dash camera with a built-in screen.
$399.95 · View
Discreet 2K front and 1080p rear dash camera with GPS and Wi-Fi.
$349.95 · View
Features
- ✓1080p AHD resolution for a sharp picture
- ✓Wide 120° diagonal view
- ✓Eight high-powered IR LEDs for night vision
- ✓Minimum illumination 0 lux
- ✓Built-in G-sensor
- ✓Heavy-duty metal housing rated IP69K
- ✓8 m rear camera cable supplied
- ✓2.5 mm connector for Hema smart mirror monitors
- ✓3-year limited Hema warranty
Specifications
Camera
| Brand | Hema Maps |
| Model | HM-CAM10 |
| Resolution | 1080p AHD |
| Signal system | PAL |
| Field of view | 120° diagonal |
| Minimum illumination | 0 lux |
| Night vision | 8 x IR LEDs |
Build & power
| Housing | Metal, heavy duty |
| Waterproof rating | IP69K |
| Operating temperature | -20°C to 65°C |
| Voltage | 12 V |
| Cable | 8 m rear camera cable (supplied) |
| Connector | 2.5 mm |
| Compatibility | Hema mirror/monitor DVRs only |
| Monitor | Not included |
| Warranty | 3-year limited warranty |
What's Included
- ✓1 x Hema HM-CAM10 rear camera
- ✓1 x 8 m rear camera cable
- ✓1 x Allen key
- ✓1 x User manual
Product Details
| SKU | 9339398012953 |
| Barcode # | 9339398012953 |
| Brand | Hema Maps |
| Shipping Weight | 0.4300kg |
